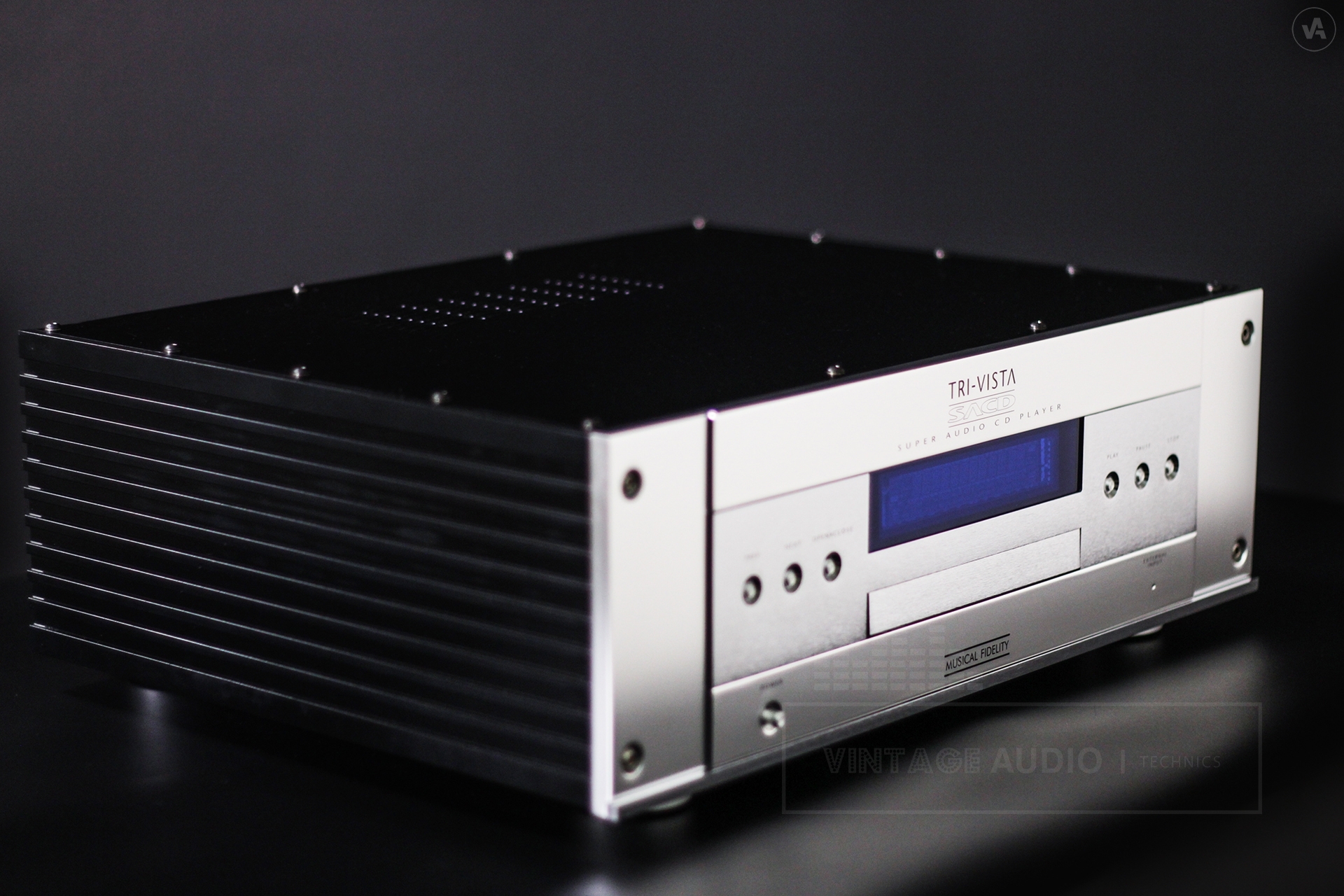

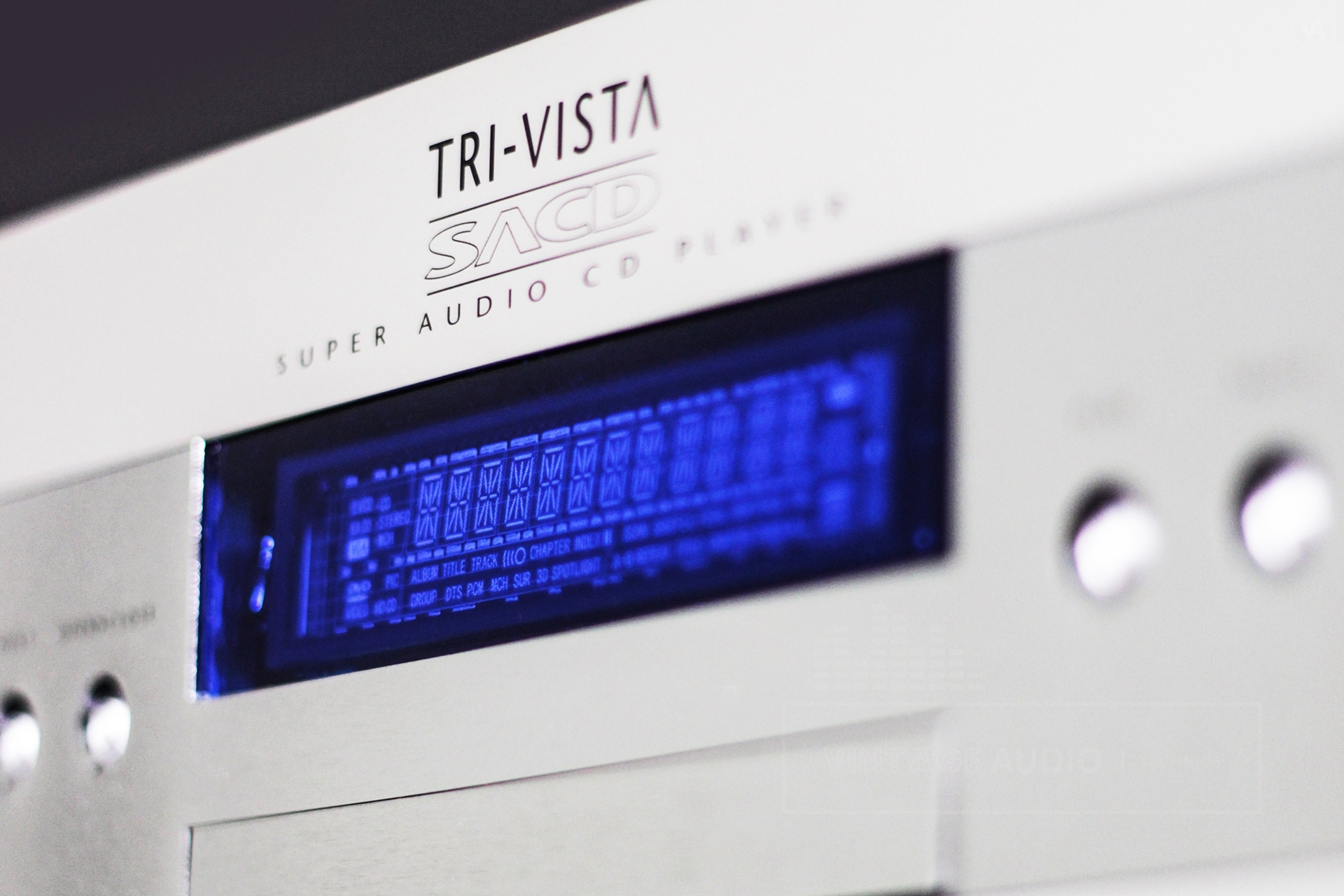

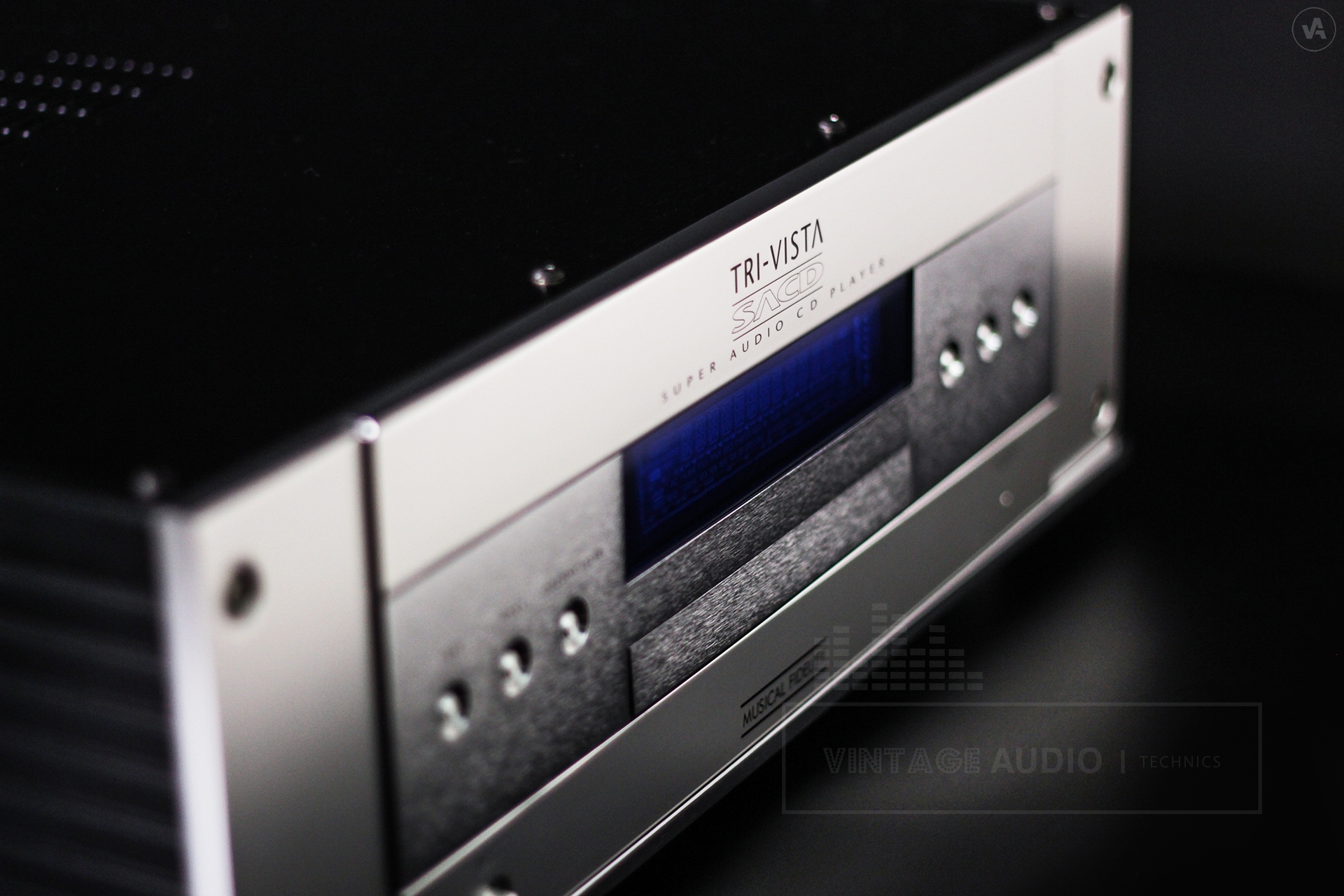

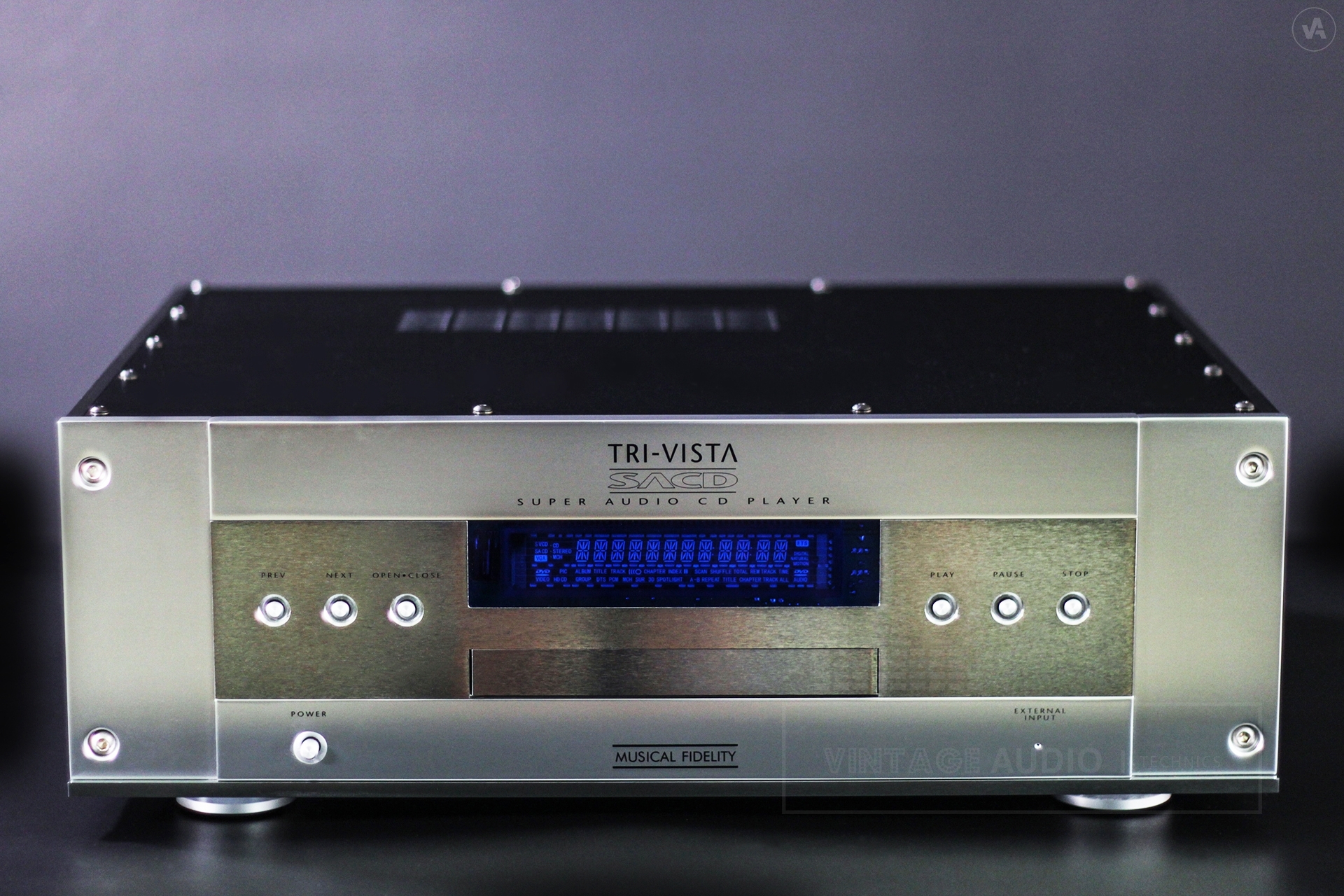

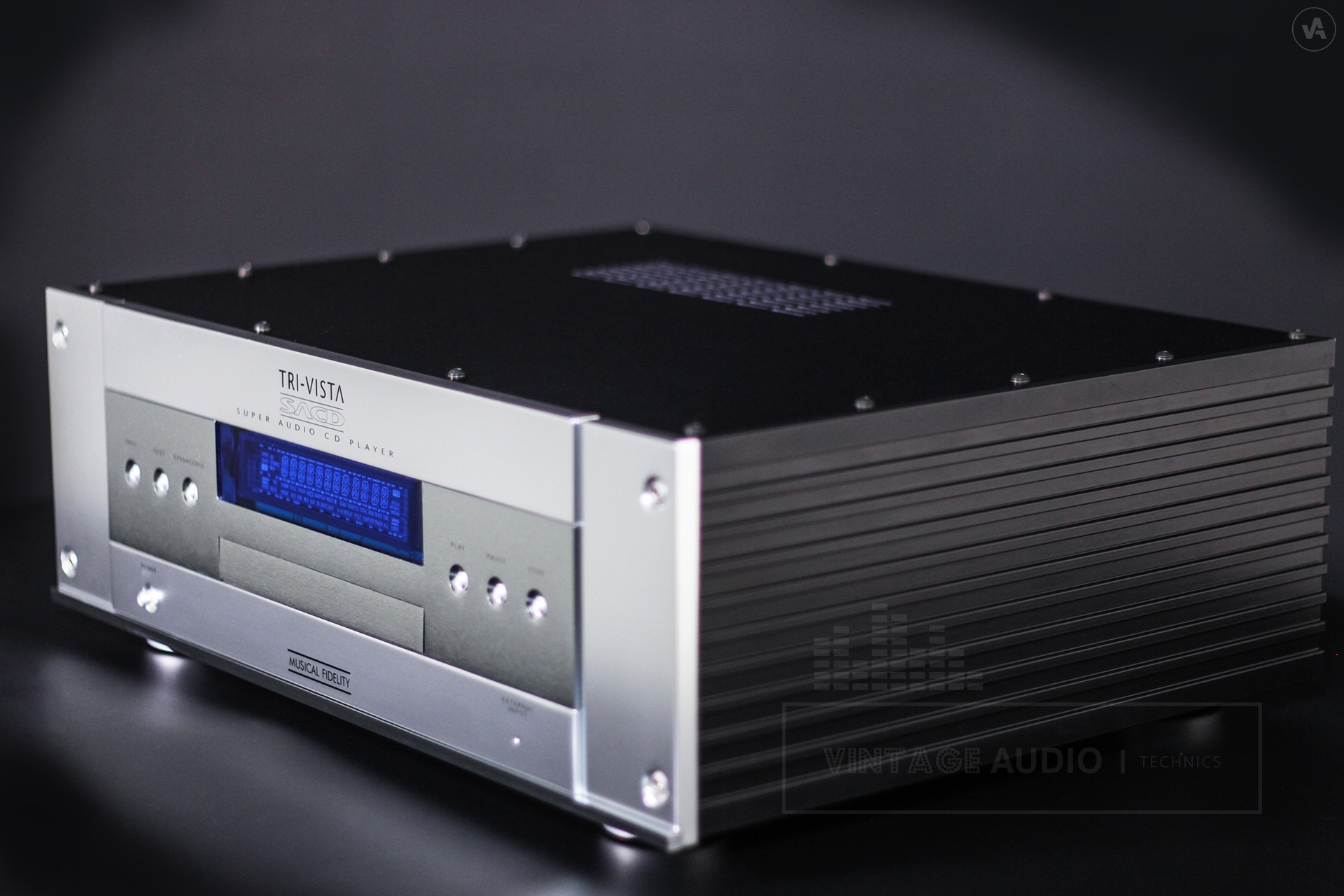

Musical Fidelity TRI-VISTA SACD
Type: | SACD player |
DAC architecture: | 24 bit Delta-Sigma (Bitstream) Dual differential 8x oversampling |
Disc mechanism: | Philips |
Up sampling: | 192kHz |
Analog output impedance: | 50Ω |
[SACD] | Frequency response: 10Hz to 20kHz, ref. 1kHz, +0 -0.1dB 10Hz to 30kHz, ref. 1kHz, +0 -0.3dB 10Hz to 40kHz, ref. 1kHz, +0 -1.6dB 10Hz to 50kHz, ref. 1kHz, +0 -4.8dB Signal / noise ratio (Digital mute): >110dB “A” weighted Total harmonic distortion: <0.001% at 1kHz Channel separation: >98dB, 10Hz to 20kHz Linearity error, 1kHz: 0dB at -100dB 0.2dB at -110dB Audio output at digital 0dB level: 2.4V RMS at 1kHz nominal |
[CD or external digital input] | Frequency response: 10Hz to 20kHz, ref. 1kHz, +0 -0.05dB Signal / noise ratio: >110dB “A” weighted Total harmonic distortion: <0.002%, 10Hz to 20kHz Channel separation: >90dB, 10Hz to 20kHz Linearity error, 1kHz: 0dB at -80dB, 0.7dB at -90dB Audio output at digital 0dB level: 2.35V RMS at 1kHz nominal Jitter: 150pS Digital inputs: 1 optical (Toslink) 1 S/PDIF (RCA connector) Outputs: 1 pair RCA connectors (Analog) 1 optical (Toslink) 1 S/PDIF (RCA connector) |
Standard accessories: | IEC type mains lead (16 Amp type) Remote control (Tri-Vista type) Two batteries (Type SUM-4, AAA, LR03) |
Power requirement: | AC 230V, 50/60Hz |
Power consumption: | 50W |
Dimensions (W x H x D): | 480 x 165 x 380mm |
Weight: | 23 kg (Unboxed) 25kg (In shipping carton) |
Year: | 2003 |
