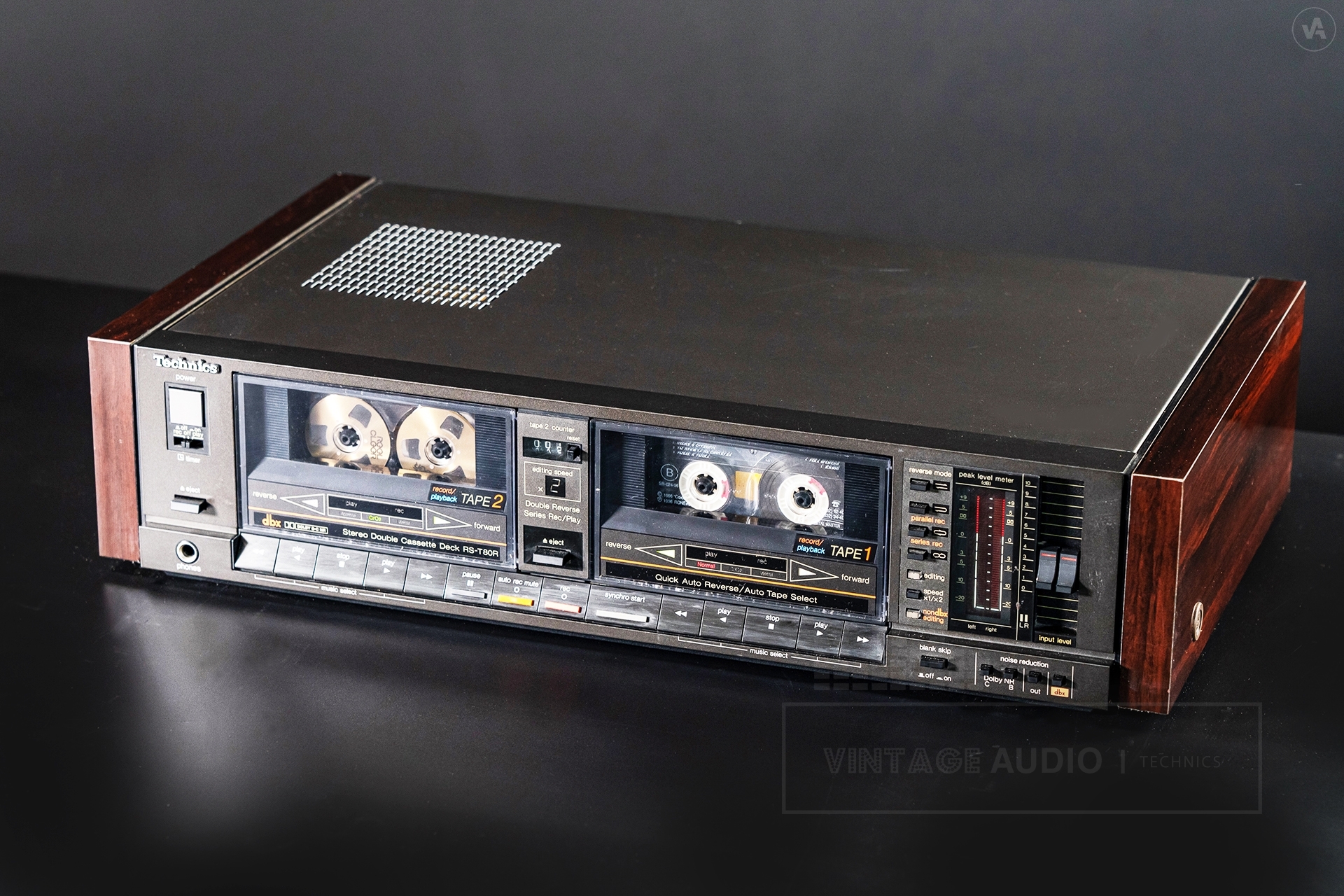

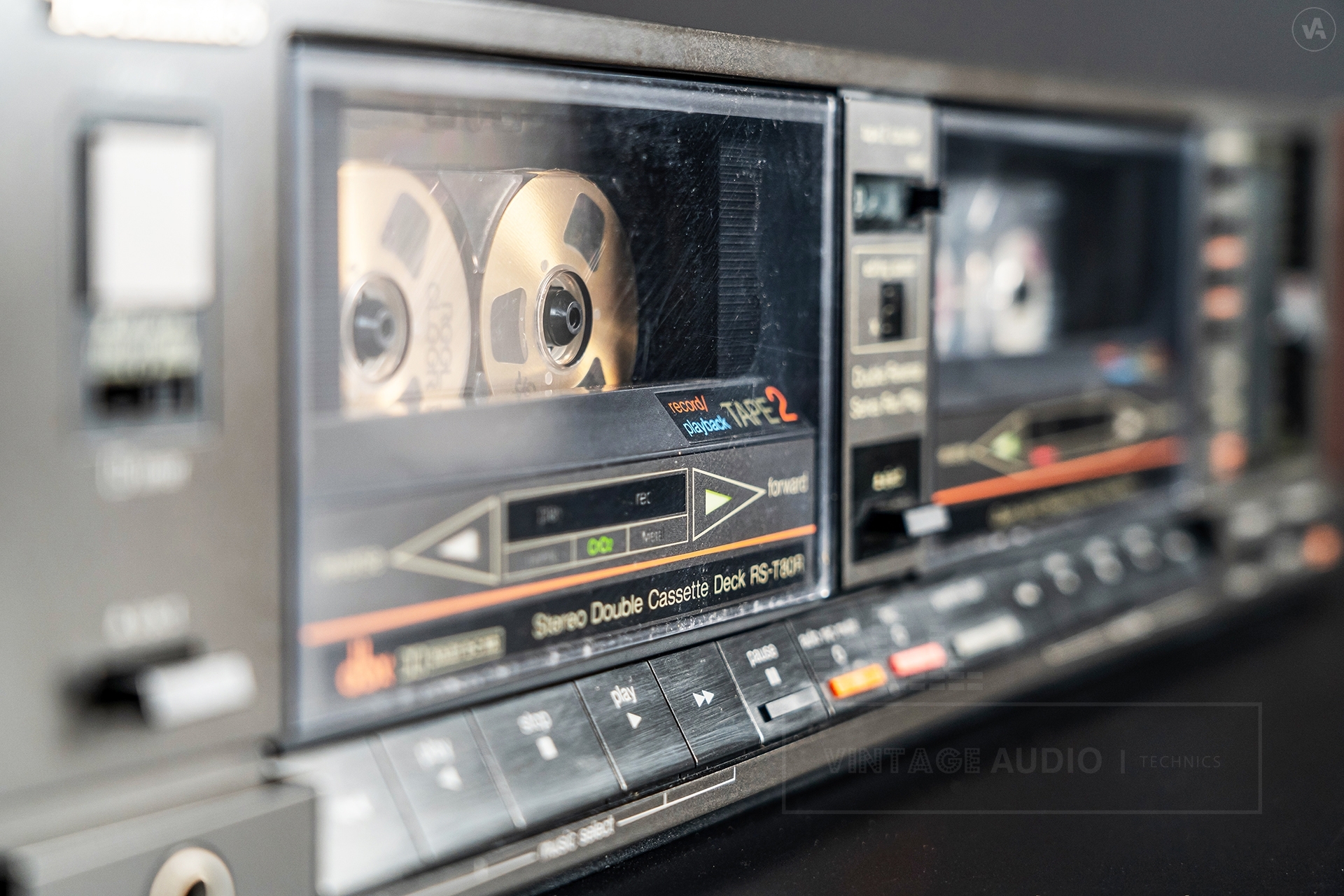

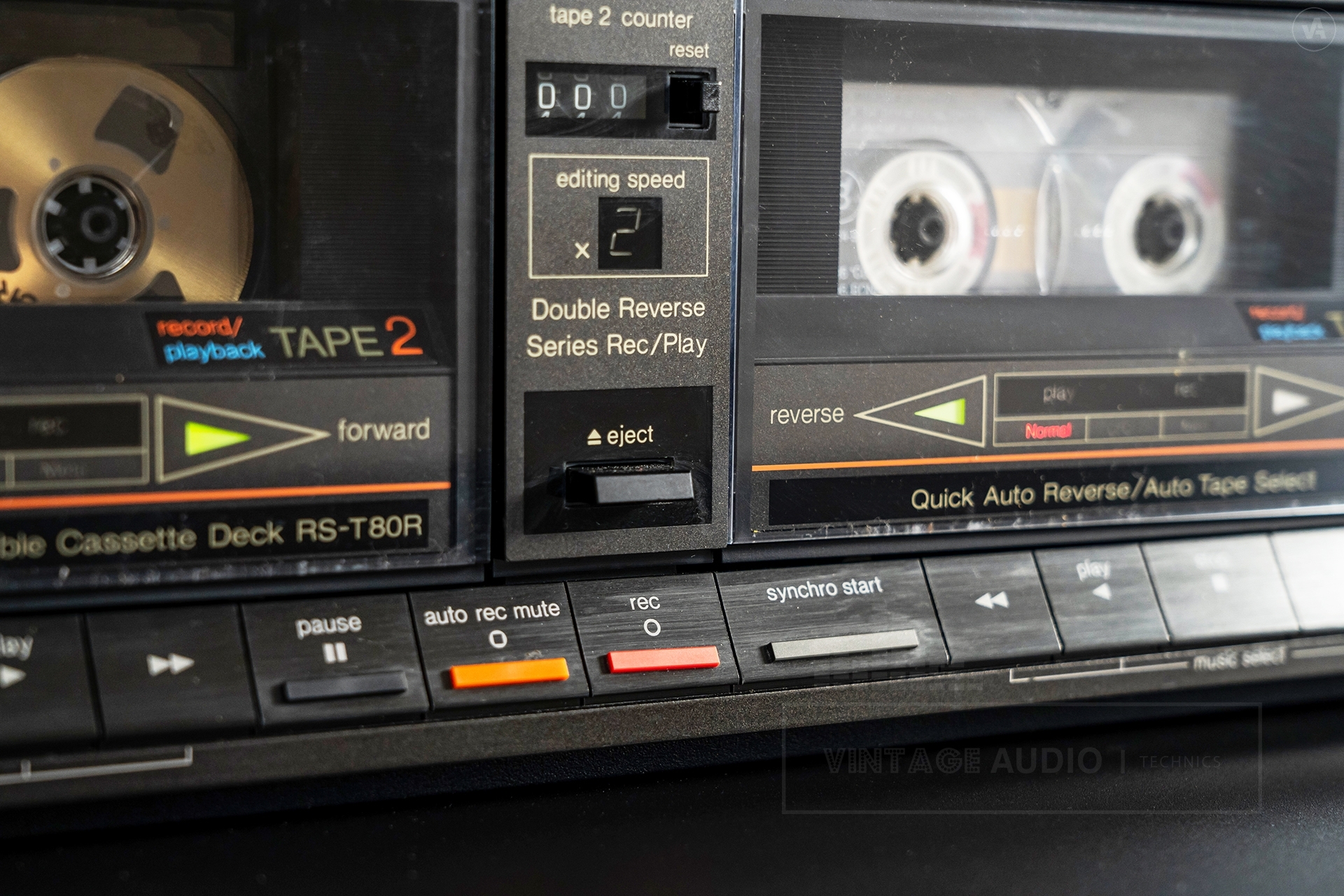

TECHNICS RS-T80R
Type: | Stereo cassette deck |
Track system: | 4-track, 2-channel |
[Heads] | |
Tape 1: | Rec / Play (MX head) |
Tape 2: | Rec / Play (MX head) |
Erasing: | Double-gap ferrite head |
[Motors] | |
Tape 1 (For Capstan / Reel table drive): | 2 speed electronically controlled DC motor |
Tape 2 (For Capstan / Reel table drive): | 2 speed electronically controlled DC motor |
Recording system: | AC bias |
Bias frequency: | 90kHz |
Erasing system: | AC erase |
Tape speed: | 4.8 cm / s |
[Frequency response (W/o Dolby N.R.)] | |
Metal tape: | 30Hz to 18kHz 40Hz to 17kHz (DIN) 50Hz to 16kHz (±3dB) |
CrO2 tape: | 30Hz to 17kHz 40Hz to 16kHz (DIN) 50Hz to 15kHz (±3dB) |
Normal tape: | 30Hz to 16kHz 40Hz to 15kHz (DIN) 50Hz to 14kHz (±3dB) |
Dynamic range (With dbx On): | 110dB (1kHz) |
Max. Input level improvement (With dbx On): | 10dB |
S / N ratio (Signal level = max. recording level, CrO2 type tape): | Dbx On - 92dB (A weighted) Dolby C NR On - 75dB (CCIR) Dolby B NR On - 67dB (CCIR) NR Off - 57dB (A weighted) |
Wow and flutter: | 0.08% (WRMS) ±0.18% (DIN) |
Fast forward and rewind time: | Approx. 100 sec. (With C-60 cassette tape) |
Input sensitivity / Impedance: | Line - 60mV / 47kΩ |
Output voltage / Impedance: | Line - 400mV / 1.5kΩ Headphones - 80mV / 8Ω |
Power supply: | AC 120V, 60Hz (U.S.A. and Canada) AC 220V, 50 / 60Hz (Europe, Holland and F.R. Germany) AC 110 / 127 / 220 / 240V, 50 / 60Hz, Preset power voltage 240V (Others countries) |
Power consumption: | 25W |
Dimensions (W x H x D): | 430 x 110.7 x 275mm |
Weight: | 5.4kg |
Year: | 1986 |
