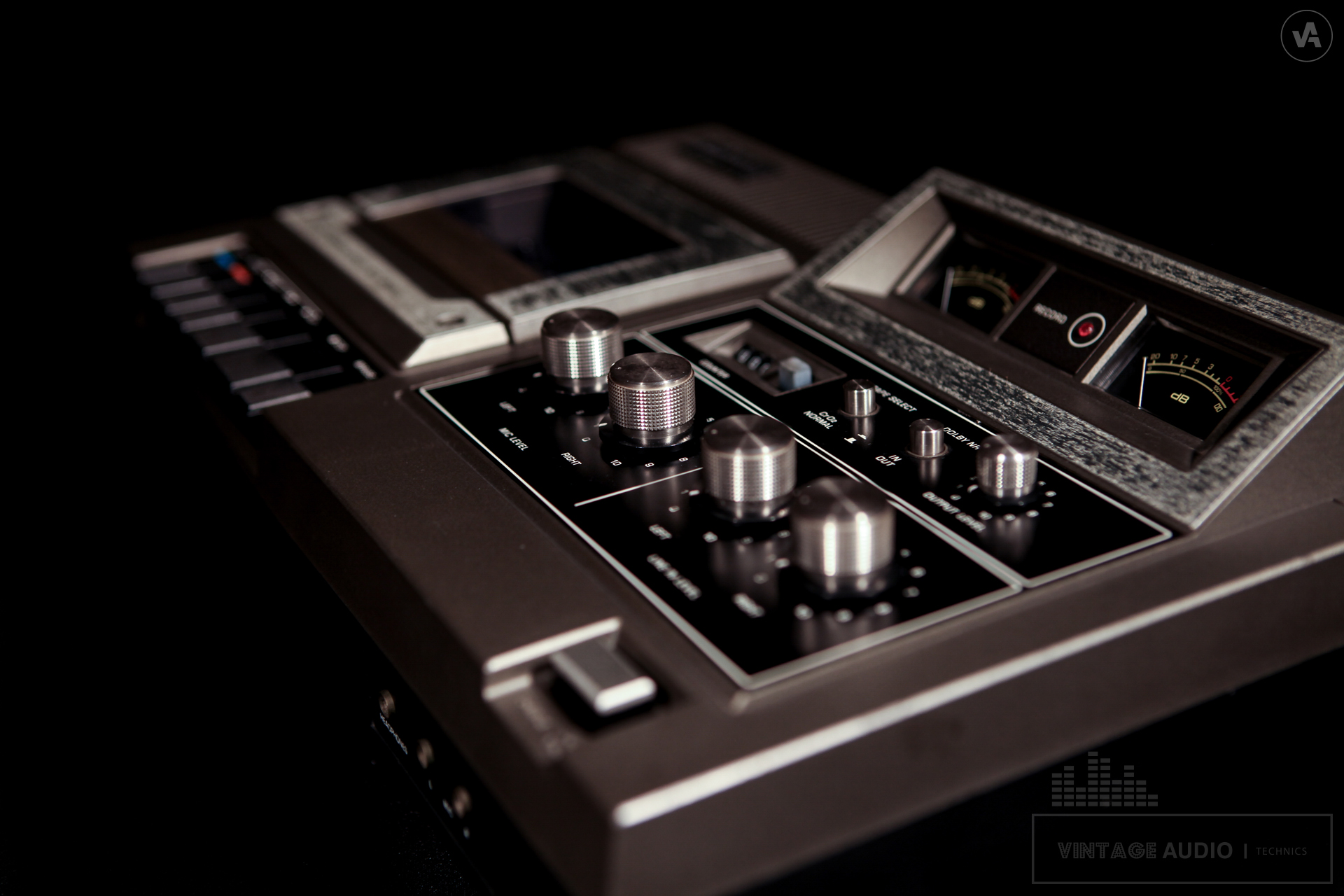

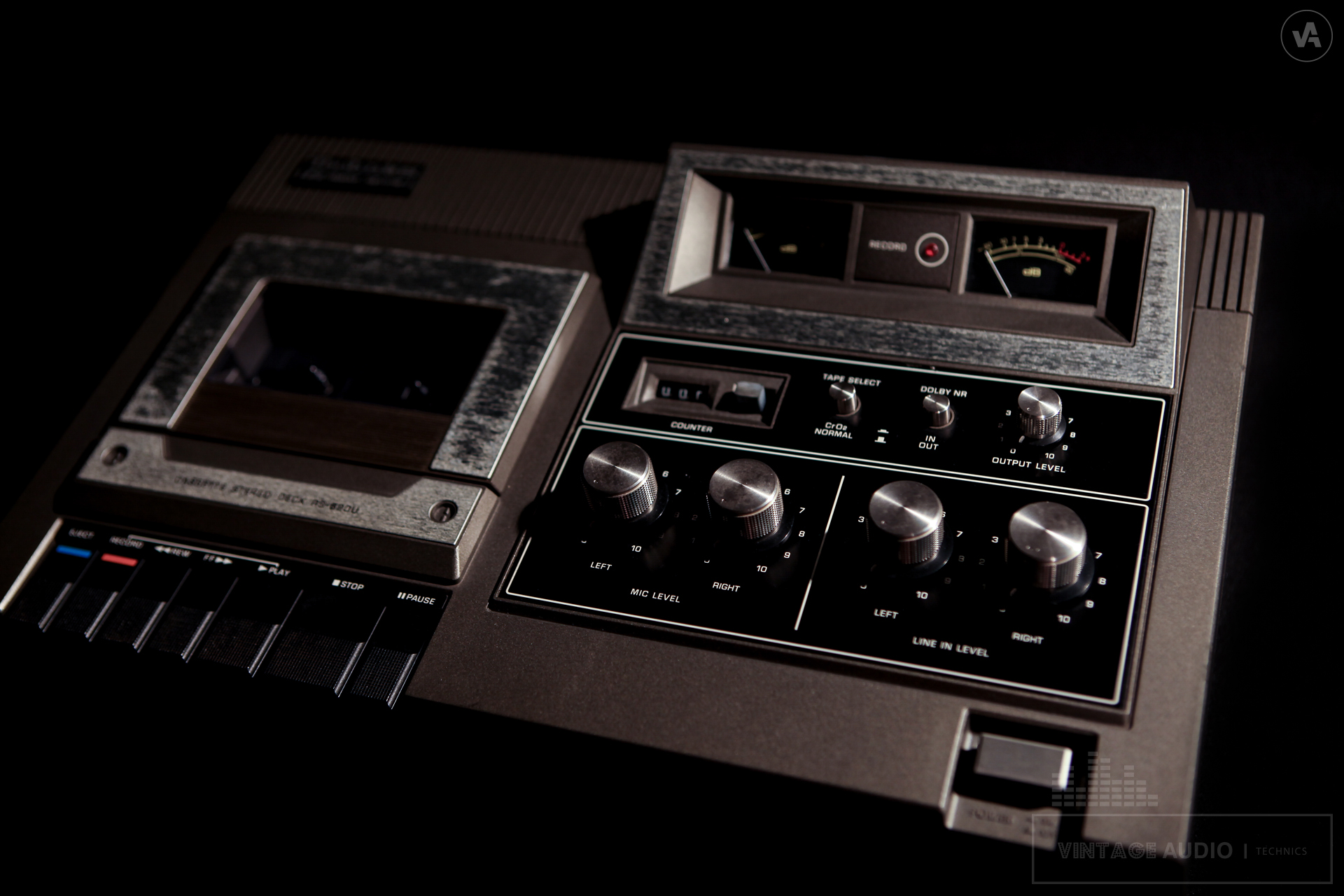

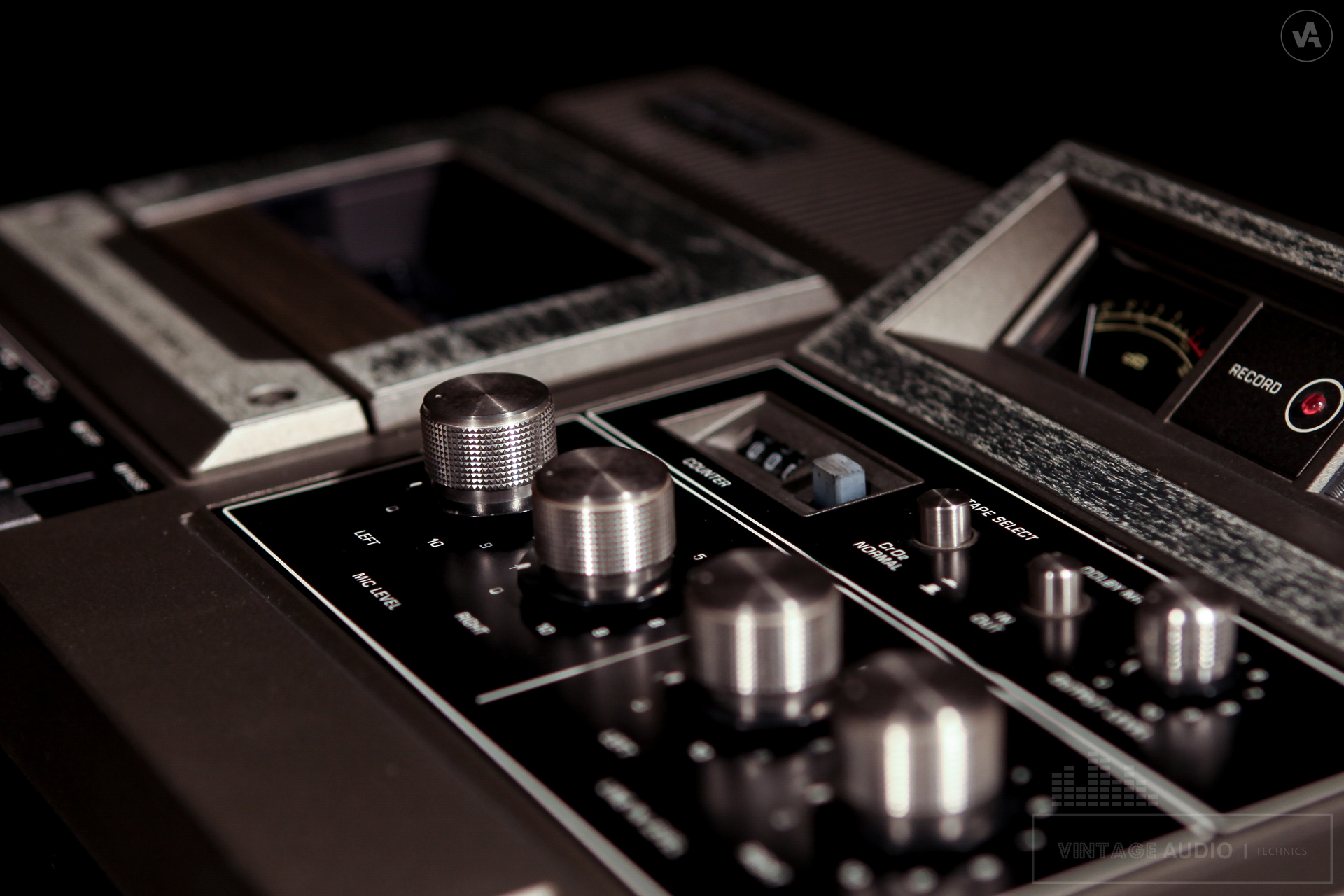

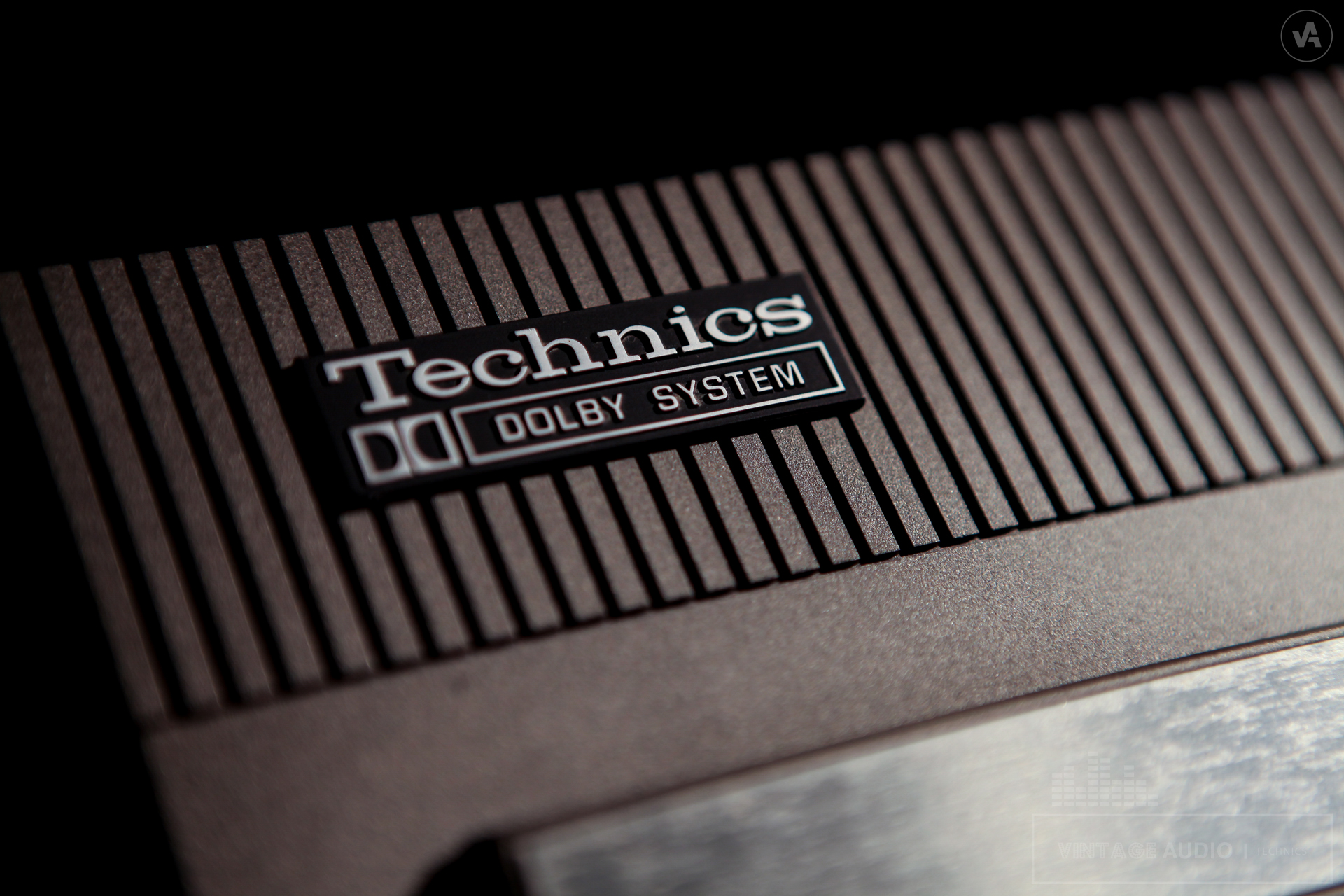

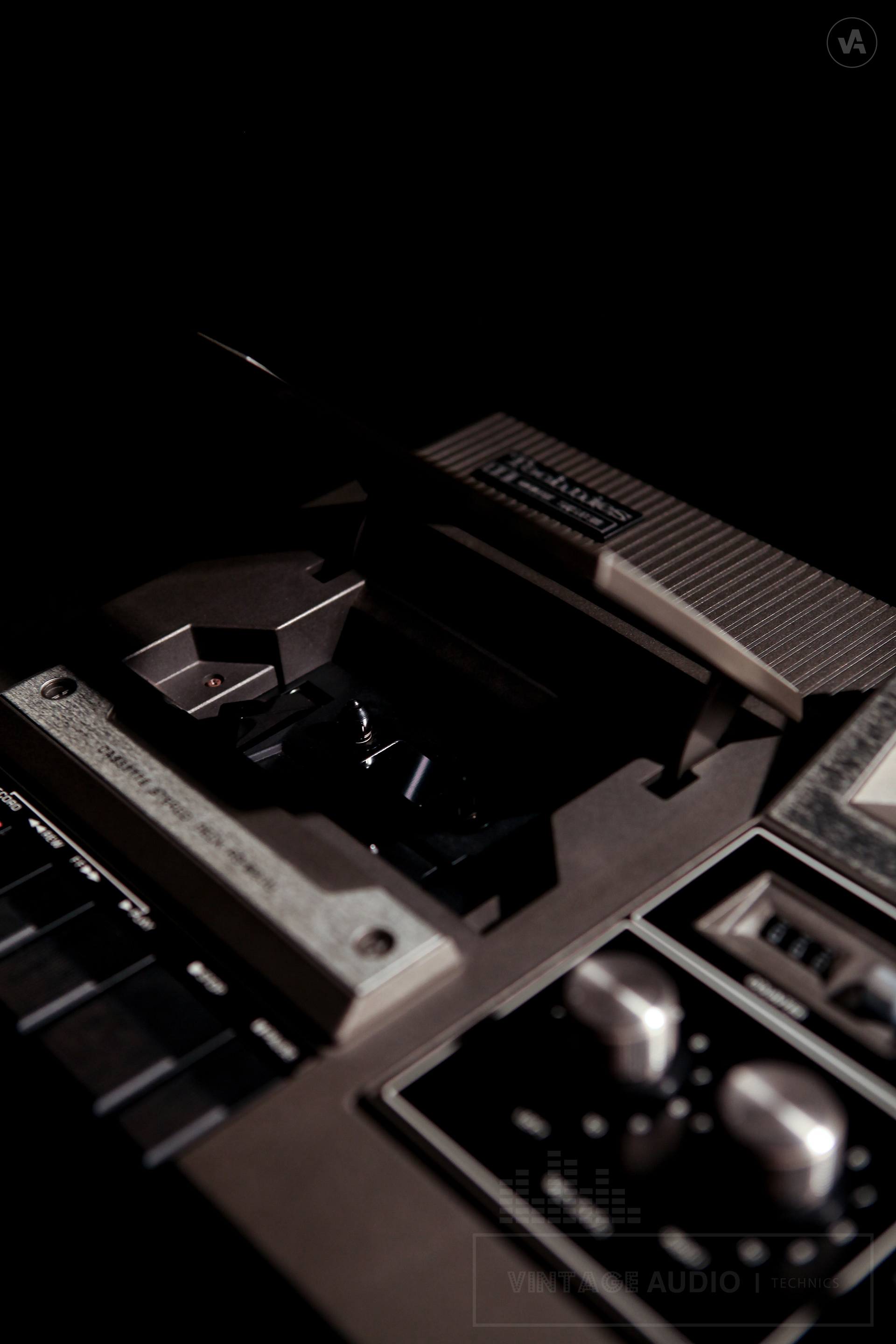

Type: | Cassette deck |
Tape-transport scheme: | 1 motor belt drive scheme |
The motor used: | Electronics control DC motor |
Using head For recording plays: | LH head |
For an erasure: | Double gap ferrite head |
Wow and flutter: | 0.14% (WRMS) |
S/N ratio Dolby out: | 49dB |
Dolby in: | A 5kHz or more modification [ 10dB ] |
Frequency characteristic: | Normal - 30Hz - 13kHz Chromium - 30Hz - 15kHz |
Input sensitivity/impedance Mic: | 0.3mV (-70dB)/600ohms - 20kohm |
Line in: | 60mV (-24dB) |
An Output voltage/impedance Line out: | 420mV (-7.5dB)/50 or more kohms |
Headphone: | 60mV/eight ohms |
The semiconductor used: | Transistor - 22 pieces FET - 2 pieces IC - 2 pieces Diode - 11 pieces In addition, a semiconductor - 5 pieces |
Power source: | AC 100V, 50Hz/60Hz |
Power consumption: | About 7W |
Dimensions (W x H x D): | 394 x 123 x 248mm |
Weight: | About 4.5kg |
Year: | 1976 |
