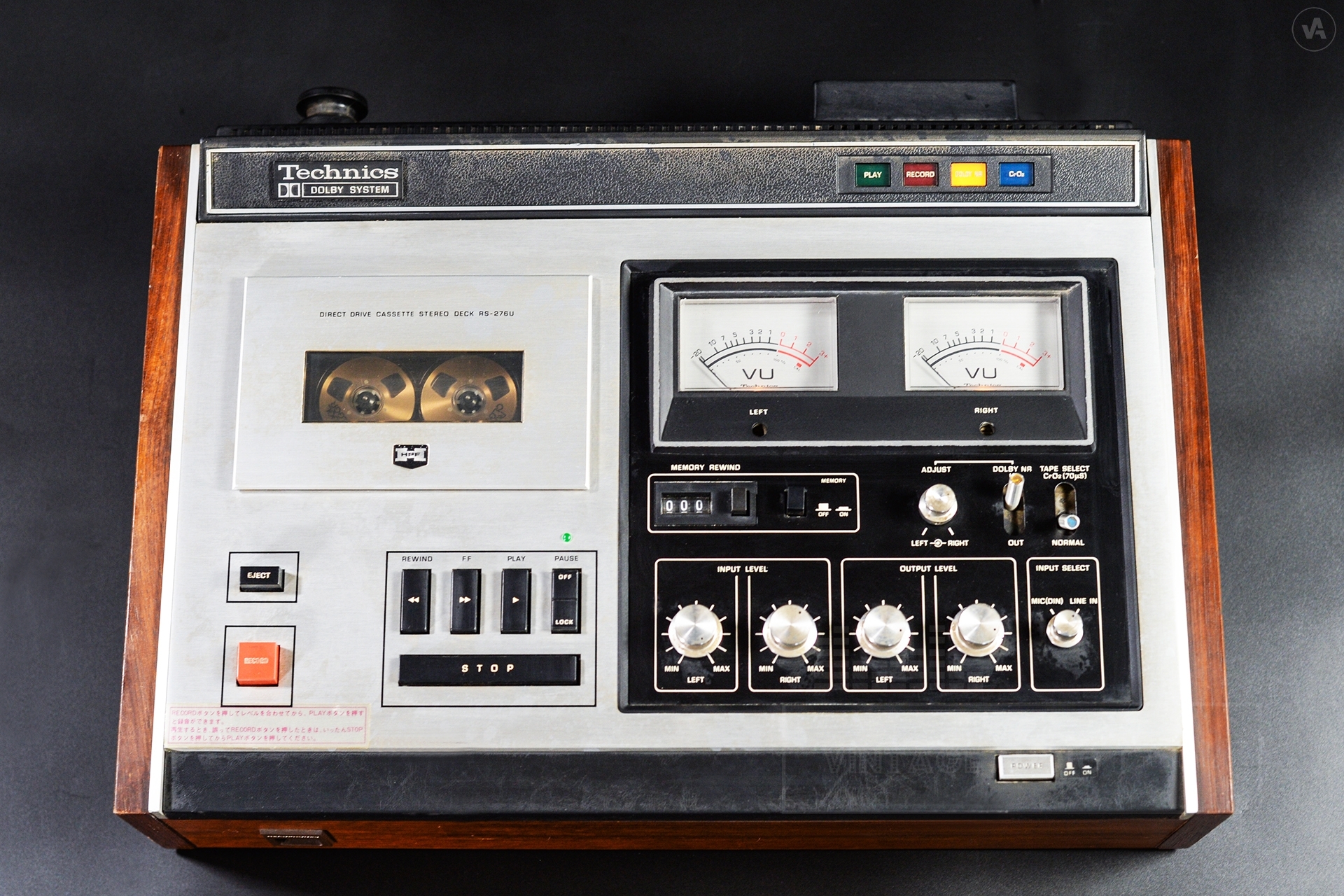

Technics RS-276U
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | 2-head, single compact cassette deck |
Track System: | 4-track, 2-channel stereo |
Tape Speed: | 4.76 cm/s |
Heads: | 1 x Record/playback 1 x Erase |
Motors: | 1 x Direct Drive brushless motor for capstan drive 1 x DC-motor for reel drive |
Tape Type: | Type I, CrO2 |
Fast Forward & Rewind Time: | Approximately 100 sec. with C-60 cassette tape |
Program Time: | 1 hour stereo recording with C-60 cassette tape |
Record / Playback connection: | 1-DIN connection |
Noise Reduction: | B |
Frequency Response: | 20Hz to 16kHz (Type I tape) 20Hz to 18kHz (Cr02 tape) |
Signal to Noise Ratio: | 50dB (Standard) 60dB (Dolby B) |
Total Harmonic Distortion: | Less than 0.1% |
Recording System: | AC bias |
Erase System: | AC erase |
Inputs / Impedance: | 30mV / 220kΩ (Line) 0.3mV / 600Ω - 20kΩ (Mic) |
Output: | 0.5V / 50kΩ (Line) 8Ω (Phone) |
Semiconductor used: | 41 x Transistors |
Power Source: | AC 90 - 109V / 110 - 125V / 200 - 219V / 220 - 250V, 50 / 60Hz |
Power Consumption: | Approximately 30W |
Dimensions (W x H x D): | 440 x 115 x 325mm |
Weight: | 9kg |
Year: | 1973 |
