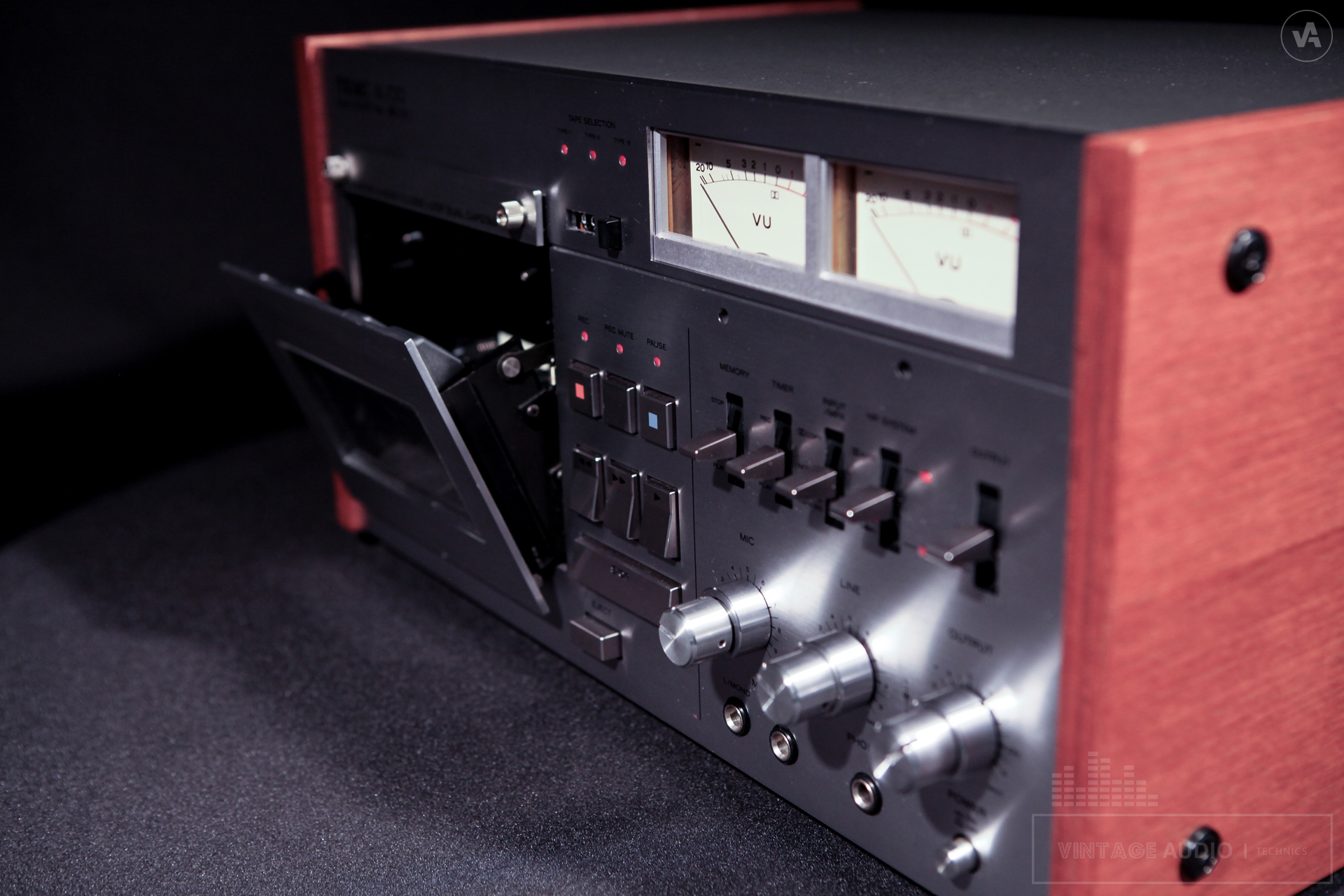

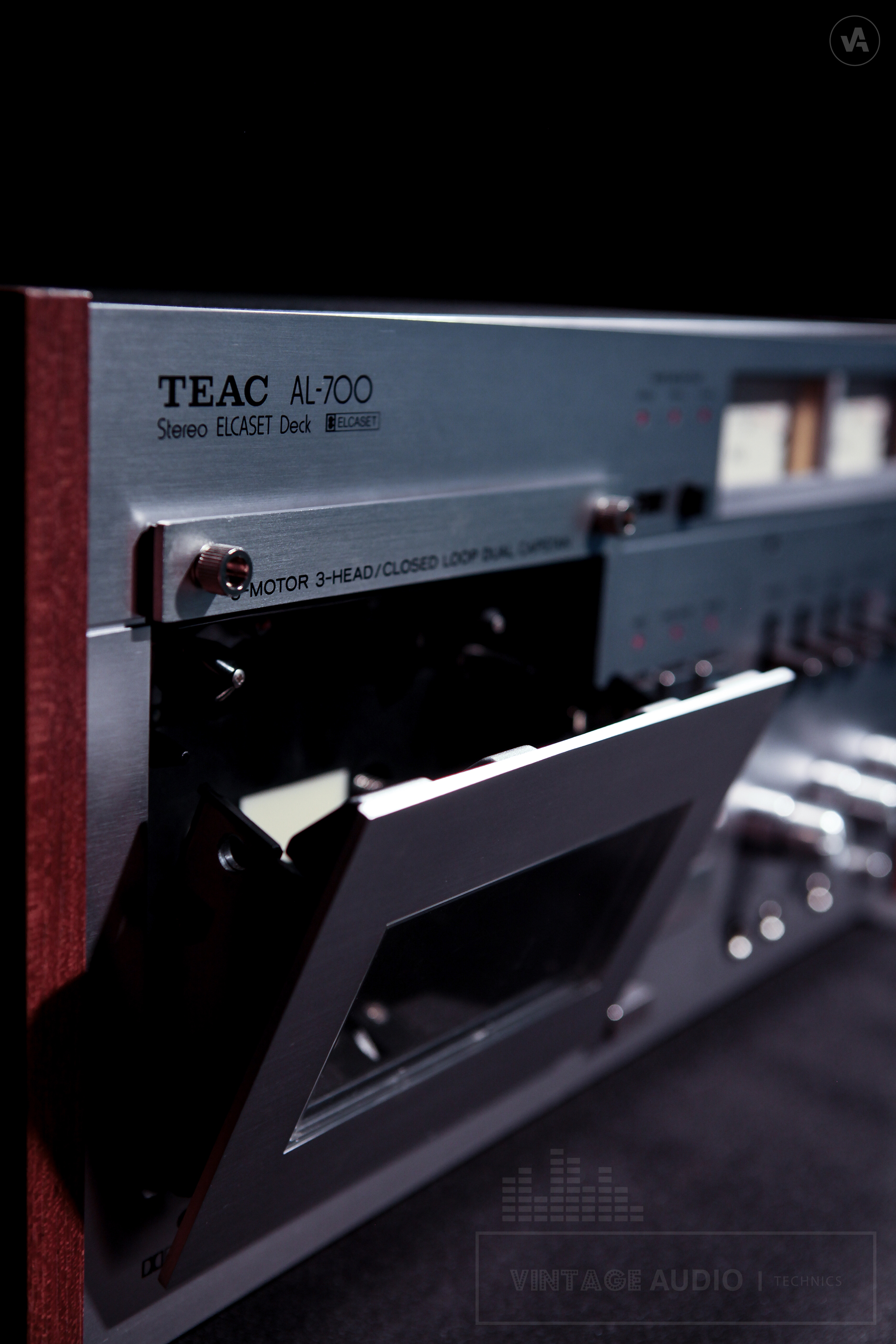

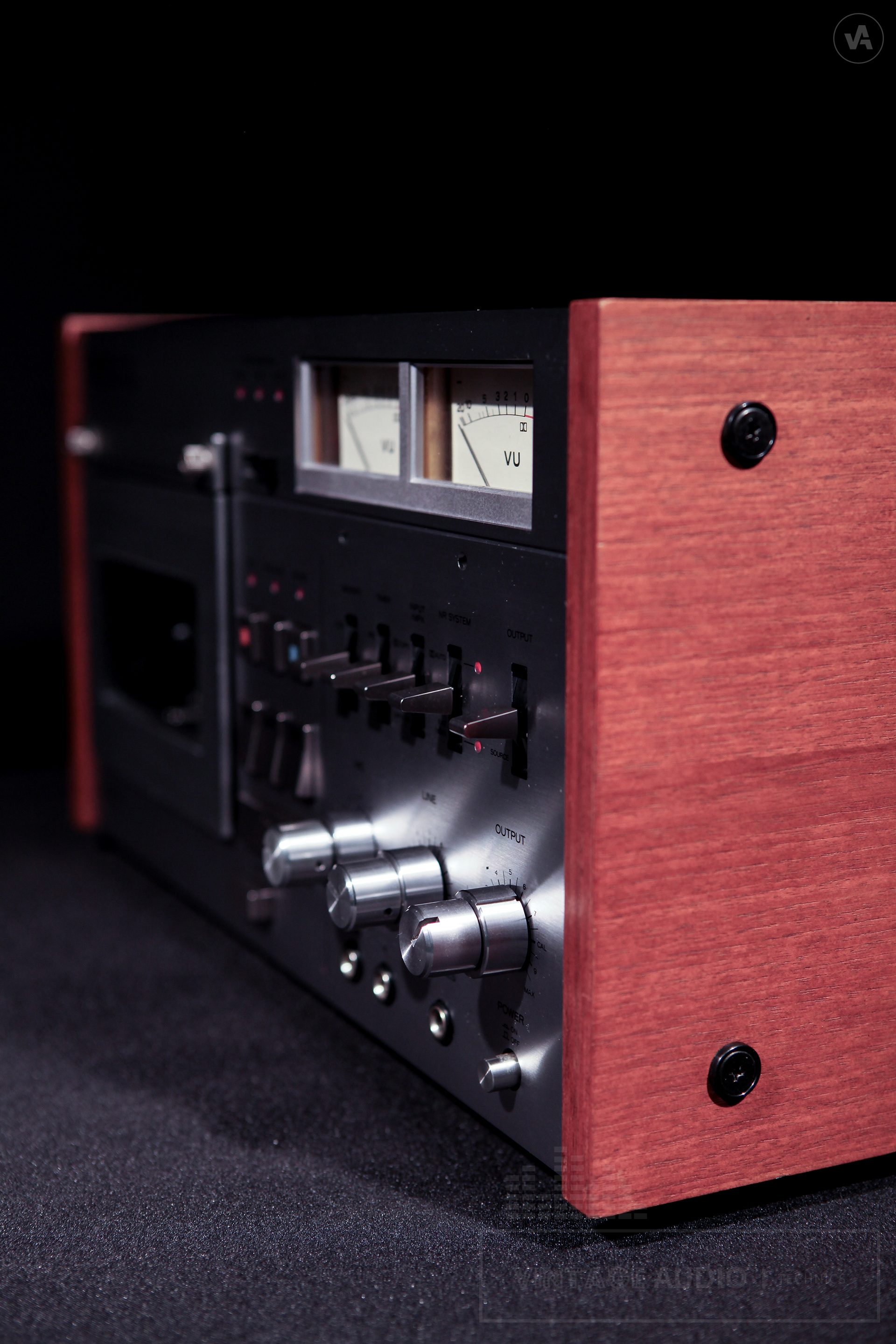

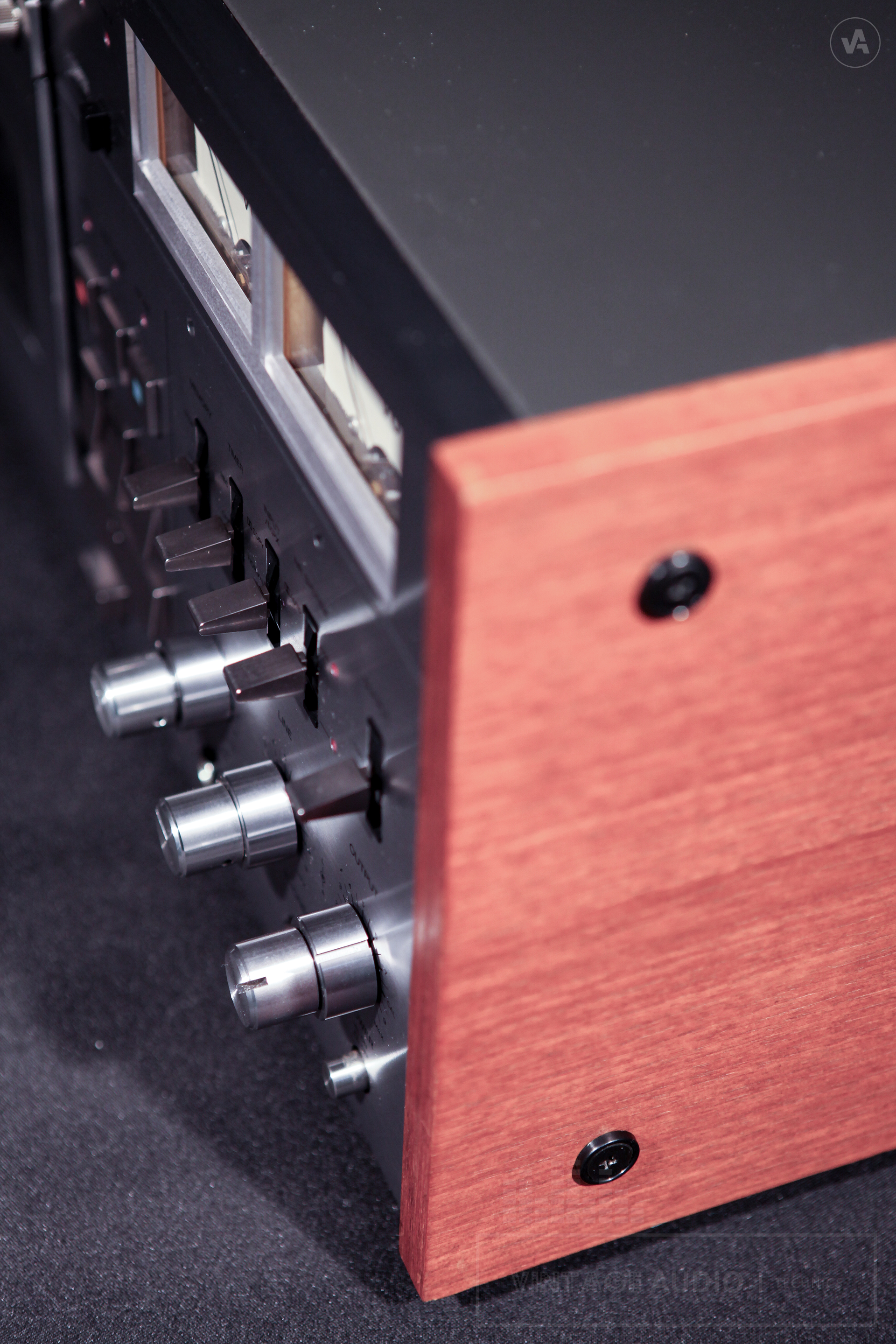

Type: | Stereo Elcaset Deck |
Track type: | 4 tracks, 2-channel Stereo |
Heads: | Erase x 1 Record / Playback x 1 |
Motors: | FG servo Controlled DC Capstan Motor × 1 Coreless DC Reel Motor × 2 |
Type of Tape: | ELCASET LC-60, LC-90 (TYPE I, II, III) |
Tape speed: | 9.5 cm/sec |
Rewind / Fast Forward Time: | 70 seconds / LC-60 |
Wow and Flutter (NAB Weighted): | 0.04% |
Frequency Response (Overall): | TYPE-I: 25 to 20,000Hz (± 3dB) TYPE-II: 25 to 22,000Hz (± 3dB) TYPE-III: 25 to 22,000Hz (± 3dB) |
S/N ratio (Overall): | TYPE-I: 59dB TYPE-II: 62dB TYPE-III: 62dB Can be improved with Dolby NR up to 5dB / 1kHz, 10dB / over 5kHz |
Overall strain rate: | 0.8% (TYPE-II) |
Inputs: | Mic - 0.25mV (-72dB) / impedance: 600Ω or more Line - 60mV / impedance: 50kΩ |
Outputs: | Line - 0.3V / load impedance 50kΩ Stereo Headphone Jack – 1mV / 8Ω |
Power supply: | AC 117V, 50 / 60Hz |
Power consumption: | 37W |
Supplied Accessories: | Input-Output Connection Cords, Cleaning Stick, Tape Driver |
Dimensions (W x H x D): | 470 x 275 × 340mm |
Weight: | 20kg |
Year: | 1976 |
