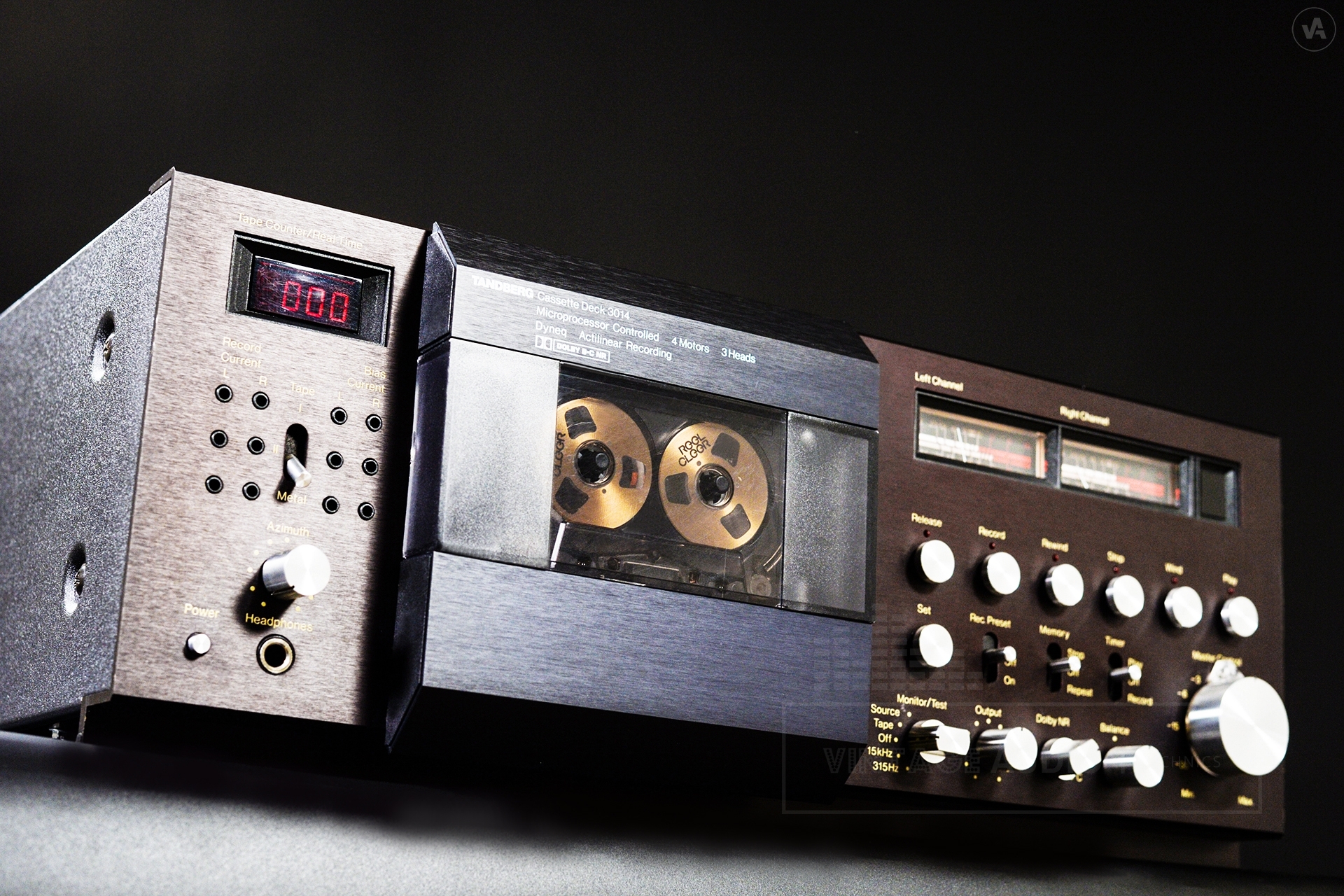

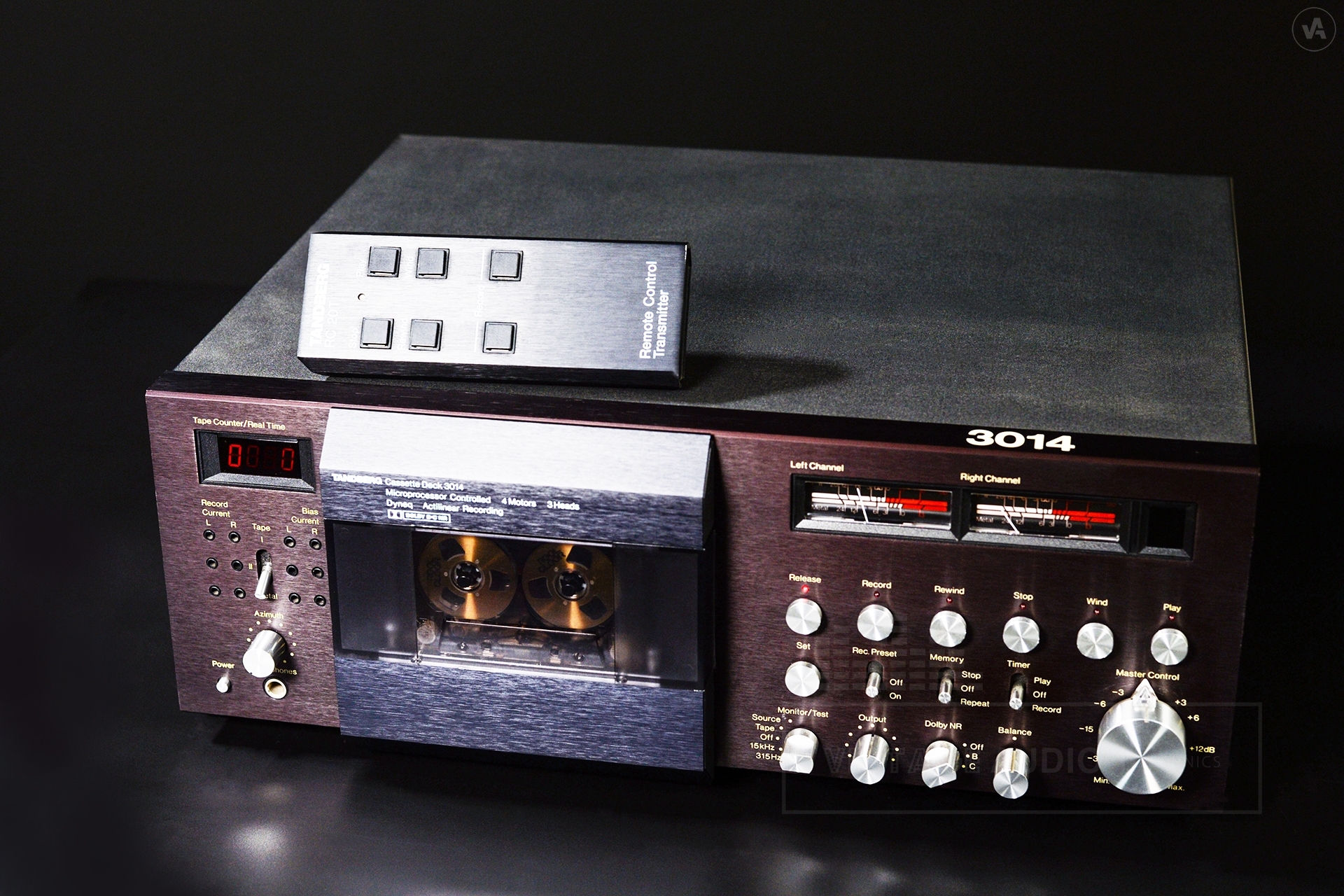

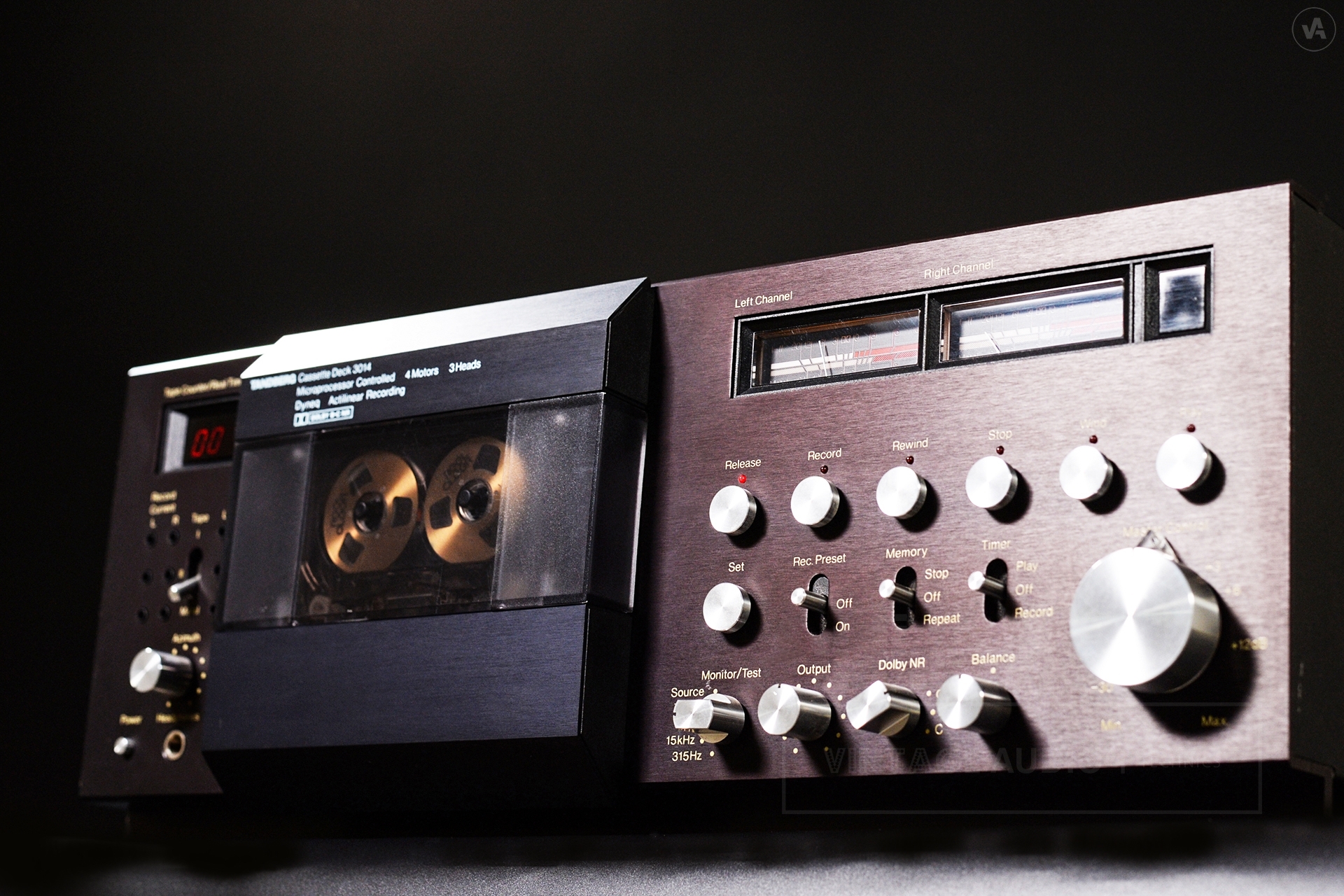

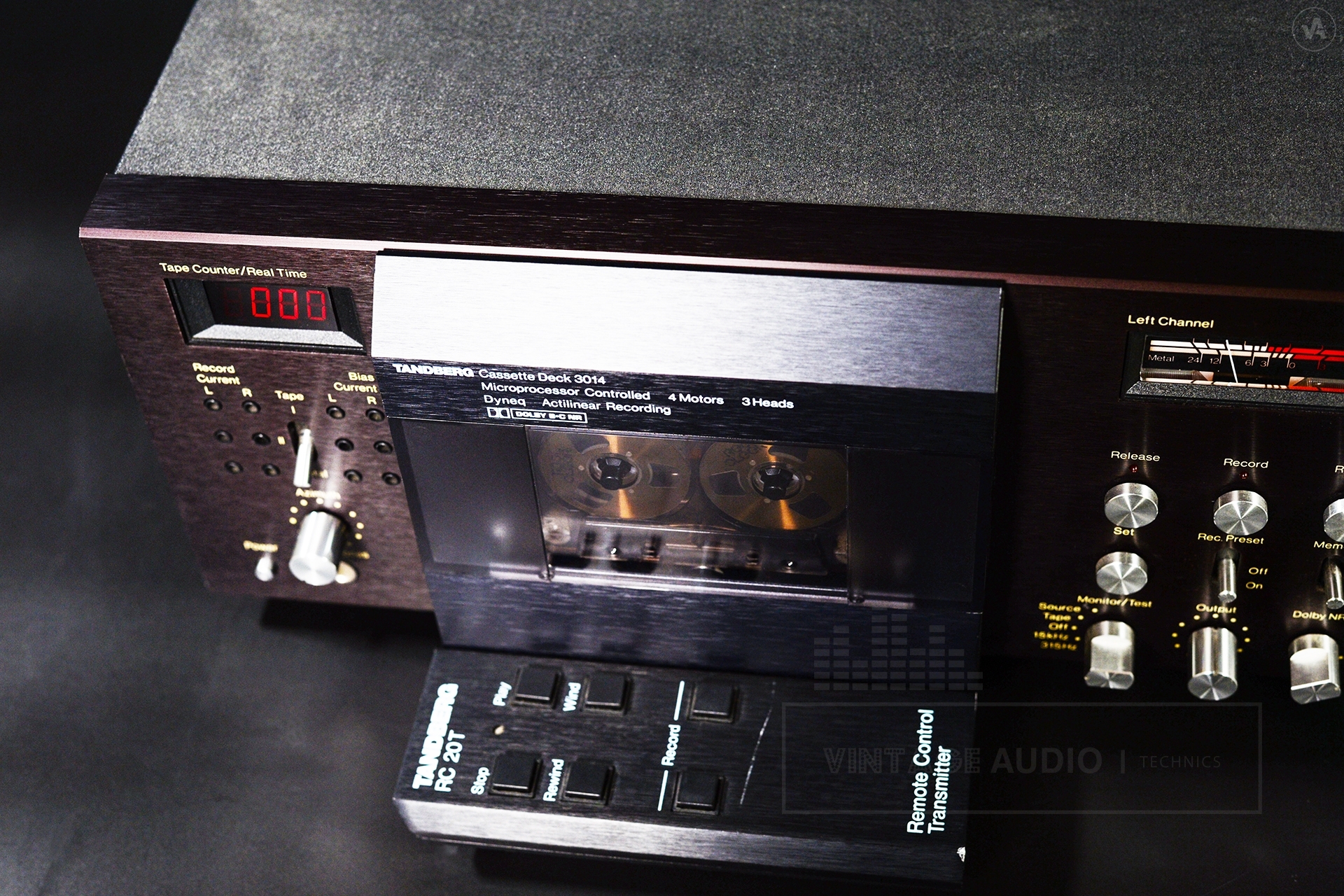

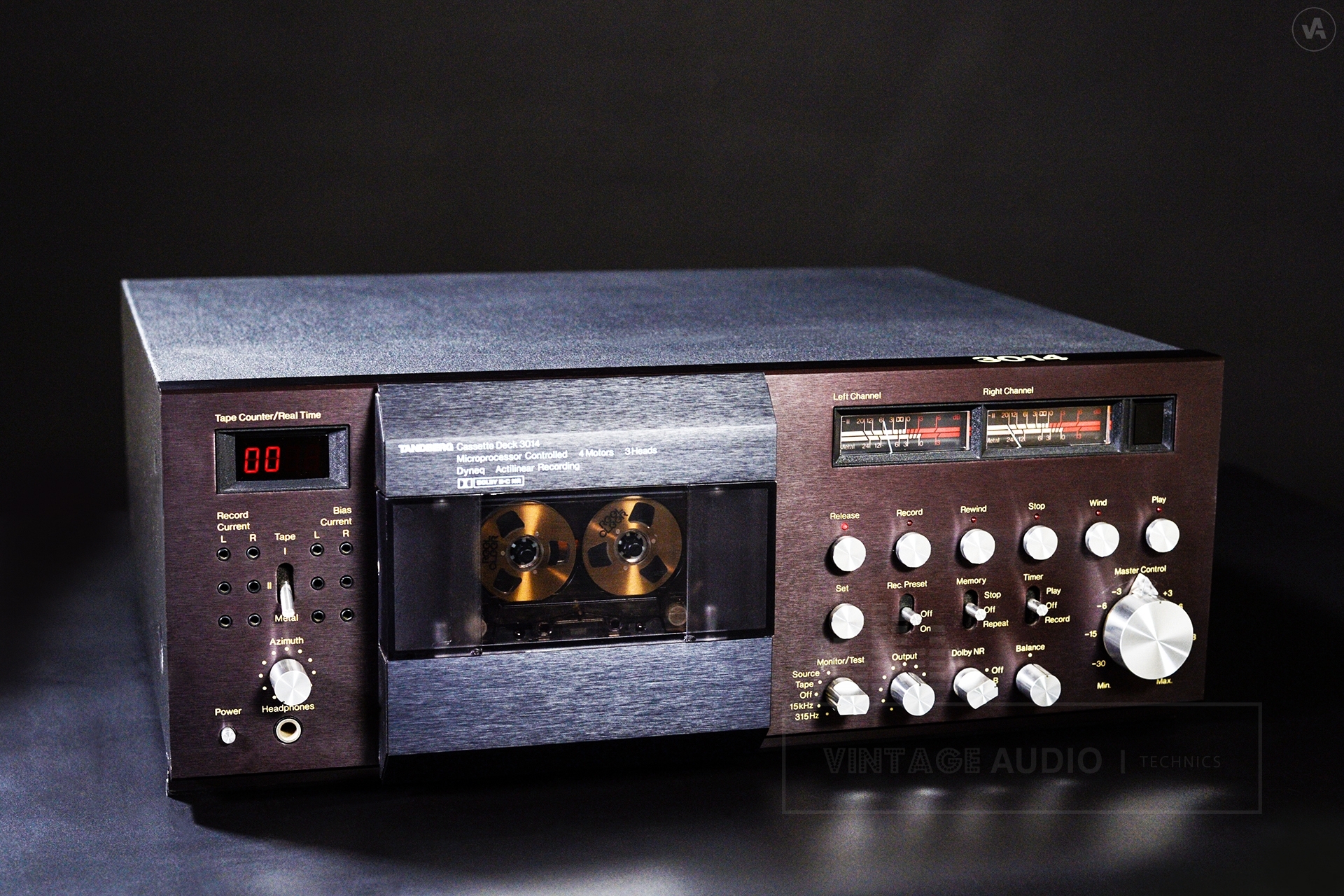

TANDBERG TCD 3014
Type: | Stereo Cassette Deck |
Tape Speed: | 1-7/8 ips |
Tape Type: | Tape I Tape II Metal IV |
Speed Tolerance: | ±0.5% |
Wow and Flutter: | 0.06% (WRMS, Play) 0.09% (WRMS, Record – Play) 0.12% (DIN – IEC) |
Frequency Range: | 18Hz to 23kHz, ±1.5dB (Metal IV, -20dB) 18Hz to 23kHz, ±3dB (Metal IV, With Dolby C) 18Hz to 20kHz, ±1.5dB (Tape II, -20dB) 18Hz to 20kHz, ±1.5dB (Tape I, -20dB) |
Noise Reduction System: | Dolby B Dolby C |
Harmonic Distortion (250 nWb / m, Dolby B NR): | <1% (Metal IV) <2% (Tape II) <1.5% (Tape I) |
S / N Ratio: | >74dB (Metal IV) |
Erasure: | >80dB (1kHz) |
[Crosstalk] | |
Side A – B: | <60dB (1kHz) |
Track 1 – 2: | <40dB (1kHz) |
[Inputs] | |
Input Impedance: | 150kΩ |
Sensitivity: | Low - 100mV High - 10mV |
[Outputs] | |
Minimum load impedance / Max. voltage at unloaded input: | Play 700mV (Fixed line output) - 100Ω / 700mV Play Variable (Variable line output) - 100Ω / 0 - 4V Headphones - 8Ω / 3.5V |
Power Supply Voltage: | AC 230V ±10%, 50Hz AC 115V ±10%, 60Hz |
Power Consumption: | 50W |
Dimensions (W x H x D): | 435 x 166 x 350mm |
Weight: | 9.8kg |
Year: | 1982 |
