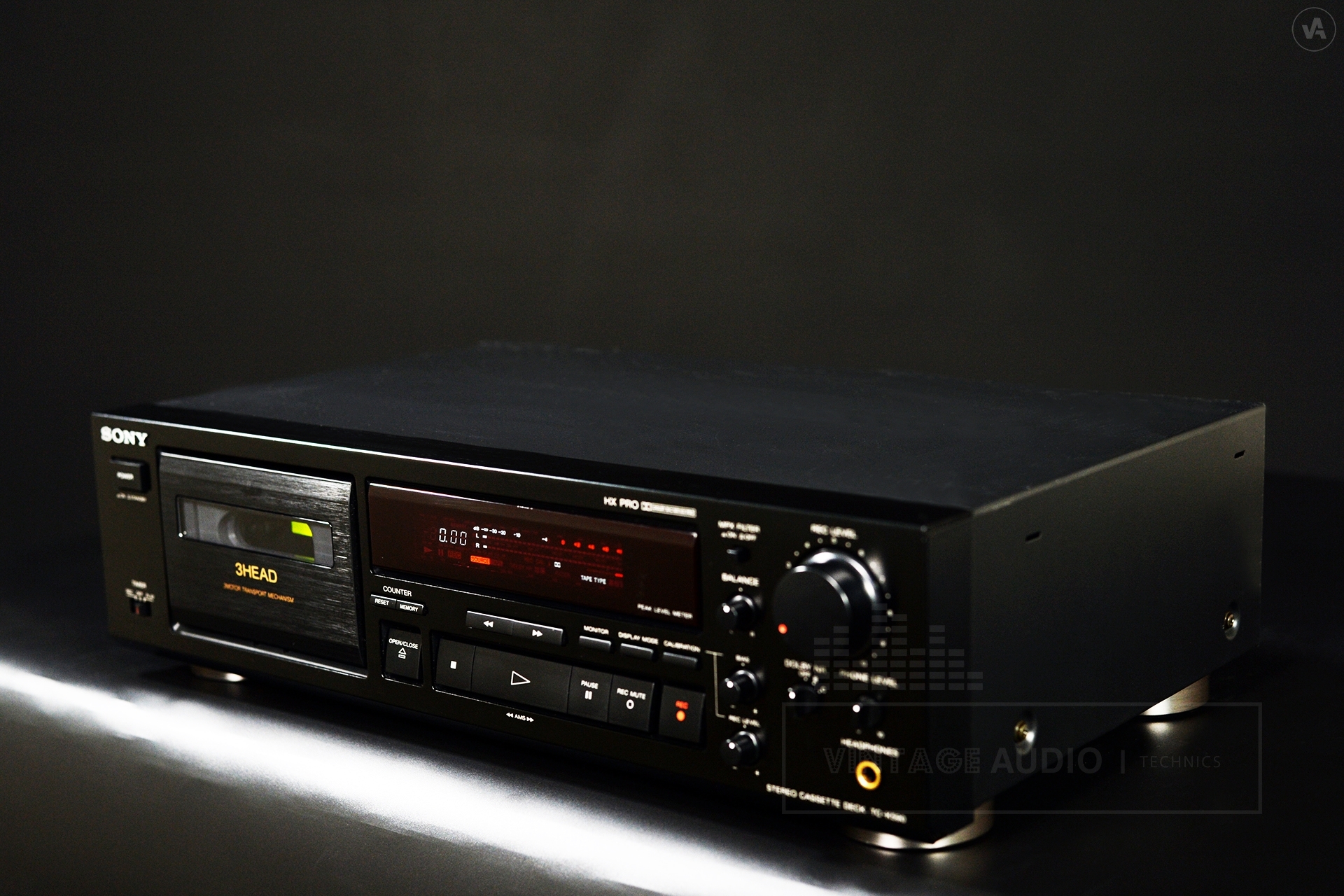

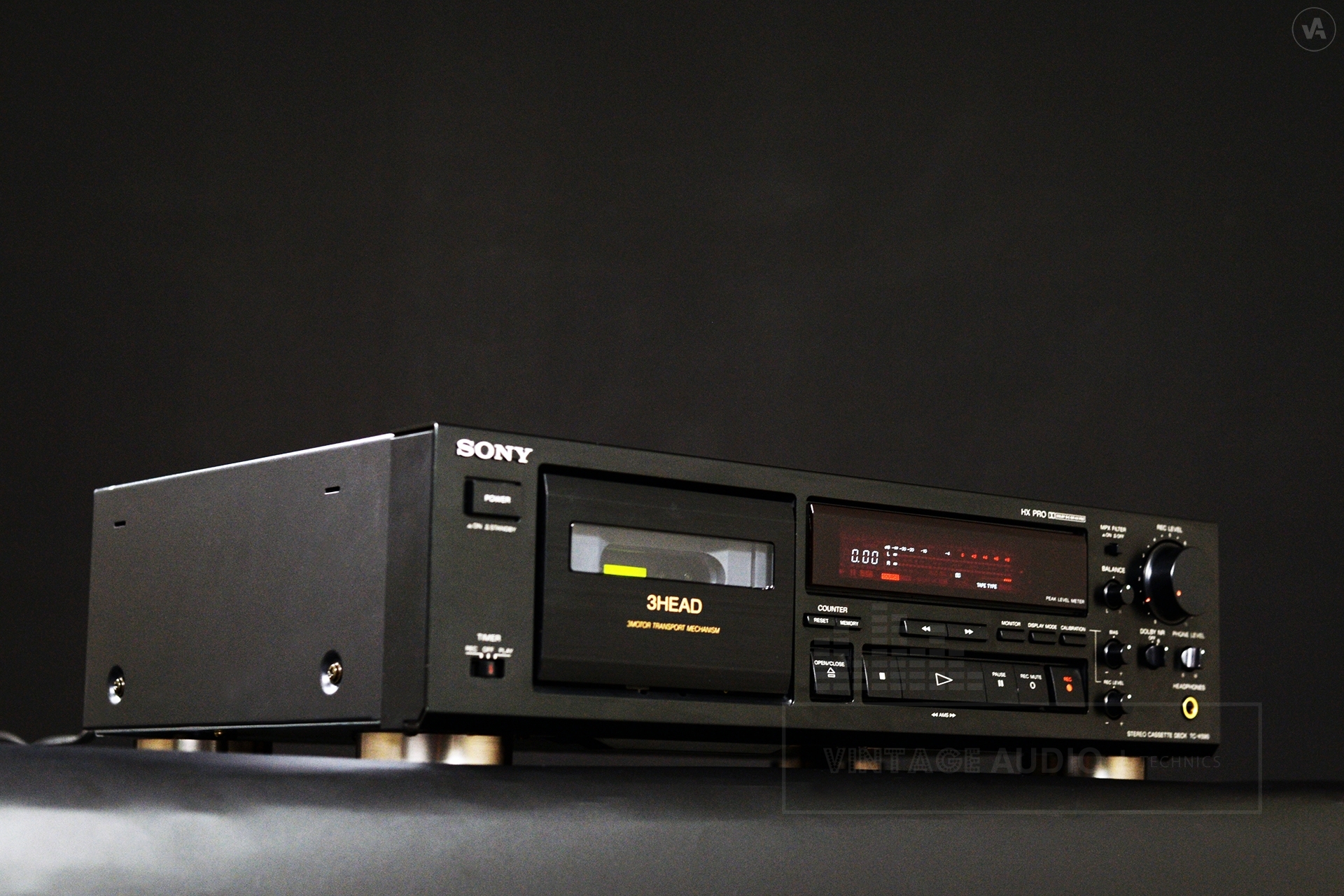

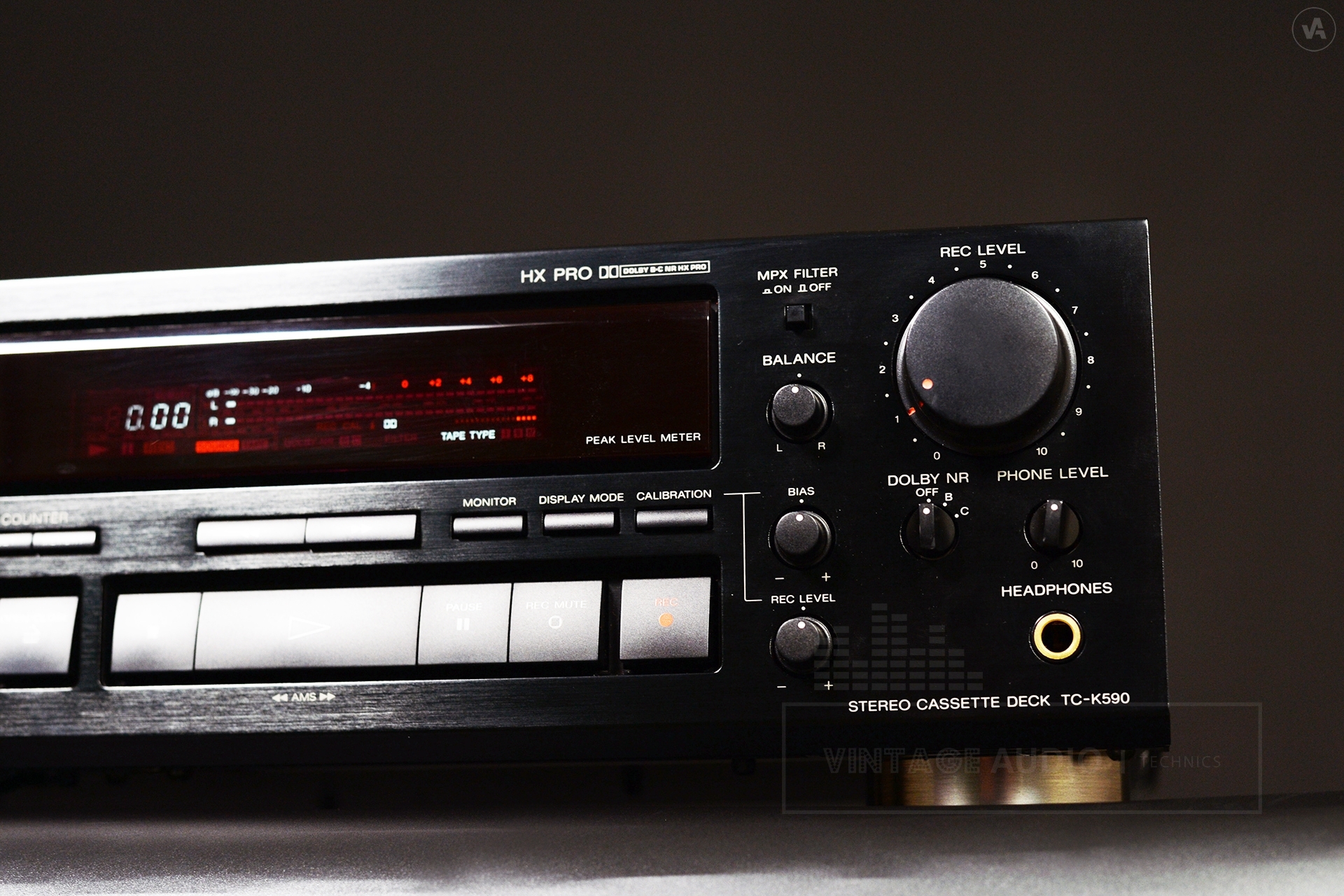

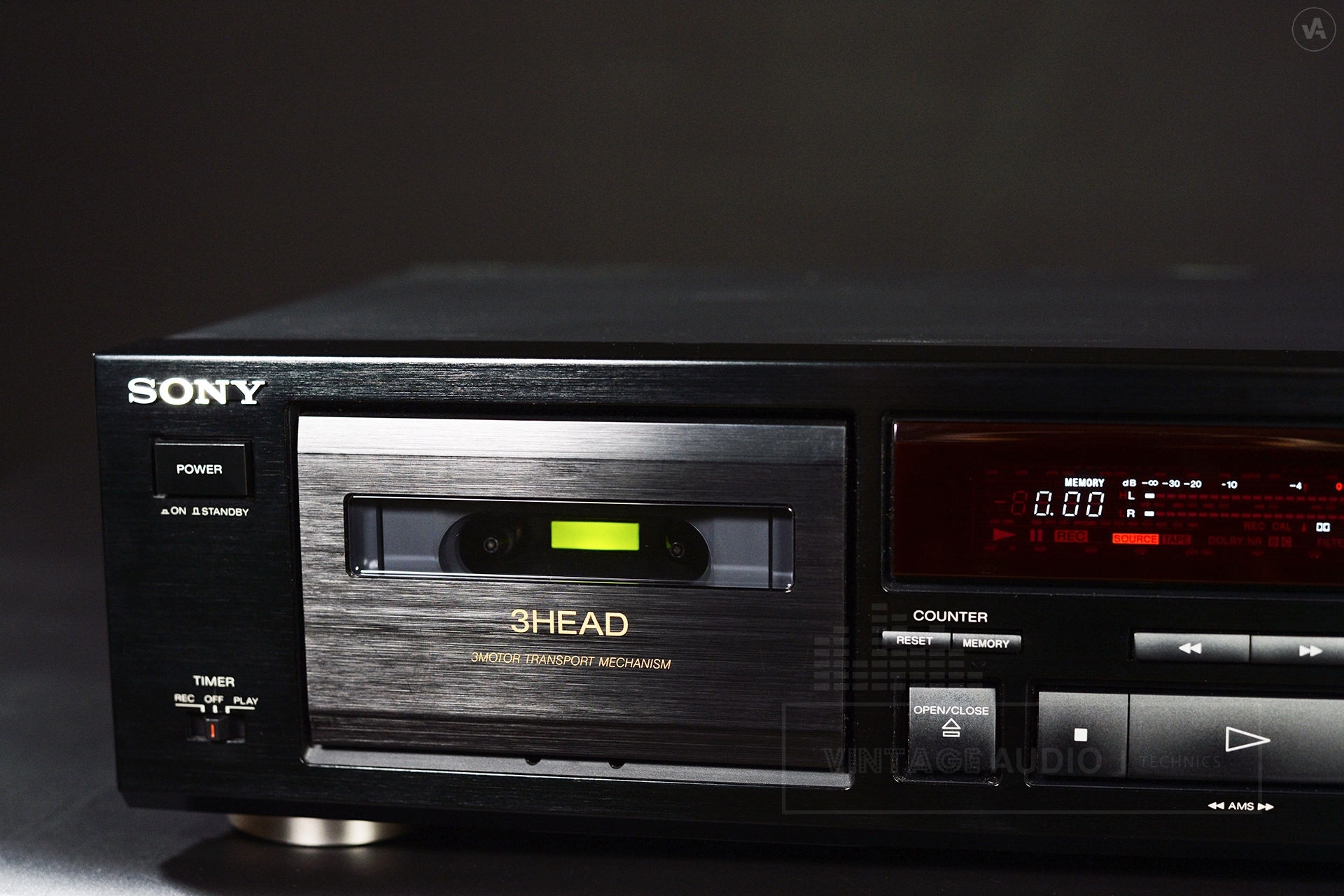

Sony TC-K590
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | 3-head, single compact cassette deck |
Track System: | 4-track, 2-channel stereo |
Tape Speed: | 4.8 cm/s |
Heads: | 1 x Combination recording / Playback head (SD) 1 x Erase head (S&F) |
Motors: | 1 x Reel DC motor 1 x Capstan DC servo motor 1 x ASIST (Mechanical drive) DC motor |
Tape Type: | Type I CrO2 Metal |
Noise Reduction: | Dolby B Dolby C HX Pro |
Frequency Response: | 20Hz to 20kHz, ±3dB (Metal tape [Sony Metal-S]) 20Hz to 18kHz, ±3dB (CrO2 tape [Sony UX-S]) 20Hz to 17kHz, ±3dB (Type I tape [Sony HF-S]) |
Signal to Noise Ratio: | 60dB (Sony Metal-S tape, Dolby NR Off) 59dB (Sony UX-S tape, Dolby NR Off) 57dB (Sony HF-S tape, Dolby NR Off) 75dB (500Hz, Dolby C On) 65dB (1kHz, Dolby B On) |
Wow and Flutter: | 0.05% |
Total Harmonic Distortion: | 0.4% (With Sony Type I, 160nWb/m, 315Hz, 3rd H.D.) 1.5% (With Sony Metal-S, 250nWb/m, 315Hz, 3rd H.D.) |
Inputs / Impedance: | 160mV / 47kΩ (Line) |
Output level / Impedance: | 0.5V / 47kΩ (Line) 0-3mW / 32Ω (Headphones) |
Power requirements: | AC 220 - 230V, 50 / 60Hz (AEP, Germany model) AC 120V, 60Hz (Canadian model) AC 240V, 50 / 60Hz (UK model) |
Power consumption: | 19W |
Dimensions (W x H x D): | 430 x 123 x 300mm |
Weight: | 4.7kg |
Year: | 1992 |
