Type: | Stereo cassette deck |
Track system: | 4 track 2 channel |
Head configuration: | Erasing, recording, playing Independent 3 heads |
Motors: | PLL servo for motor capstan x 1 For reel drive x 1 |
Tape speed: | 4.8 cm / s |
Wow • Flutter: | 0.04% or less Wrms 0.08% or less Wpeak |
Frequency characteristics (using A.B.L.E): | 20Hz to 20000Hz ± 0.75dB 18Hz to 25 000Hz ± 3dB (Nakamichi EX, EX II, SX, ZX tape, recording level - 20dB) |
Overall S / N ratio: | 66dB or more (3% THD) 60dB or more (0dB) (IHF-A, Wrms, 400Hz, Dolby NR, ZX tape, 70μs) |
Overall strain rate: | 0.8% or less (ZX tape) 1.0% or less (SX, EX II tape) (400Hz, 8dB) |
Elimination rate: | 60dB or more (100Hz) |
Channel separation: | 37dB or more (1kHz, 0dB) |
Bias frequency: | 105kHz |
Inputs: | 50mV 50kΩ (line) 0.2mV 10kΩ (microphone) 100mV 50kΩ (noise reduction) |
Outputs: | 1V (400Hz, 0dB, output level maximum, line) 45mW (400Hz, 0dB, output level maximum, microphone) 100mV, 2.2kΩ (noise reduction) |
Features: | Automatic adjustment of tape selector (manual switching, bias 3 steps, equalizer 2 steps) Auxiliary mechanism Azimuth, bias, level, automatic adjustment of equalizer A.B.L.E. RAMM (Automatic cueing mechanism) |
Power supply: | AC 100V 50/60Hz |
Power consumption maximum: | 60W |

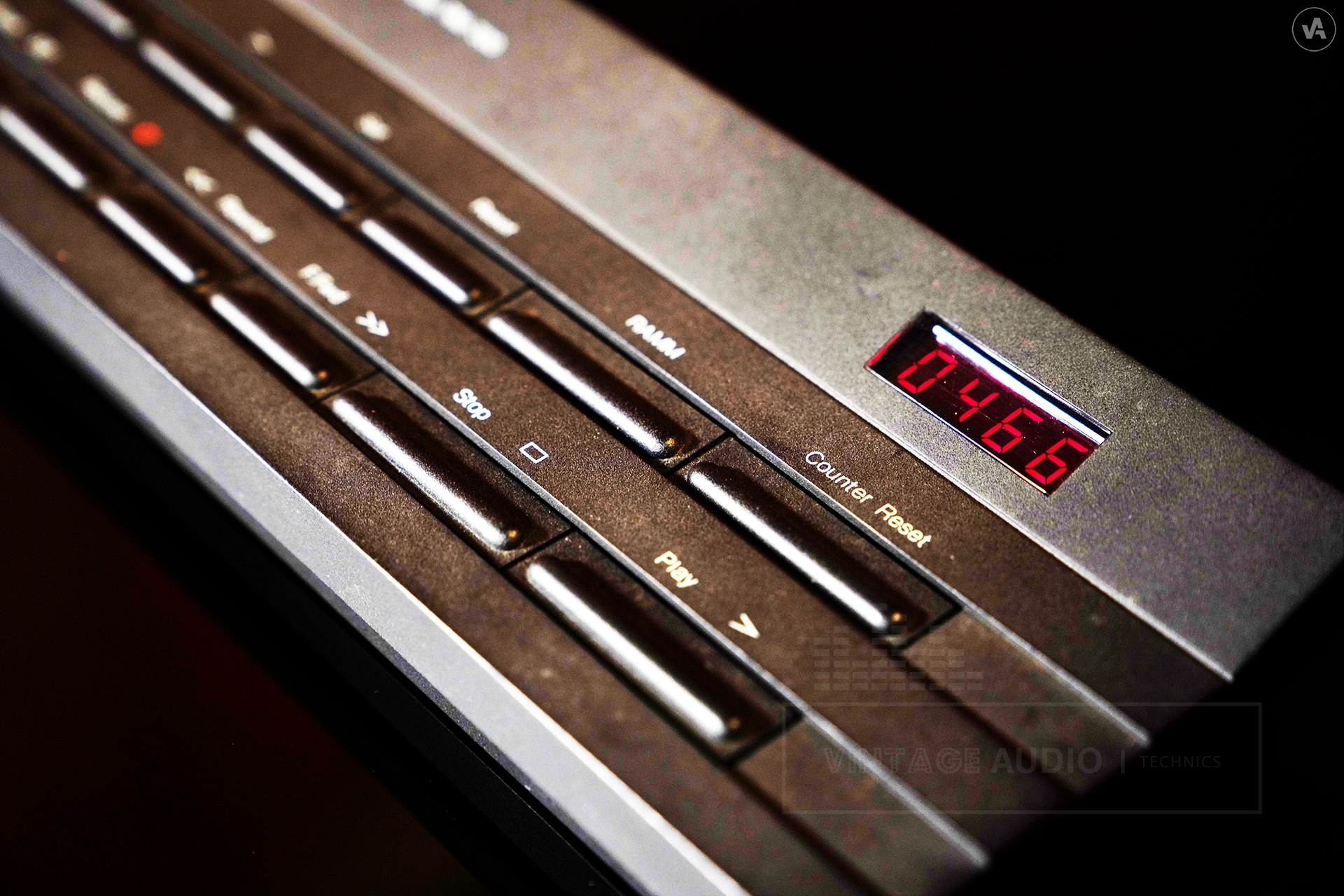

Optional: | Remote control unit RM - 300 (¥ 28,000) NR - 100 (corresponding to Dolby C type) |
Outer dimensions (W x H x D): | 522 x 258 x 322mm |
Weight: | Approx. 19kg |
Year: | 1980 |
