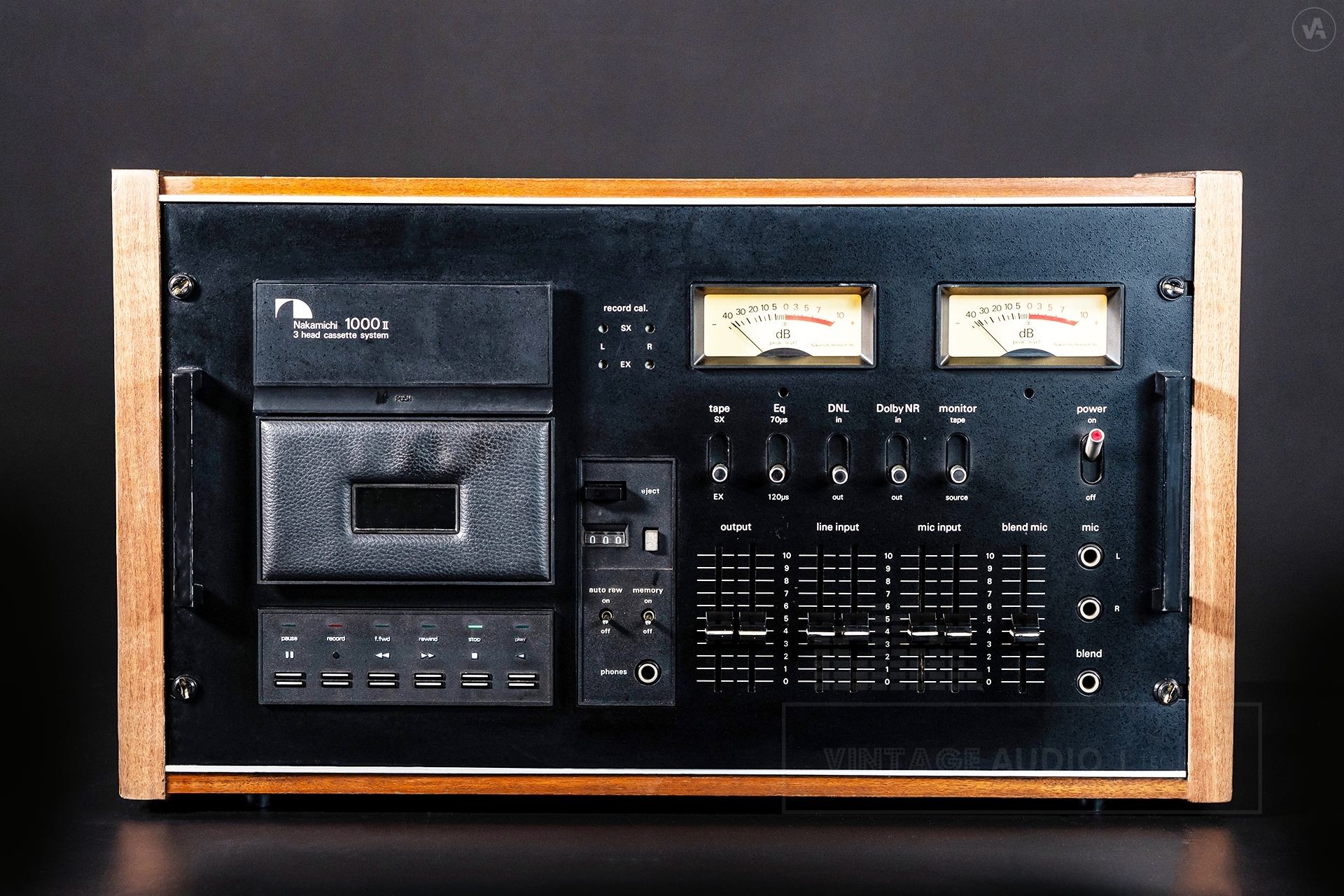

Nakamichi 1000 II
Type: | 3-head, single compact cassette deck |
Tape speed: | 4.75 cm /s (1-7/8 ips) ±1% |
Wow and flutter: | Less than 0.1% (DIN 45507 weighted peak) Less than 0.05% WRMS |
Frequency response: | 35Hz to 20kHz, ±3dB (Dolby NR in, SX or EXII tape) |
S / N ratio: | Better than 65dB (Dolby NR in, WRMS, CCITT, 400Hz, 3% distortion) |
Total harmonic distortion: | Less than 1.5% (At 400Hz, 0dB) |
Erasure: | Better than 60dB (At 1kHz, saturation level) |
Channel separation: | Better than 35dB (At 1kHz, 0dB) |
Crosstalk: | Better than 60dB (At 1kHz, 0dB) |
Bias frequency: | 105kHz |
Input / Impedance: | 0.2mV / 10kΩ (Mic. input) 0.2mV / 10kΩ (Blend Mic.) 0.2mV / 10kΩ (DIN Mic. Input) 50mV / 50kΩ (Line) 5mV / 20kΩ (DIN Ratio) |
Outputs: | 1V (Max.) variable (Line) 1V (Max.) variable (DIN Line output) 40mV / 8Ω (1kHz, 0dB) (Headphones) |
Semiconductors used: | Transistors x 156 pcs. Diodes x 78 pcs. IC’s x 9 pcs. |
Power supply: | AC 100 / 117 / 220 / 240V, 50 / 60Hz |
Power consumption: | 60W (Max.) |
Dimensions (W x H x D): | 525 x 297 x 219mm |
Weight: | Approx. 17,24kg |
Year: | 1977 |
