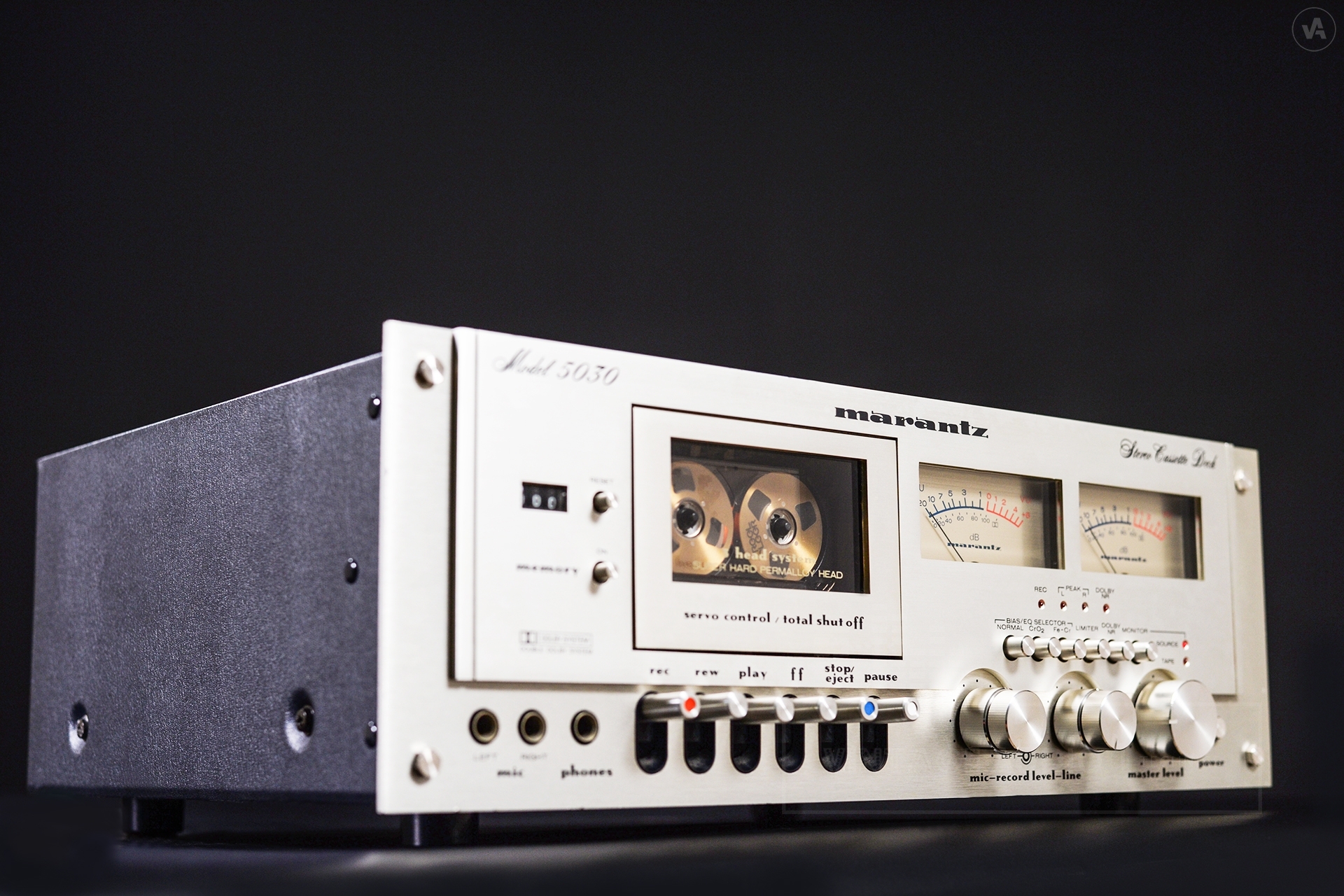

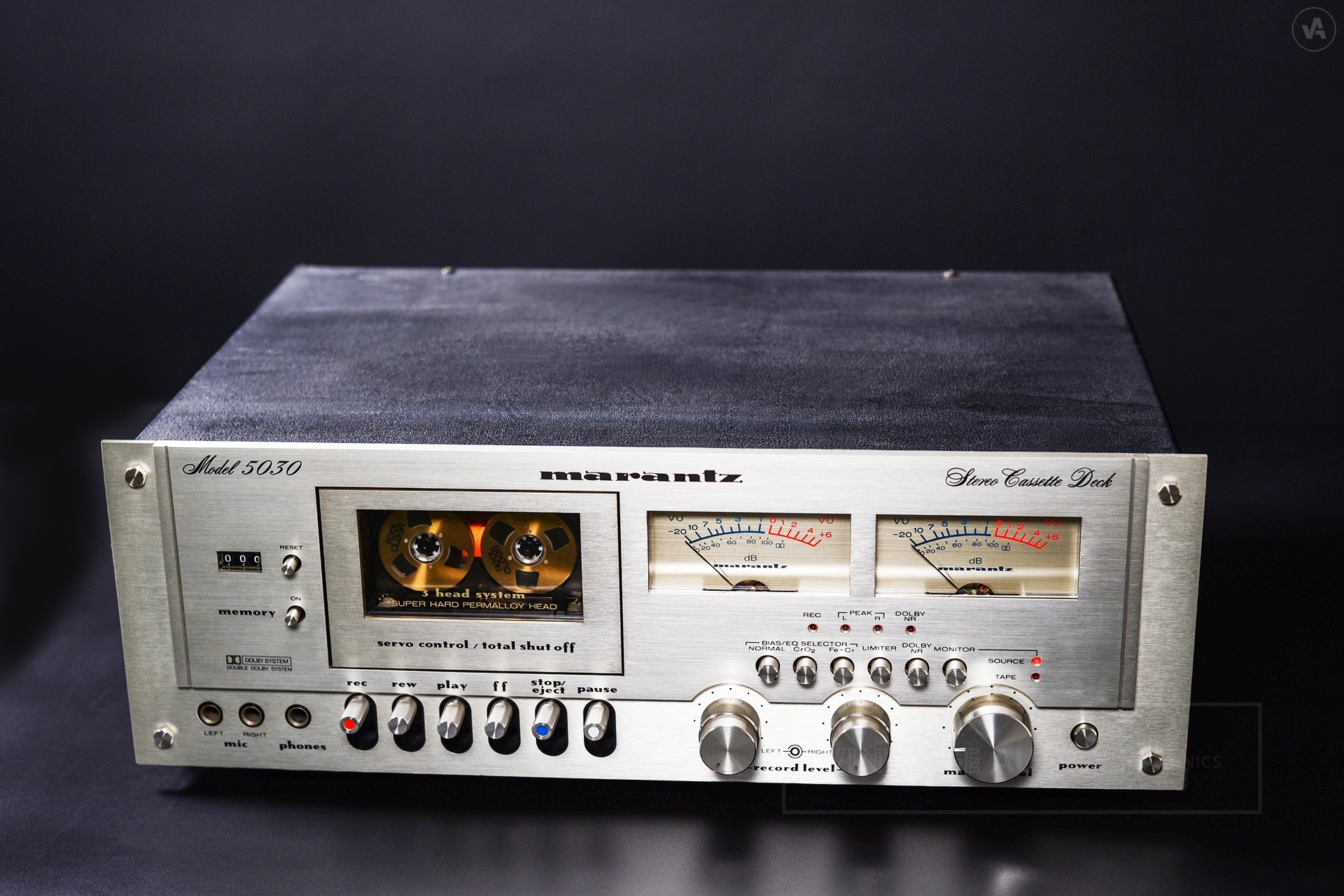

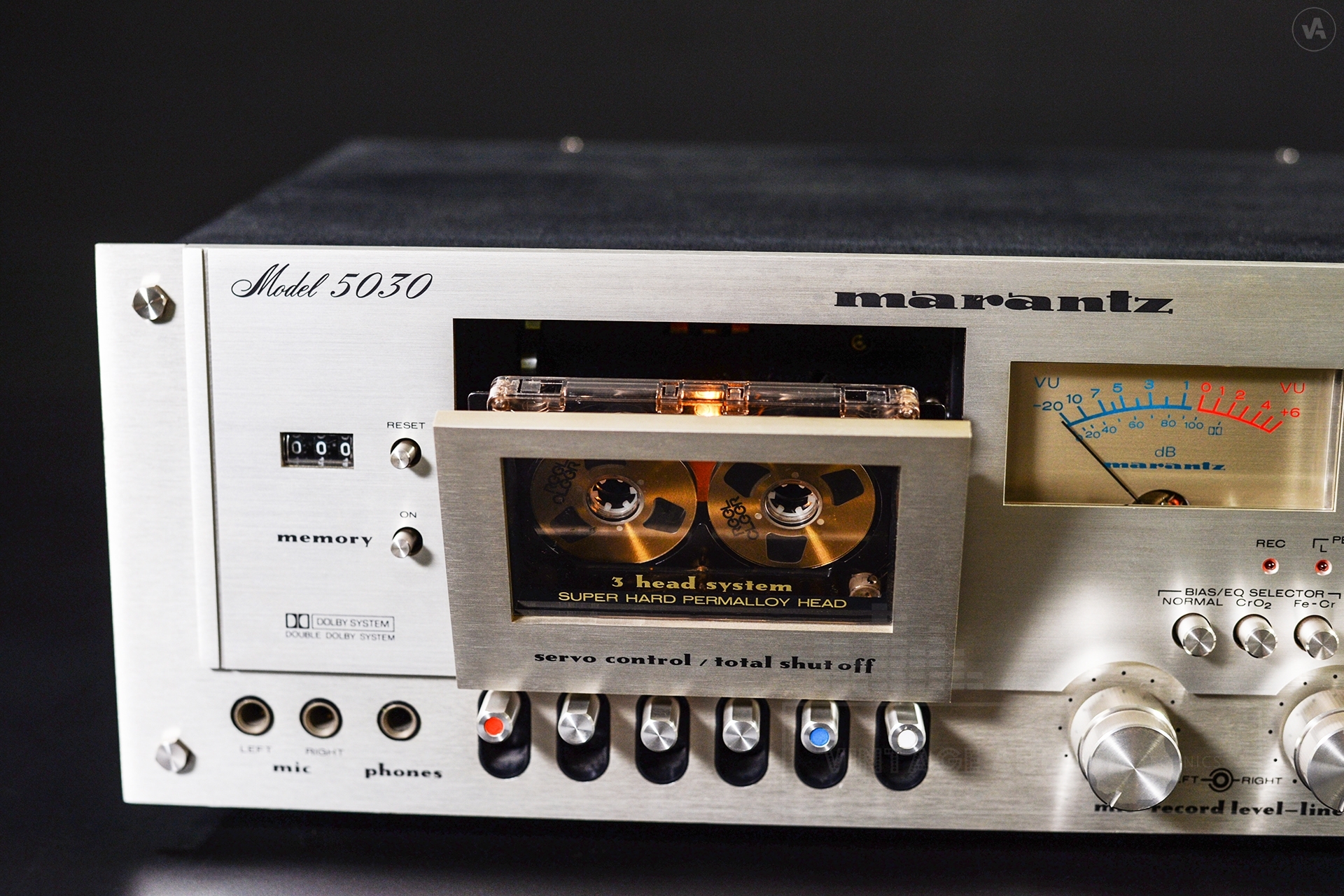

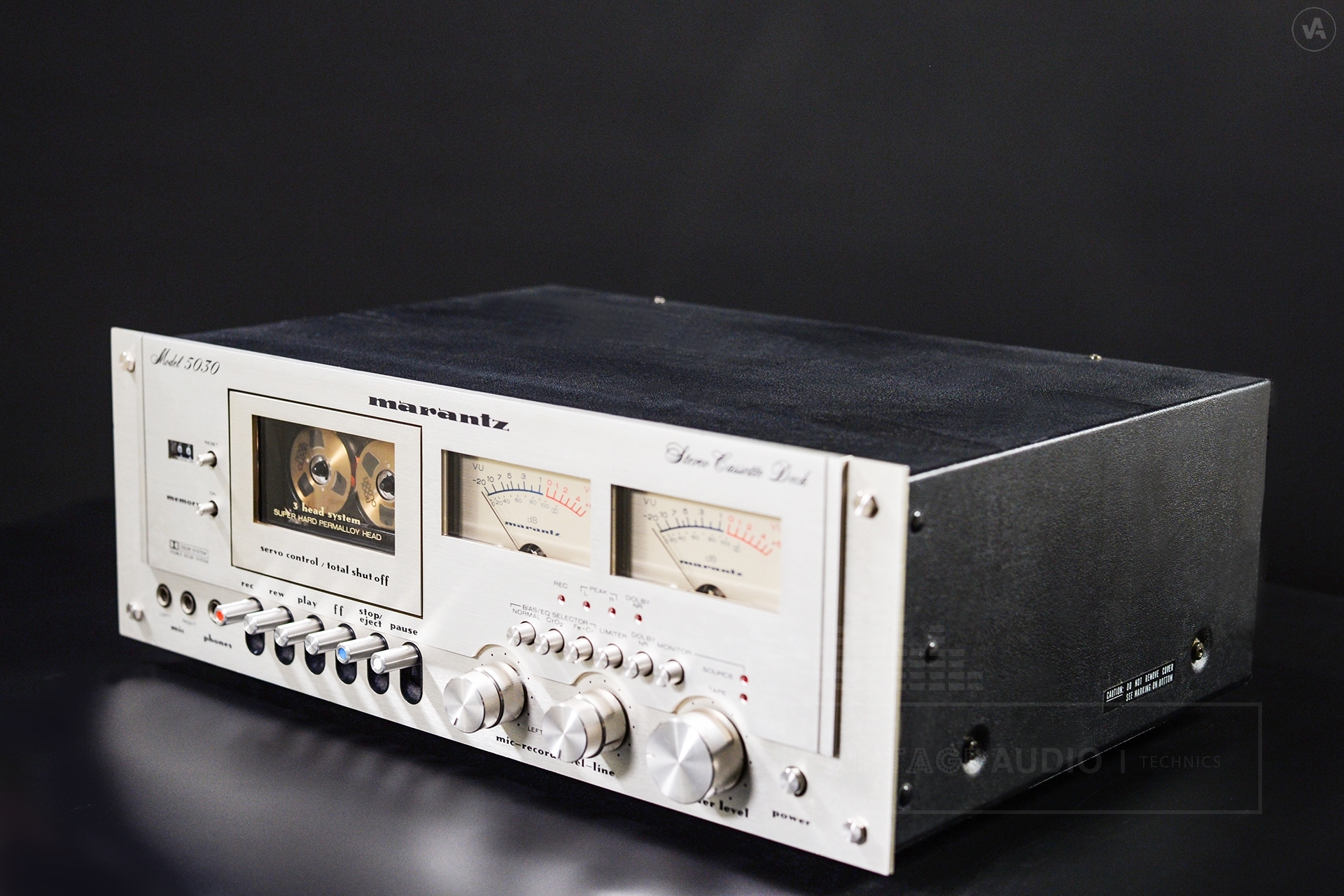

MARANTZ Model 5030
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | 3-head, single compact cassette deck |
Track System: | 4-track, 2-channel stereo |
Tape Speed: | 4.8 cm/s |
Heads: | 1 x Record Superhard Permalloy Head 1 x Playback Superhard Permalloy Head 1 x Erase Ferrite Head |
Motors: | 1 x DC Servo Controlled Motor |
Tape Type: | Type I FeCr CrO2 |
Recording System: | AC Bias |
Erasing System: | AC Erase |
Noise Reduction: | B |
Frequency Response (Dolby off): | 35Hz to 14kHz, ±3dB (Type I tape) 35Hz to 17kHz, ±3dB (CrO2 tape) 35Hz to 17kHz, ±3dB (FeCr tape) |
Signal to Noise Ratio: | Playback - 54dB Overall - 58dB (Dolby off) Overall - 64dB (Dolby on, 5kHz High Path Filter, OVU +5dB) |
Wow and Flutter: | 0.05% (NAB weighted) |
Output / Impedance: | 0.8V / 2.2kΩ (Line) 43mV / 150Ω (Headphone) |
Input Sensitivity / Impedance: | -76dBV / 12kΩ (Mic.) -26dBV / 220kΩ (Line) |

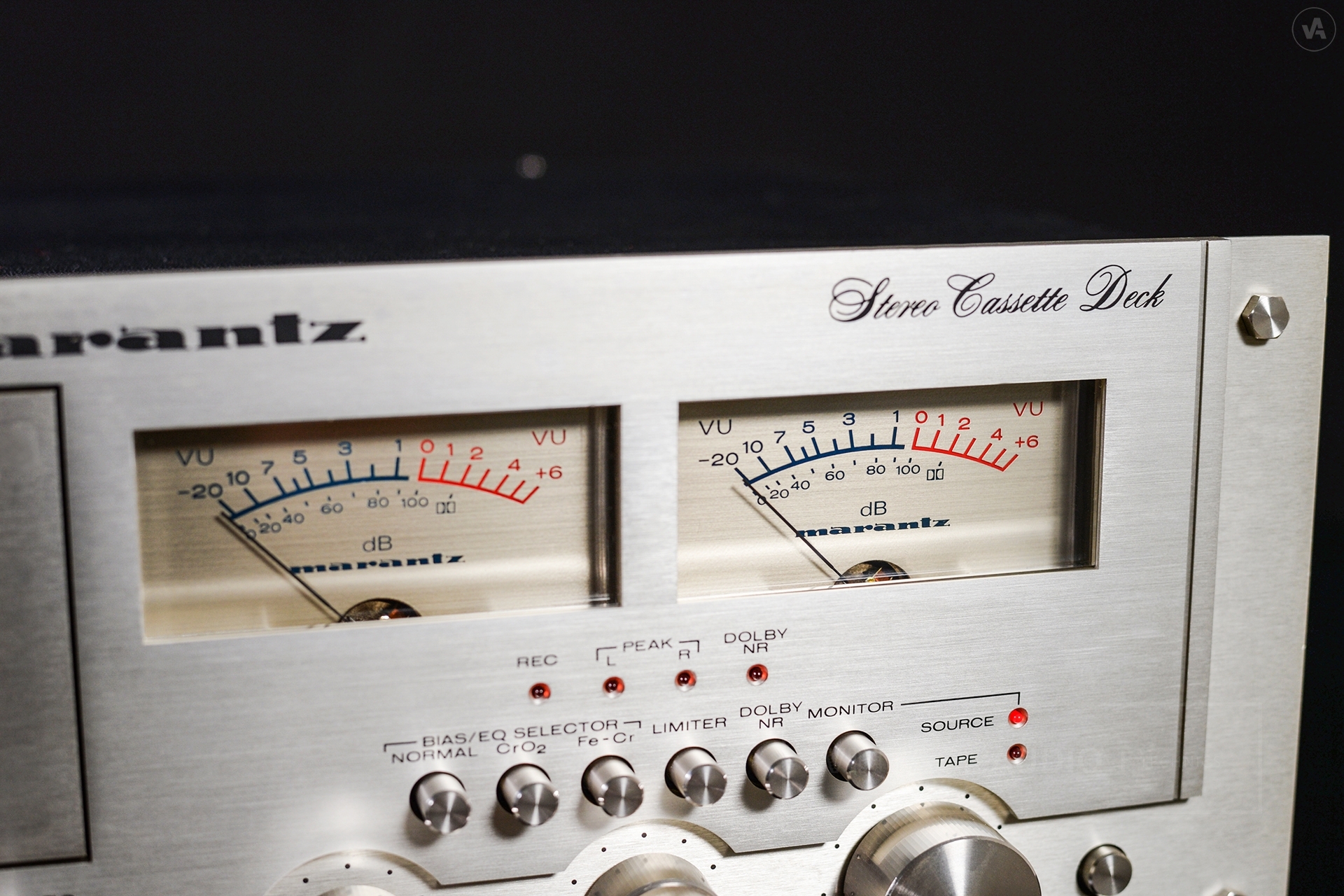

Meters: | 2 x VU type |
Fast Rewind & Forward Time: | 105 sec. |
Semiconductors: | 30 x Transistors 6 x IC’s 36 x Diodes 6 x LED’s |
Power Requirements: | AC 120V, 60Hz (For U.S.A. and Canada) AC 110 / 120 / 220 or 240V, 50 / 60Hz (For Europe) |
Power Consumption: | 13W |
Dimensions (W x H x D): | 17-3/8" x 5-3/4" x 11-11/16" |
Weight: | Around 15lbs |
Year: | 1978 |
