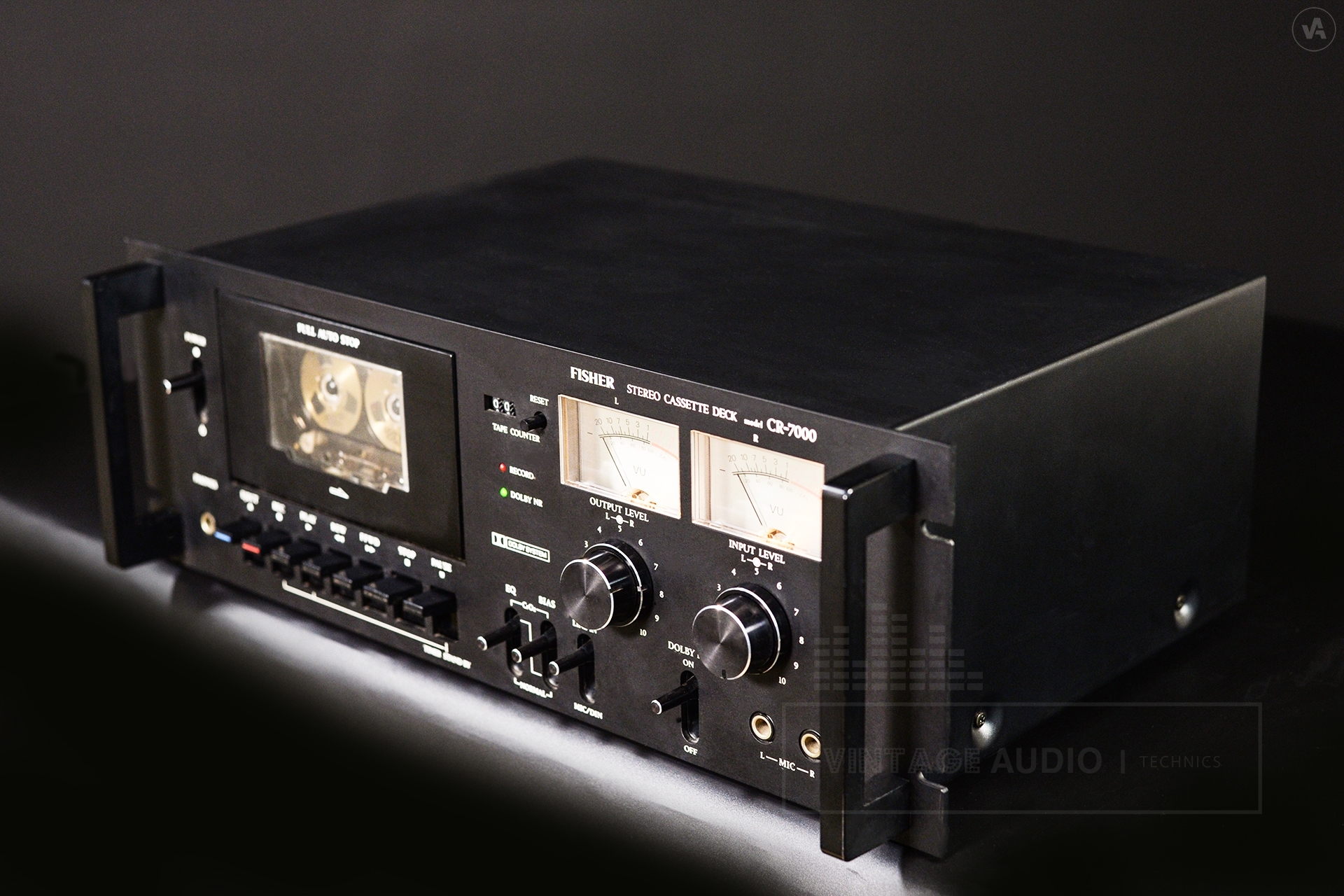

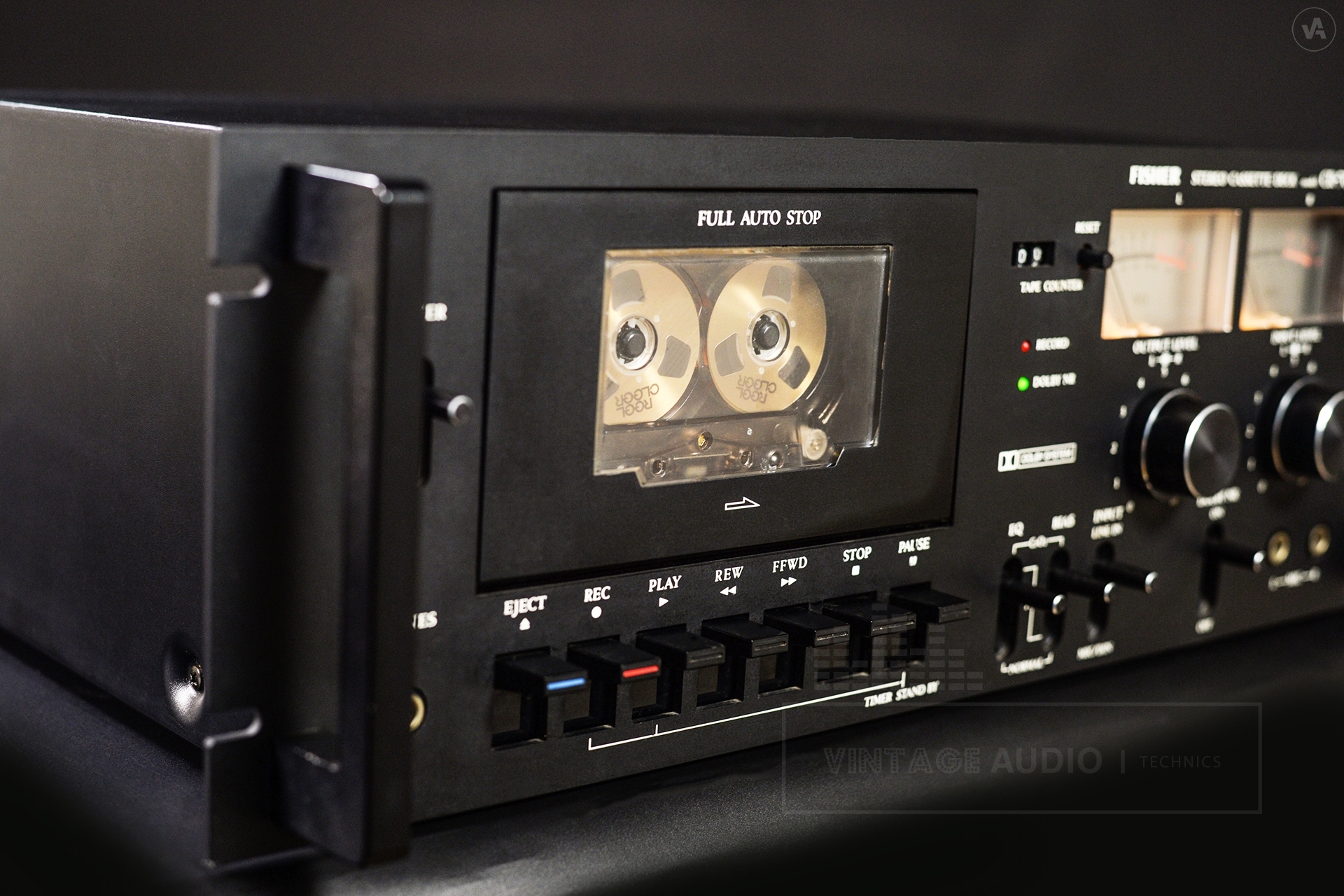

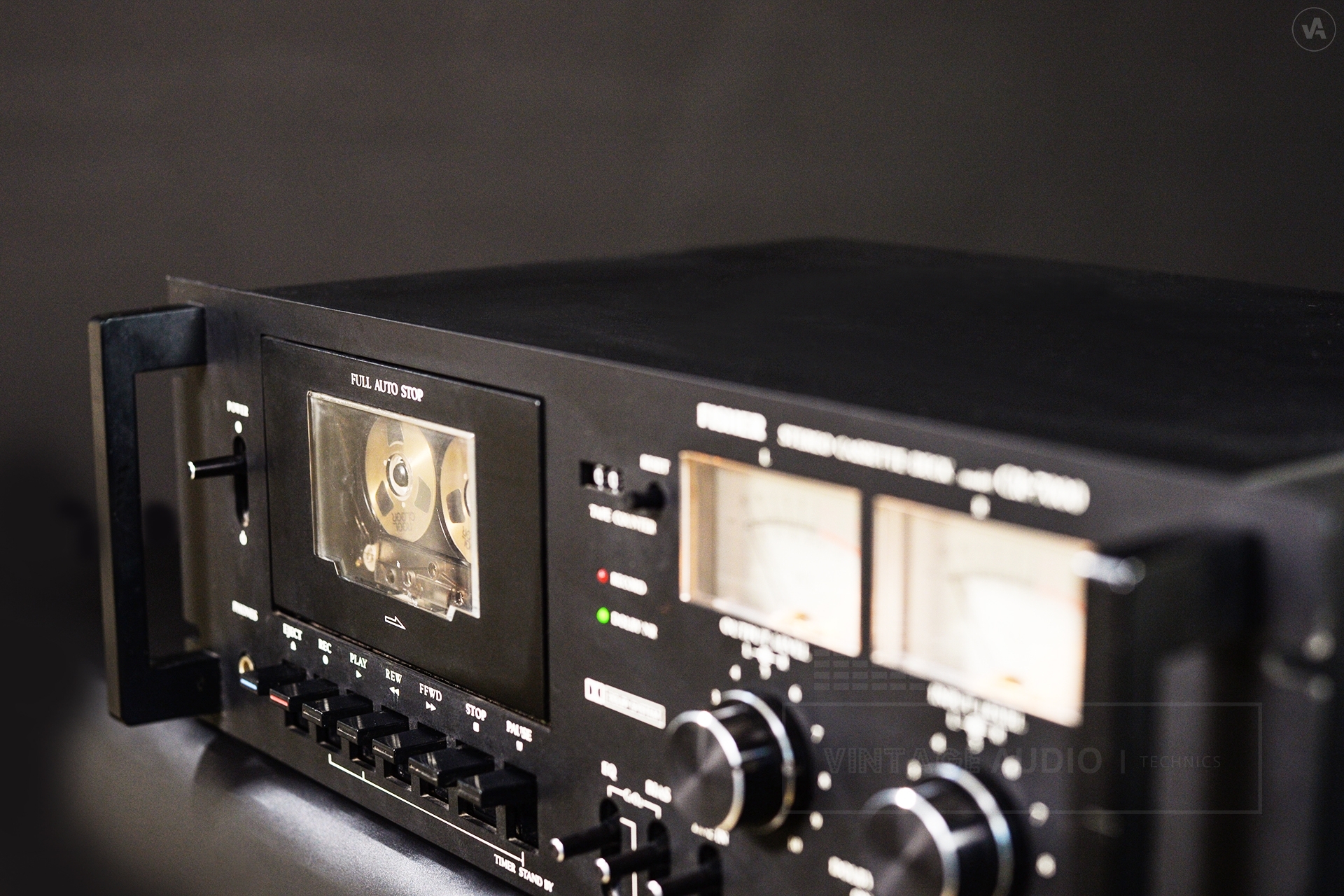

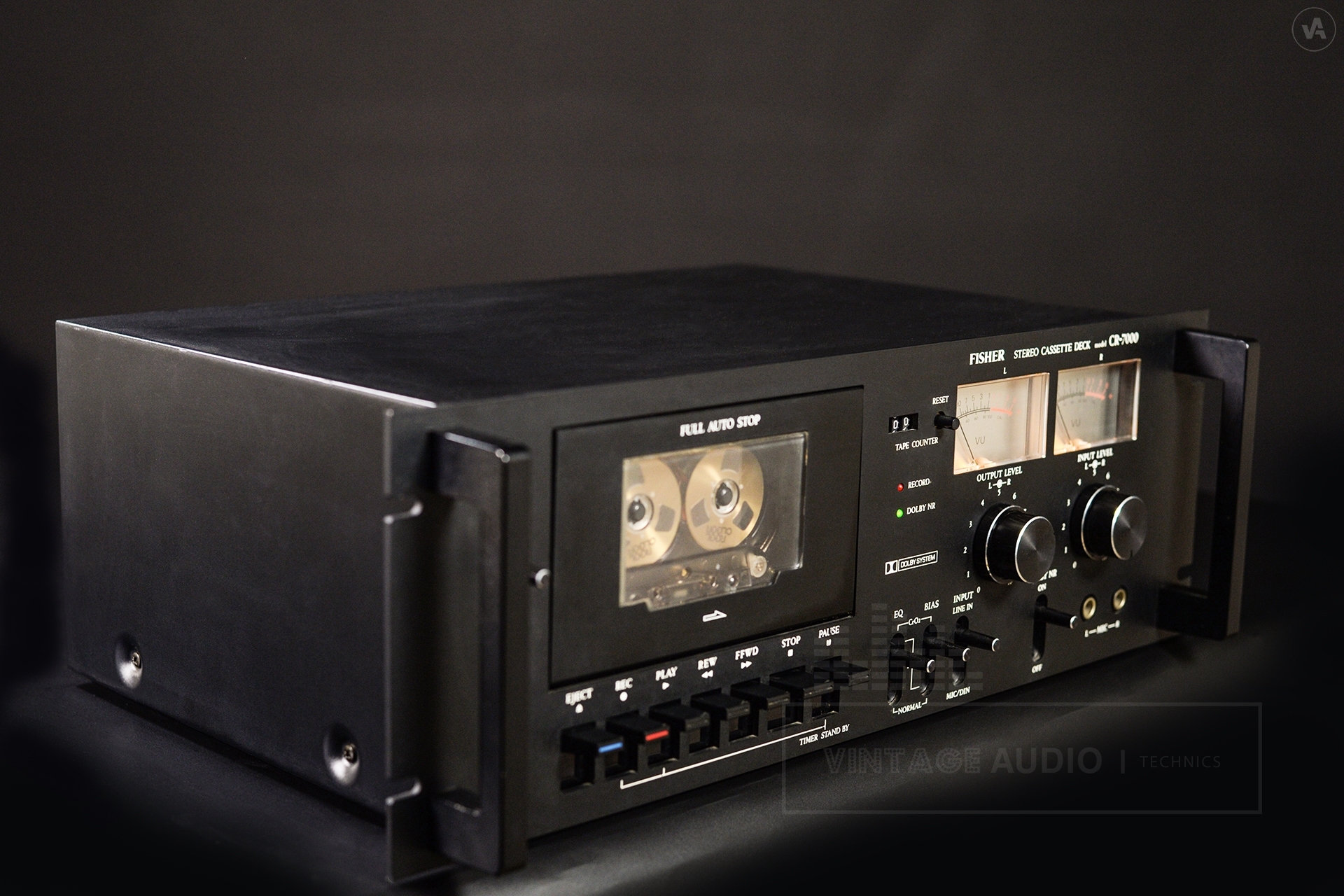

Fisher CR-7000
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Stereo Cassette Tape Deck |
Track System: | 4-track, 2-channel stereo |
Tape Speed: | 4.75 cm / s |
Recording System: | AC bias, ¼ track stereo |
Erasing System: | AC erasing, ½ track |
Recording Time: | 60 min. (C-60 cassette tape) |
Rewind & Fast Forward Time: | 90 sec. (C-60 cassette tape) |
Heads: | Combination Recording / Playback head x 1 Erase head x 1 |
Motors: | DC motor |
Tape Type: | Normal CrO2 FeCr |
Noise Reduction: | Dolby B |
Wow and flutter: | Less than 0.08% 0.05% (WRMS) |
Frequency Response: | 30Hz to 13kHz (Normal tape) 30Hz to 16kHz (CrO2 tape) 30Hz to 16kHz (FeCr tape) |
S / N Ratio: | 54dB (Dolby D switch Off) 64dB (Dolby D switch On) |
Input sensitivity / Impedance: | 0.3mV / 10kΩ (MIC) 1mV / 10kΩ (REC / PLAY) 60mV / 60kΩ (LINE) |
Output Level / Impedance: | 0.6V / 3kΩ (LINE OUT) 0.6V / 3kΩ (REC / PLAY) 30mV / 8Ω to 10kΩ (HEADPHONES) |
Features: | Timer Stand-By 3-Position Bias / Equalizer Switch 2-Gang Input and Output Level Controls |
Finish: | Black or Silver |
Power Source: | AC 110 / 125 / 220V, 50 / 60Hz |
Power Consumption: | 7W |
Dimensions (W x H x D): | 450 x 124 x 234mm 450 x 155 x 300mm (Including handles and front panel) |
Weight: | 6kg |
Year: | 1978 |
