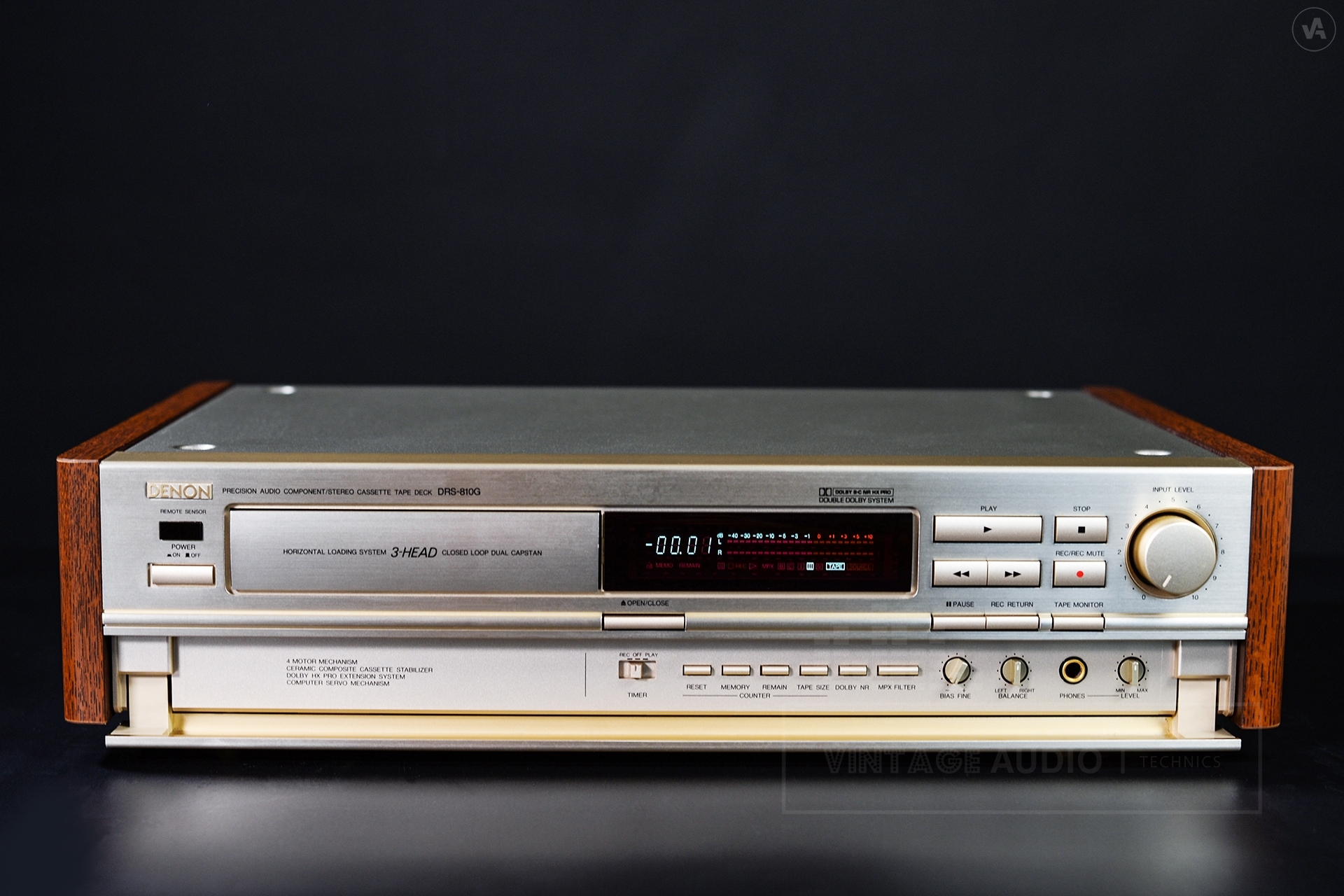

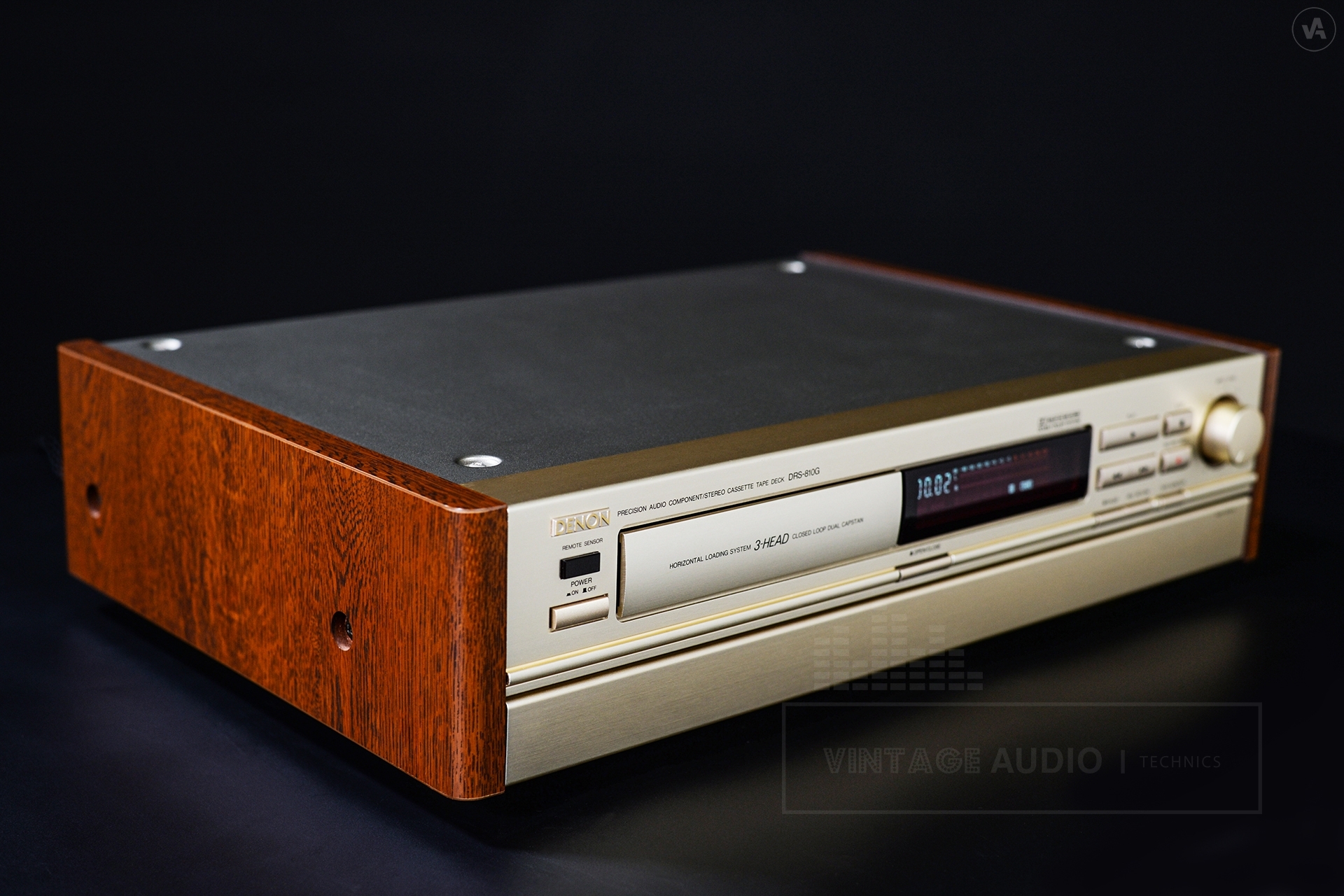

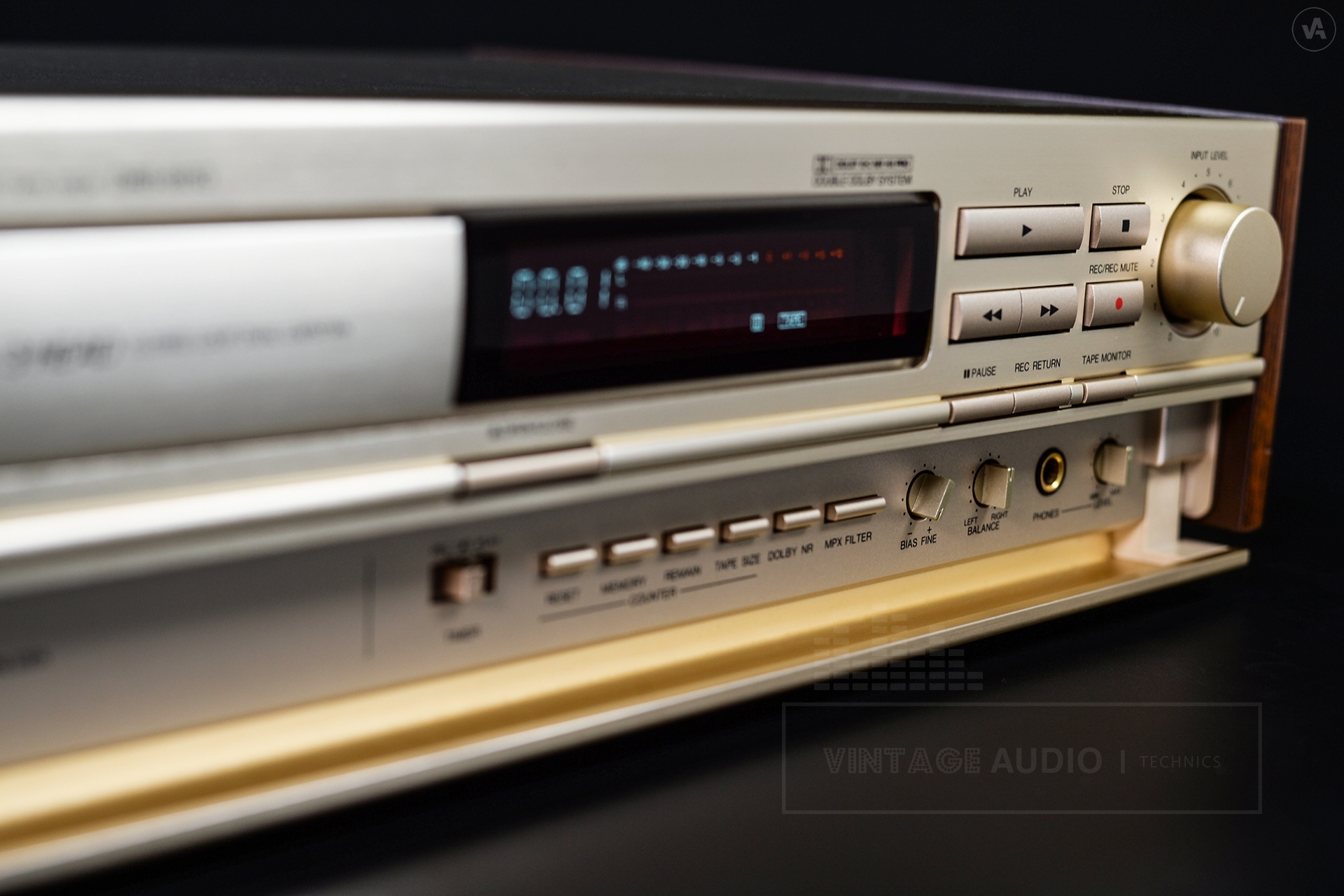

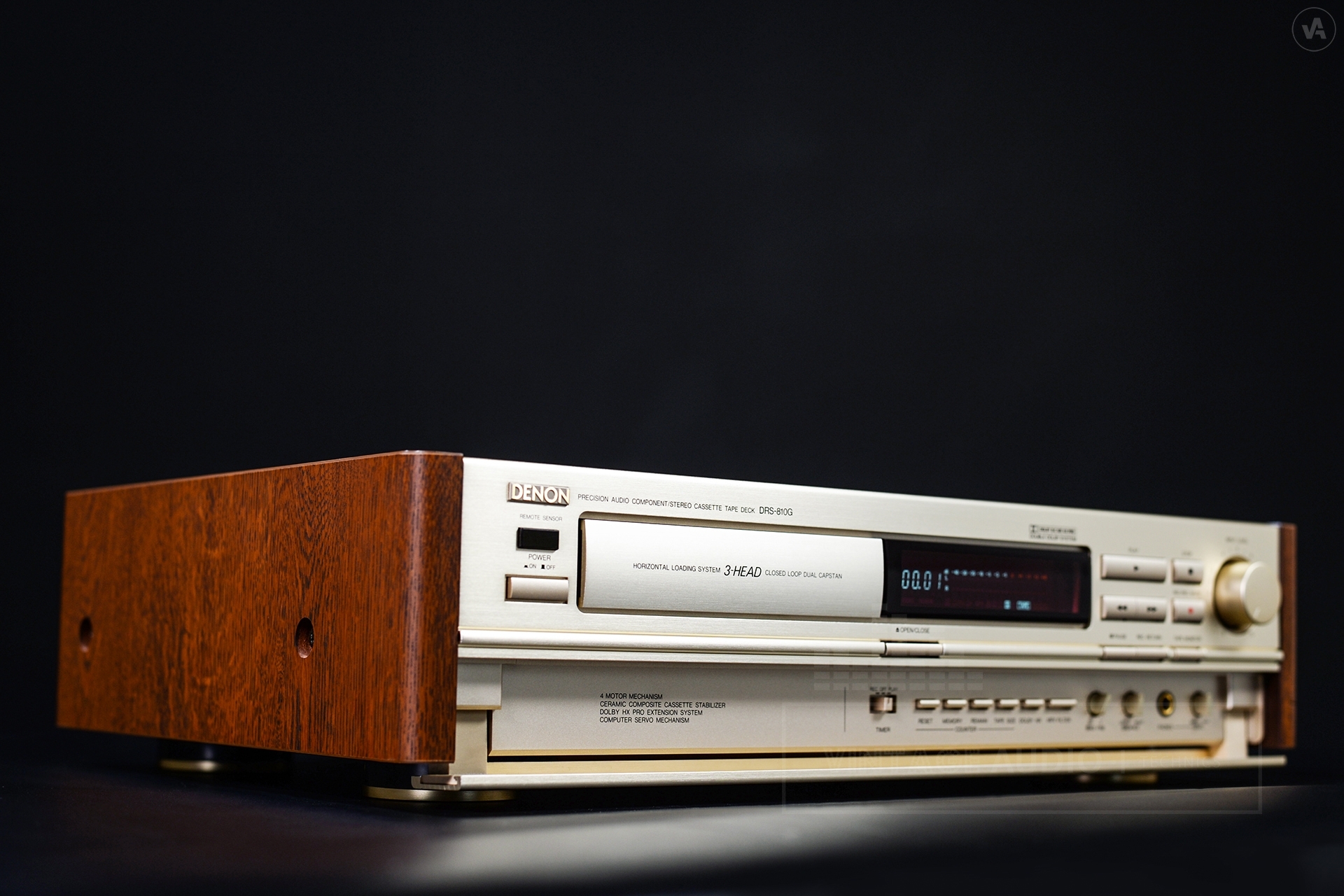

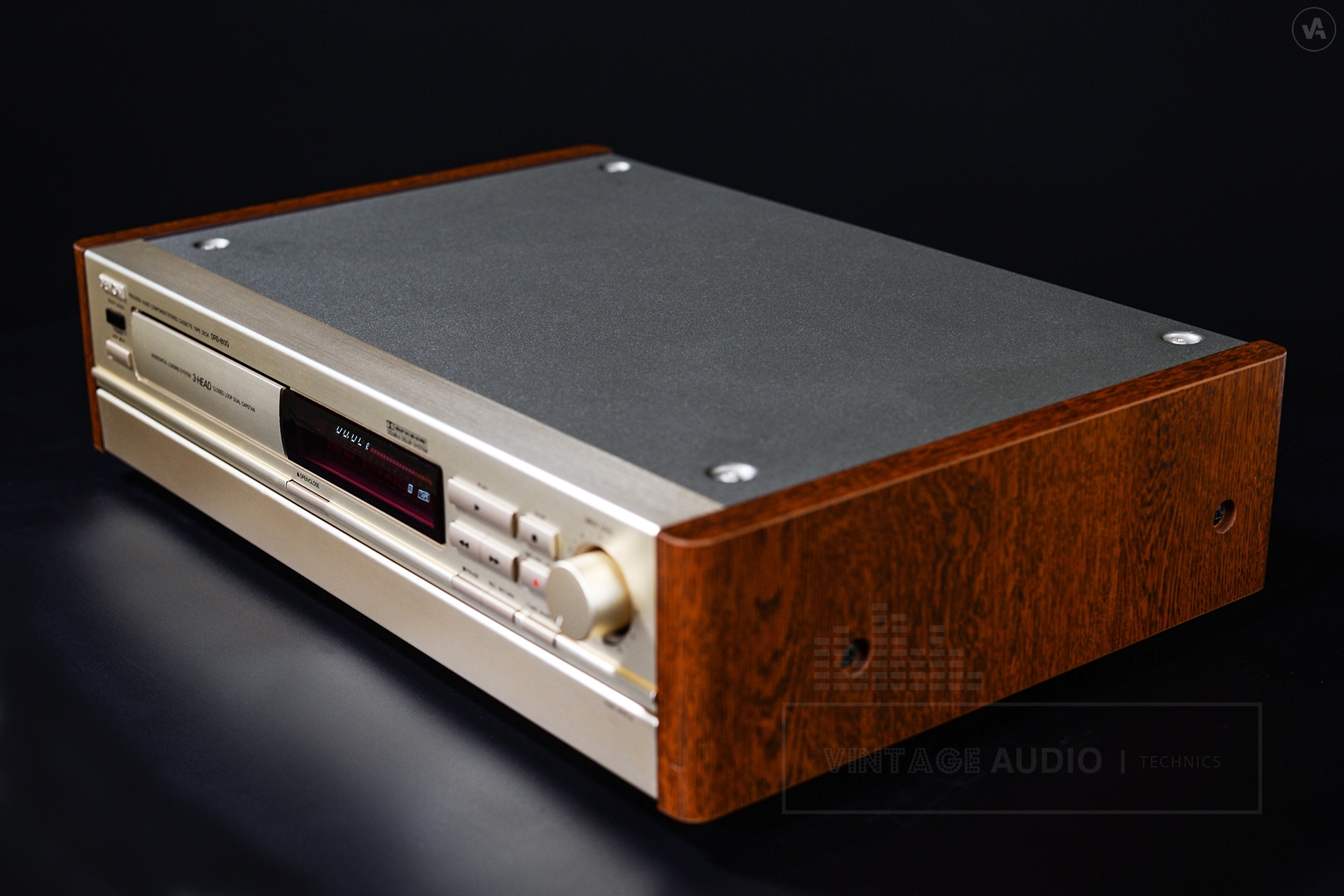

DENON DRS-810G
Type: | Cassette deck |
Track system: | 4-track 2 channel stereo |
Tape selector: | 3 steps auto tape selector (Normal, High (CrO2), Metal) |
Speed: | 4.76 cm/s (1⅞ ips) |
Heads: | Recording - Permalloy head x 1 Playback - Permalloy head x 1 Erase - Double gap ferrite head x 1 |
Motors: | For capstan - Electronically controlled DC motor For reel - DC motor For mechanical control - DC motor For loading - DC motor |
Wow and flutter: | ±0.1% W. Peak (EIAJ) 0.038% WRMS (JIS) |
Fast winding time about: | 100 sec. (C-60 tape) |
Comprehensive frequency characteristics (Input -20VU): | Metal tape - 15Hz to 22kHz (20Hz to 20kHz, ±3dB) |
Total signal-to-noise ratio: | More than 75dB (3% THD, CCIR / ARM, Dolby C NR on) |
Noise Reduction: | Dolby B / C Dolby HX Pro |
Recording Bias: | Approx. 105kHz |
Features: | Auto tape selector Auto tape monitor Rec. return Selection of music search before and after 1 song 4-digit linear counter with remaining amount display |
Shock Absorption: | Cassette Stabilizer |
Input terminal: | Line - 80mV / 50kΩ unbalanced |
Output terminal (Vol. Max): | Line - 620mV / 47kΩ loaded Headphone - 1.5mW / 8Ω load (Compatible with 8Ω to 1.2kΩ headphones) |
Power supply: | AC 100V, 50 / 60Hz |
Power consumption: | 15W |
Supplied: | Wireless remote control RC-425 |
Dimensions (W x H x D): | 470 x 122 x 320mm |
Weight: | 7.4 kg |
Year: | About 1991 |
