MITSUBISHI MC-8000

Impedance:
300Ω (Balance)
75Ω (Unbalance)

Tuning range: 525 to 1605kHz
Sensitivity: 600 µV / m (S / N 26dB)
Image response ratio: 40dB
Aerial: Ferrite bar aerial

Tuning range: 150 to 350kHz
Sensitivity: 2 mV / m (S / N 26dB)
Image response ratio: 40dB
Aerial: Ferrite bar aerial

Power output (1kHz, both channels driven into 8Ω, THD 0.5%):
25W + 25W (4Ω)
20W + 20W (8Ω)
Total harmonic distortion: 0.05% (10W per channel power output, 4Ω)
Frequency response: 30Hz to 20kHz, ±1.5dB
Hum and Noise: 60dB (DIN)

Bass: ±8dB (100Hz)
Treble: ±8dB (10kHz)

Type: Electronically controlled fully automatic operation
Drive mechanism: Belt drive
Motors: DC servomotor
Platter: 30cm, aluminum die-cast
Speed: 33-1/3, 45 rpm
Wow and flutter: 0.06% (W.R.M.S)
S / N ratio:
55dB (IEC-B)
65dB (DIN-B)

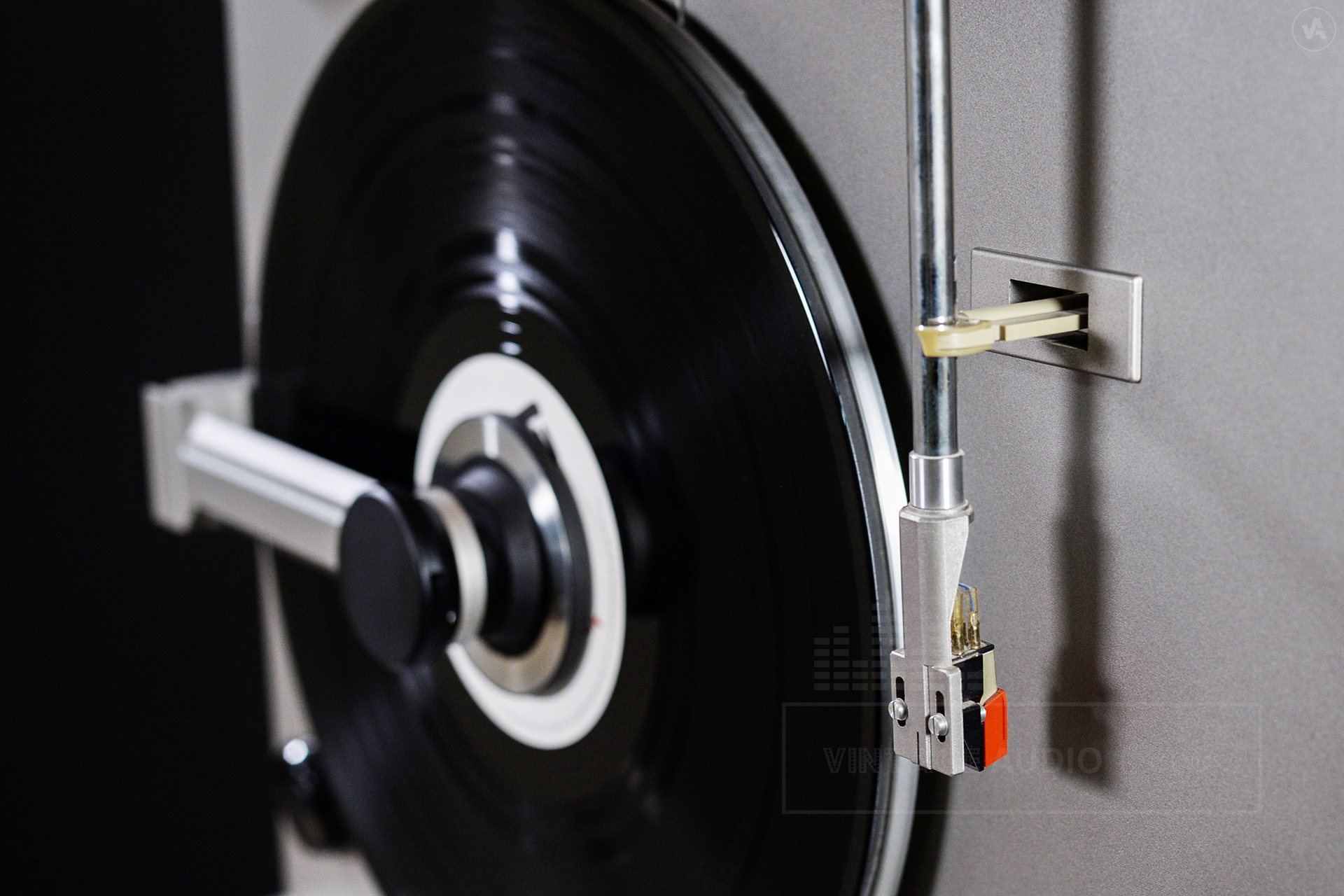

Type: Linear tracking, straight tubular type, statically balanced
Cartridge: AT-71 (Audio technical)
Stylus: Diamond
Stylus pressure: 2gr

Tracks: 4 track, 2 channel
Tape speed: 4.75 cm / s
Recording system: AC bias (85kHz)
Erasing system: AC erasing (85kHz)
Playback equalization:
3180 µs / 125 µs (Normal tape)
3180 µs / 70 µs (Special and Metal tape)
Frequency response:
30Hz to 13kHz (Normal tape)
30Hz to 16kHz (Special and Metal tape)
S / N ratio:
Dolby NR Off - 45dB (DIN)
Dolby NR On - 52dB (DIN)
Wow and flutter: 0.07% (W.R.M.S)
Channel separation: 25dB
Crosstalk: 50dB
Motors: DC servomotor

T shaped FM aerial
AM lead aerial
Screwdriver (For Preset FM adjustment)
Black mat 17.3cm (For transparent or coloured records)
Wrench (For fitting turntable)
Cloth cover
