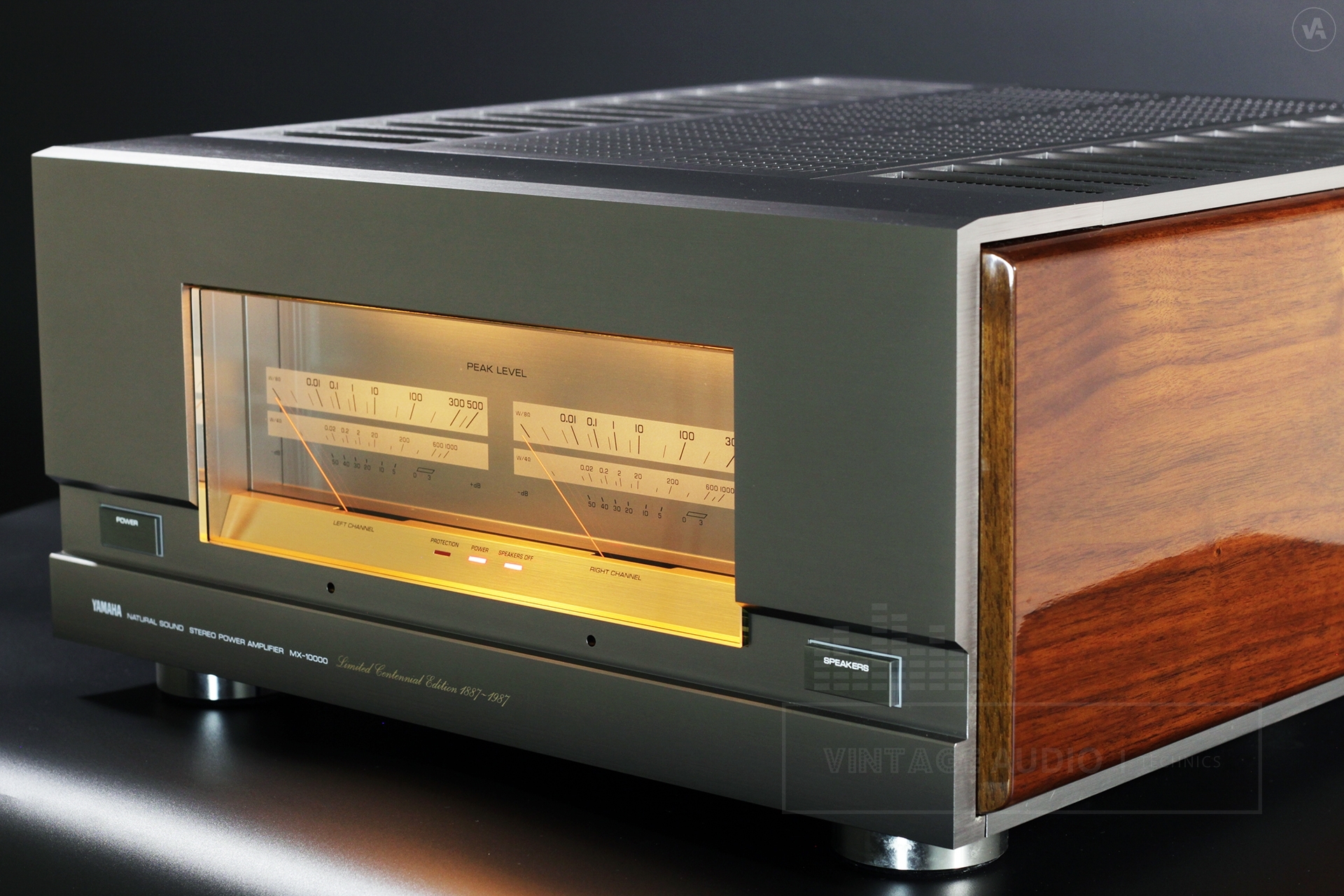

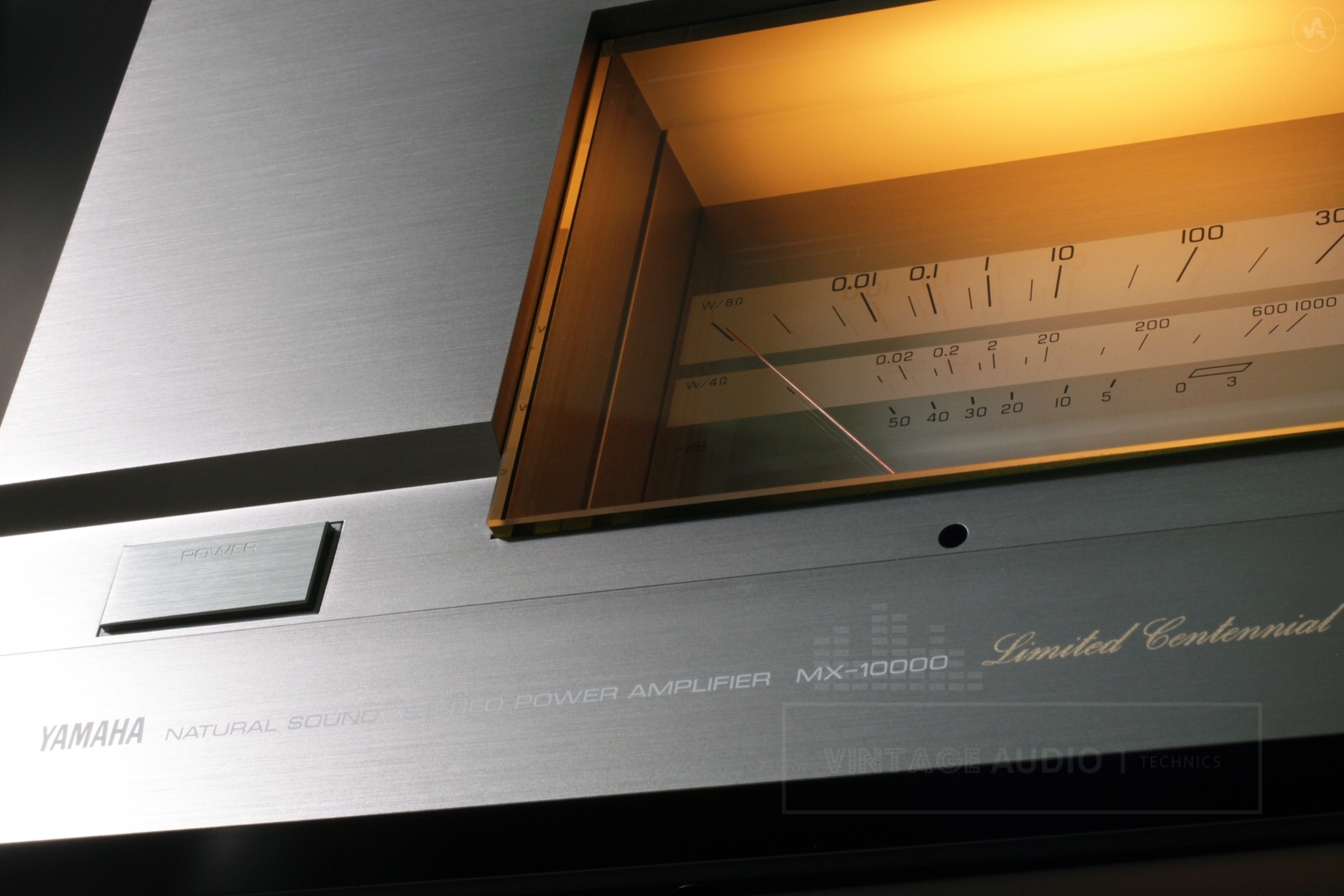

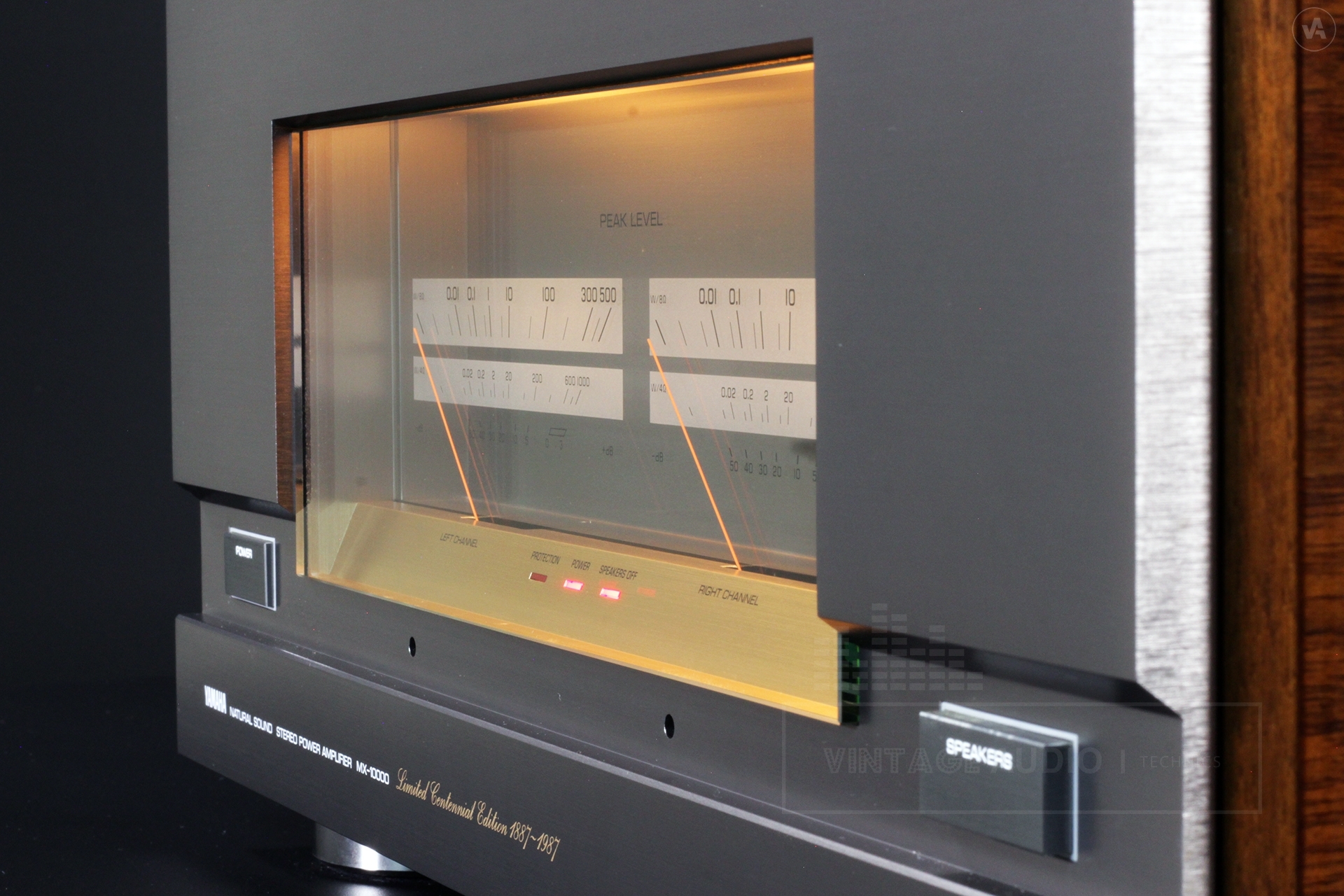

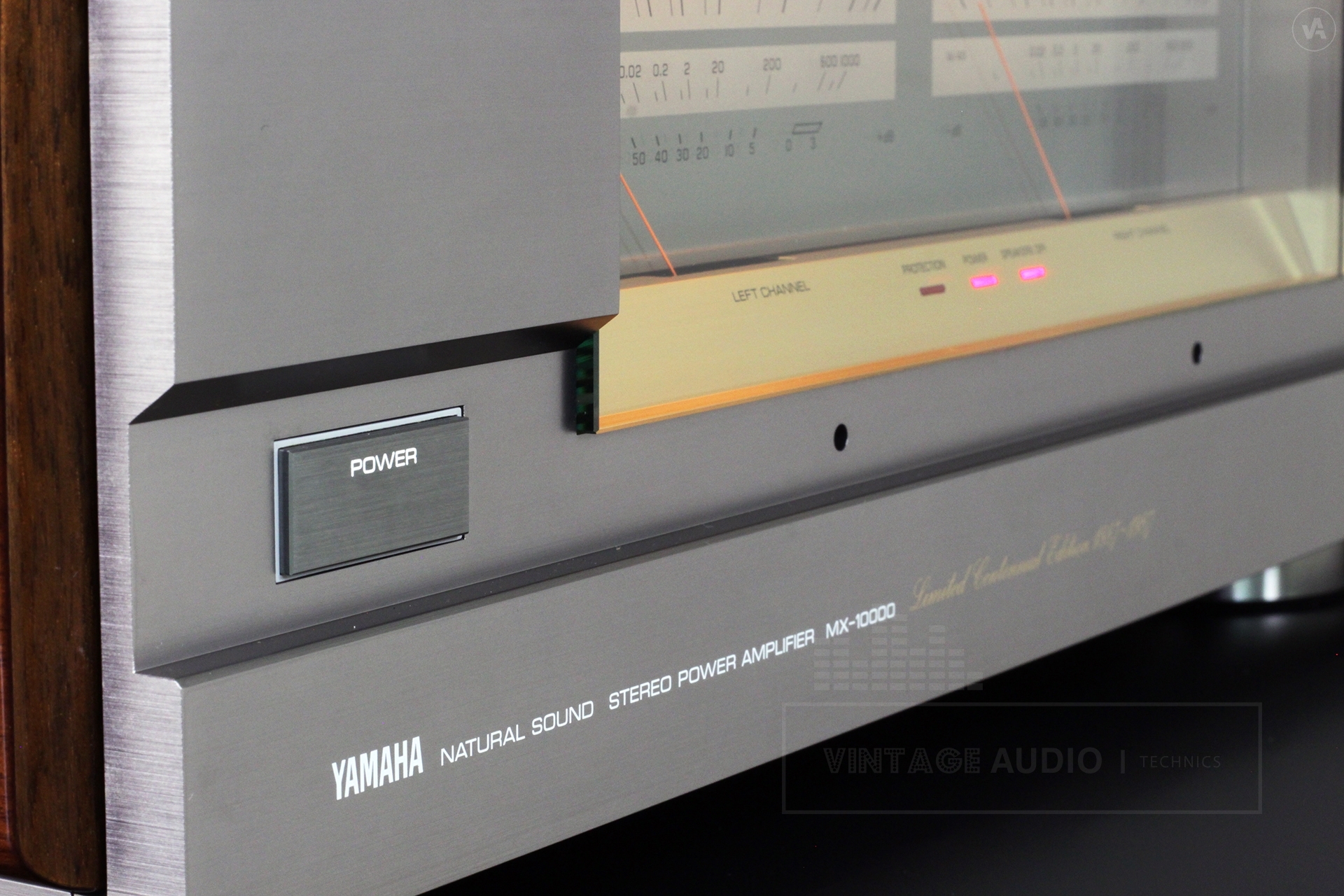

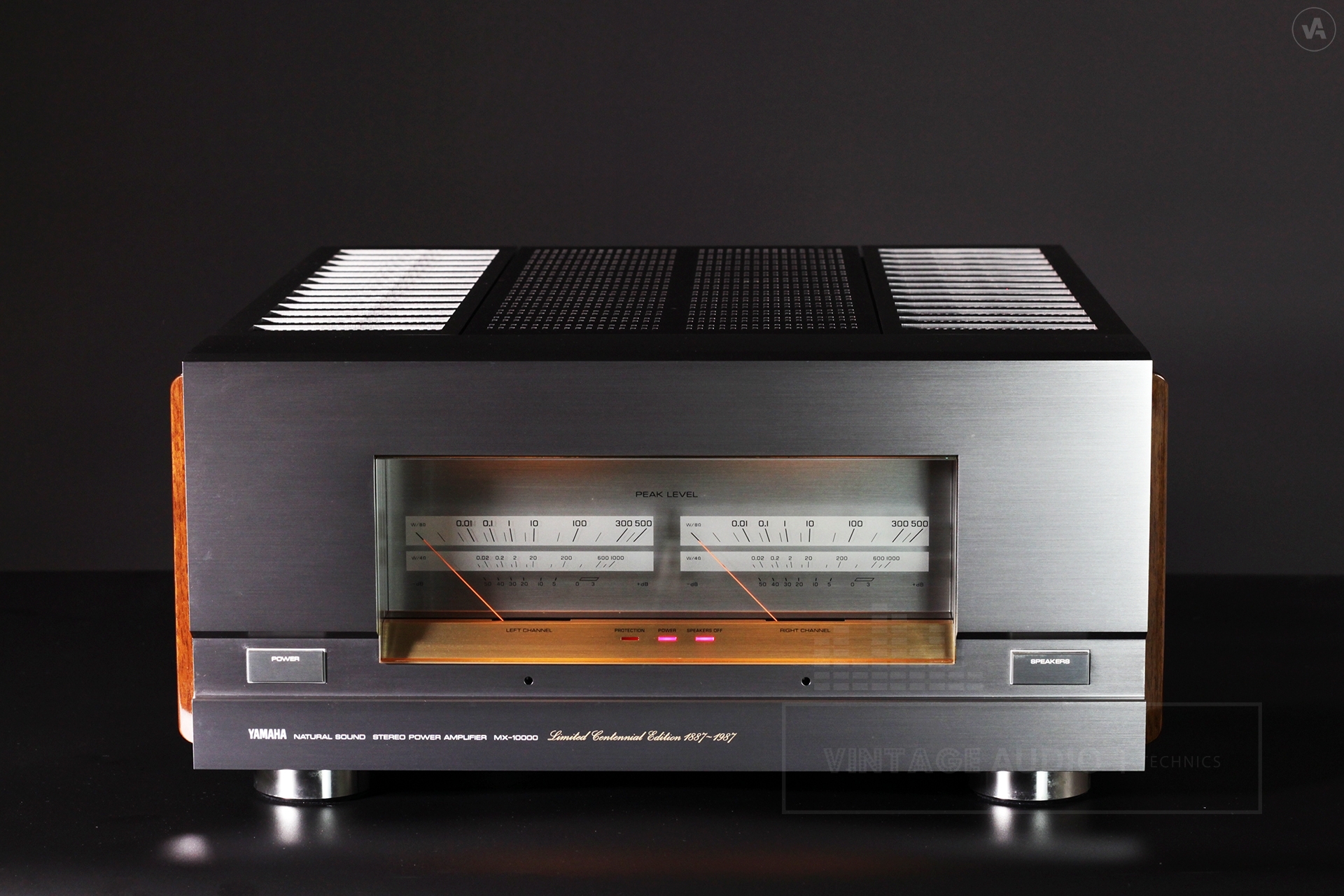

Yamaha MX-10000
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Power amplifier |
Rated Output Power (20Hz ~ 20kHz): | 8Ω Load - 250W + 250W (0.001% THD) 6Ω load - 300W + 300W (0.001% THD) 4Ω load - 400W + 400W (0.002% THD) |
Dynamic Power (1kHz): | 8Ω load - 350W + 350W 6Ω load - 450W + 450W 4Ω load - 600W + 600W 2Ω load - 900W + 900W 1Ω load - 1200W + 1200W |
Damping: | 1000 (1kHz, 6Ω) |
Input Sensitivity / Impedance: | 1.5V / 25kΩ |
Frequency response: | 2 Hz at 300 000Hz (+0dB -2dB) |
Total harmonic distortion: | 0.0005% (20Hz - 20kHz, 150W / h, 6Ω) |
The S / N ratio: | From 132dB (IHF-correction) |
Residual noise: | 10μV (IHF correction) |
Channel separation: | 90dB (20Hz - 20kHz) |
Power supply: | AC100V 50 / 60Hz |
Power consumption: | 600W |
Dimensions (W x H x D): | 475 × 220 × 543mm |
Weight: | 43kg |
Year: | 1987 |
