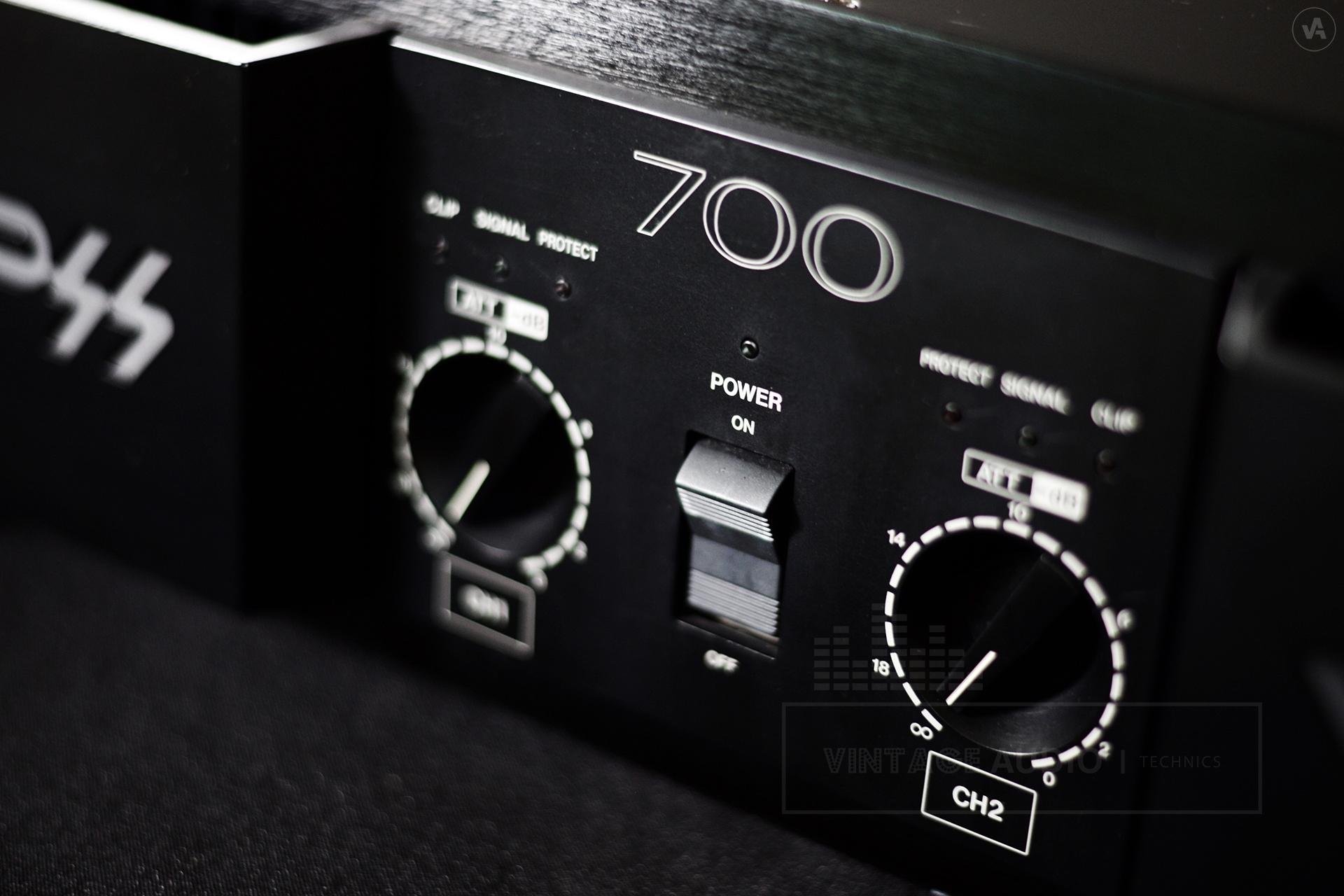

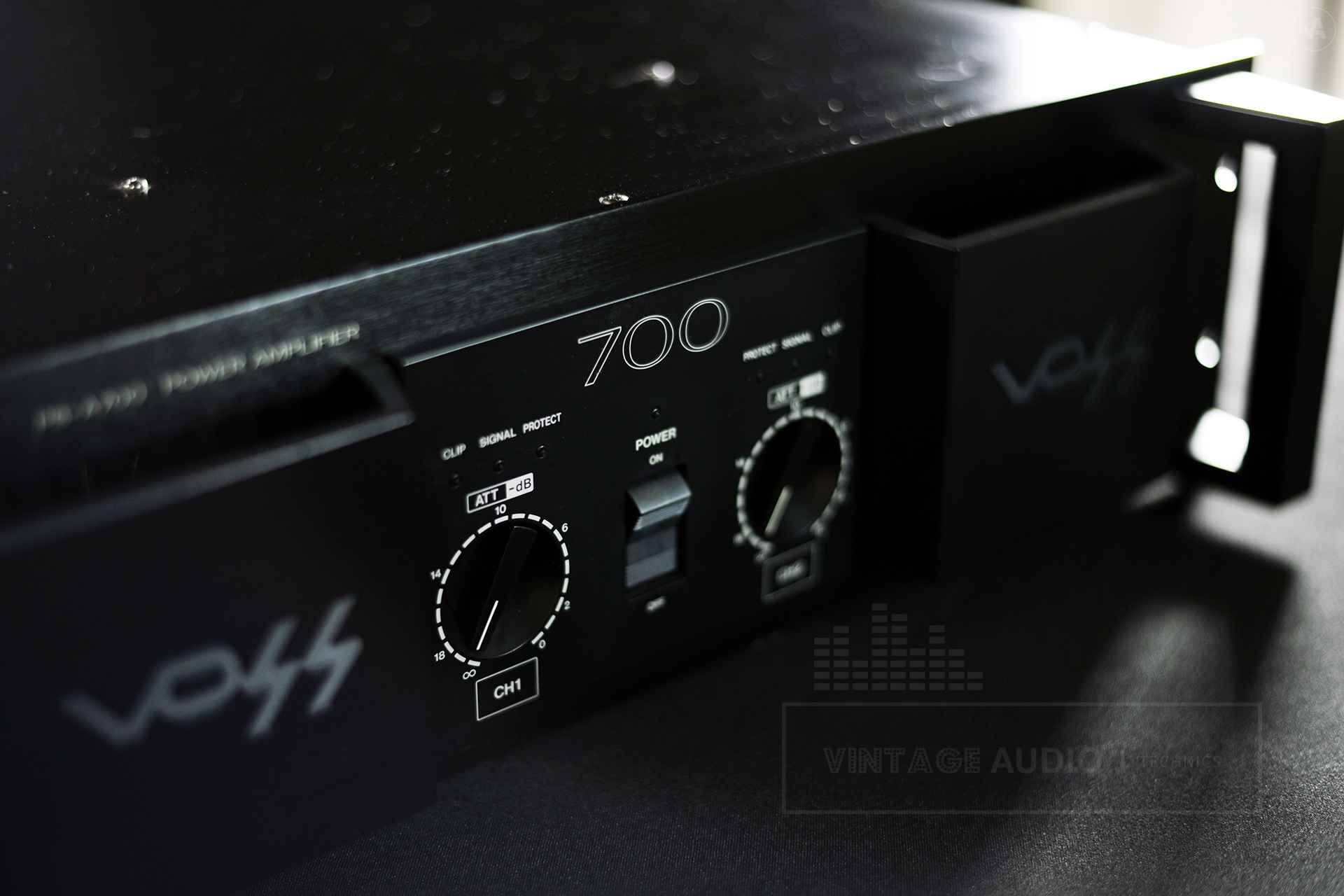

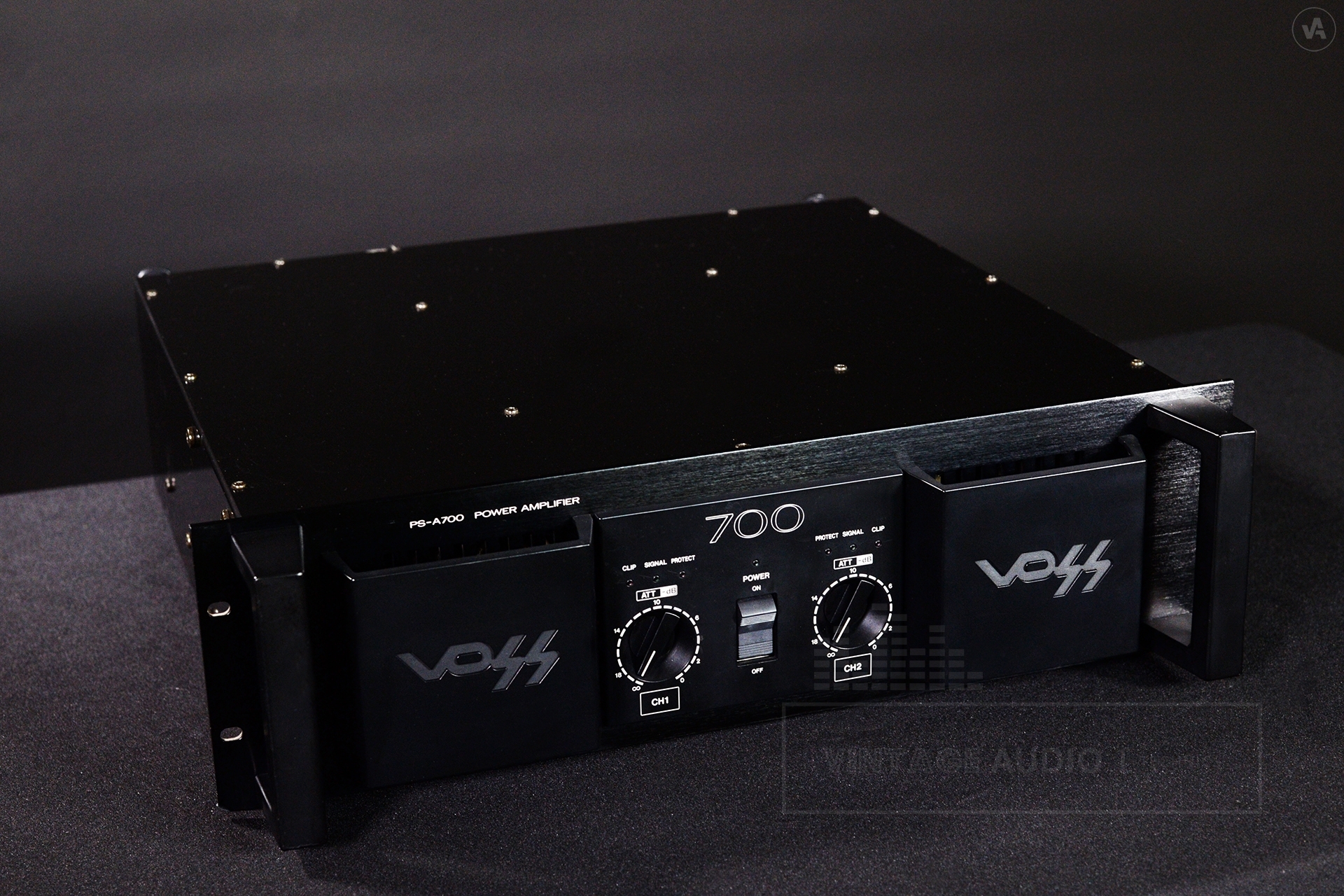

Victor VOSS PS-A700
nef 5724
Type: | 2-channel Power Amplifier |
Rated output: | 400W + 400W (20Hz to 20kHz, 0.05% distortion, 8Ω, EIAJ) |
Maximum output: | 700W + 700W (20Hz to 20kHz, 0.1% distortion, 4Ω, EIAJ) |
Maximum monaural output: | 1400W (20Hz to 20kHz, 0.1%, 8Ω distortion, EIAJ) |
Frequency characteristics: | 20Hz to 20kHz, ±1dB |
Total harmonic distortion: | 0.05% or less (20Hz to 20kHz, 400W + 400W, 8Ω) |
Crosstalk: | 70dB or higher (20kHz) |
S / N Ratio: | 110dB or more (Input short circuit, IHF-A WTD) |
Input sensitivity: | +4 dBs (0 dBs = 0.775V) |
Voltage amplification: | 33dB |
Input impedance: | 20kΩ (Balanced) 20kΩ (Unbalanced) |
[Load Impedance] | Stereo: 4Ω to 16Ω (Normal) 2Ω to 4Ω (Low) Mono: 8Ω to 16Ω (Normal) 4Ω to 8Ω (Low) |
Input connector: | XLR-3-31 / XLR-3-32 (Balance) 6.3mm (Phono jack) |
[Finish] | Front panel: Black alumite finish (Munsell N1 approximation) Others: Black semi-gloss paint (Munsell N1 approximation) |
Power supply: | AC 100V, 50 / 60Hz |
Power consumption: | 910W (Electrical Appliance and Material Control Law) 1400W (Rated output) |
External dimensions (W x H x D): | 482 x 144 x 484mm |
Weight: | Approx. 35kg |
Year: | 2000 |
