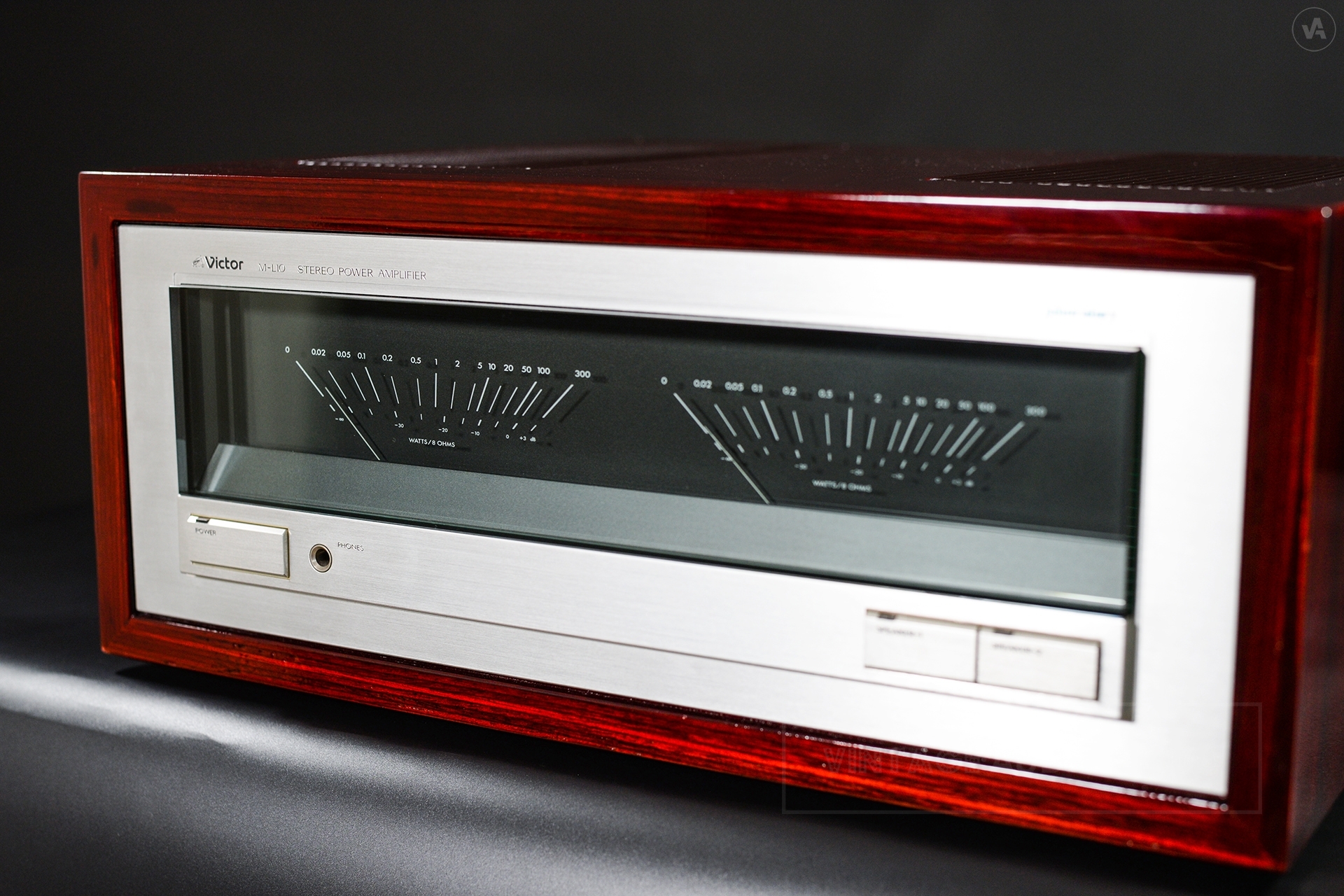

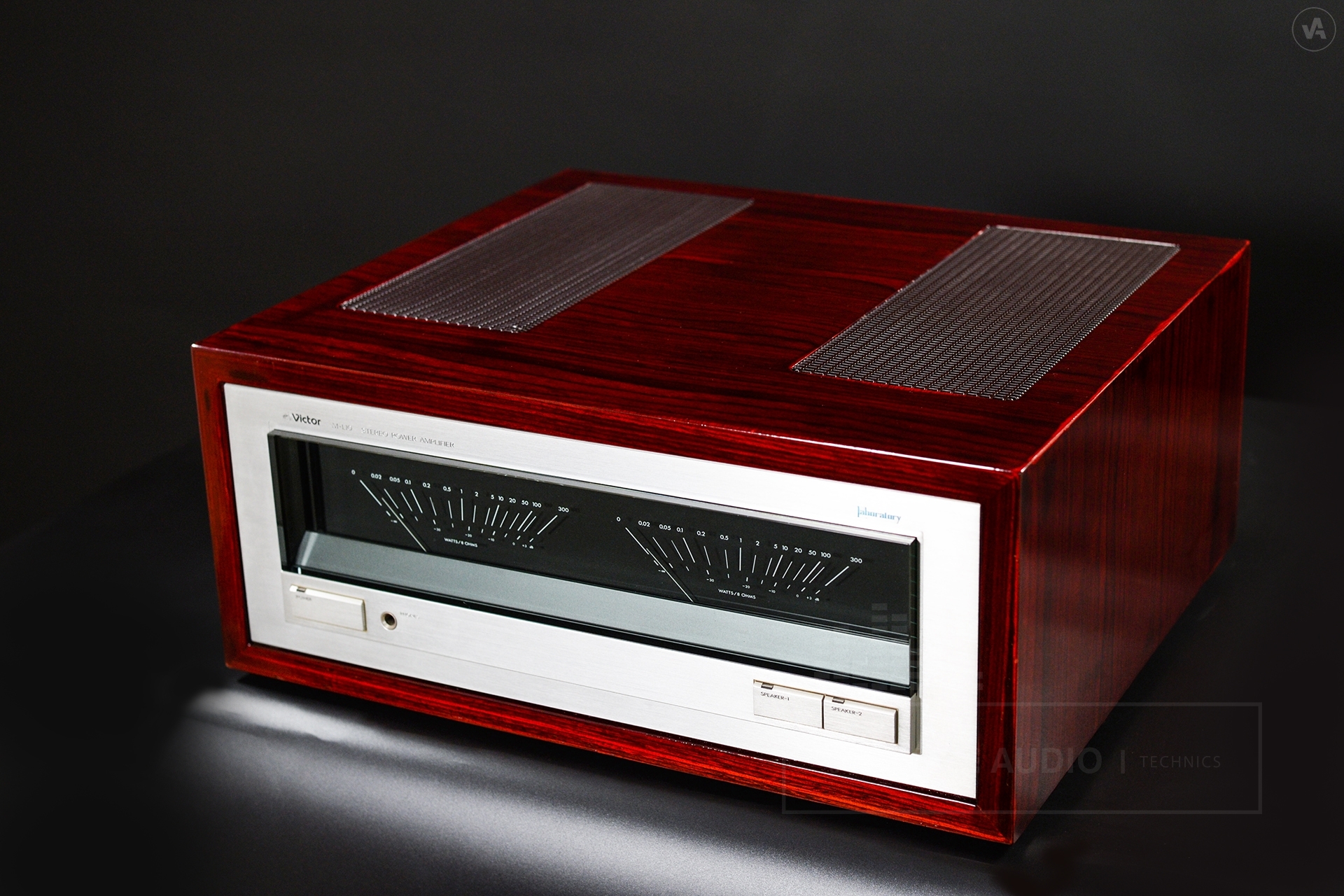

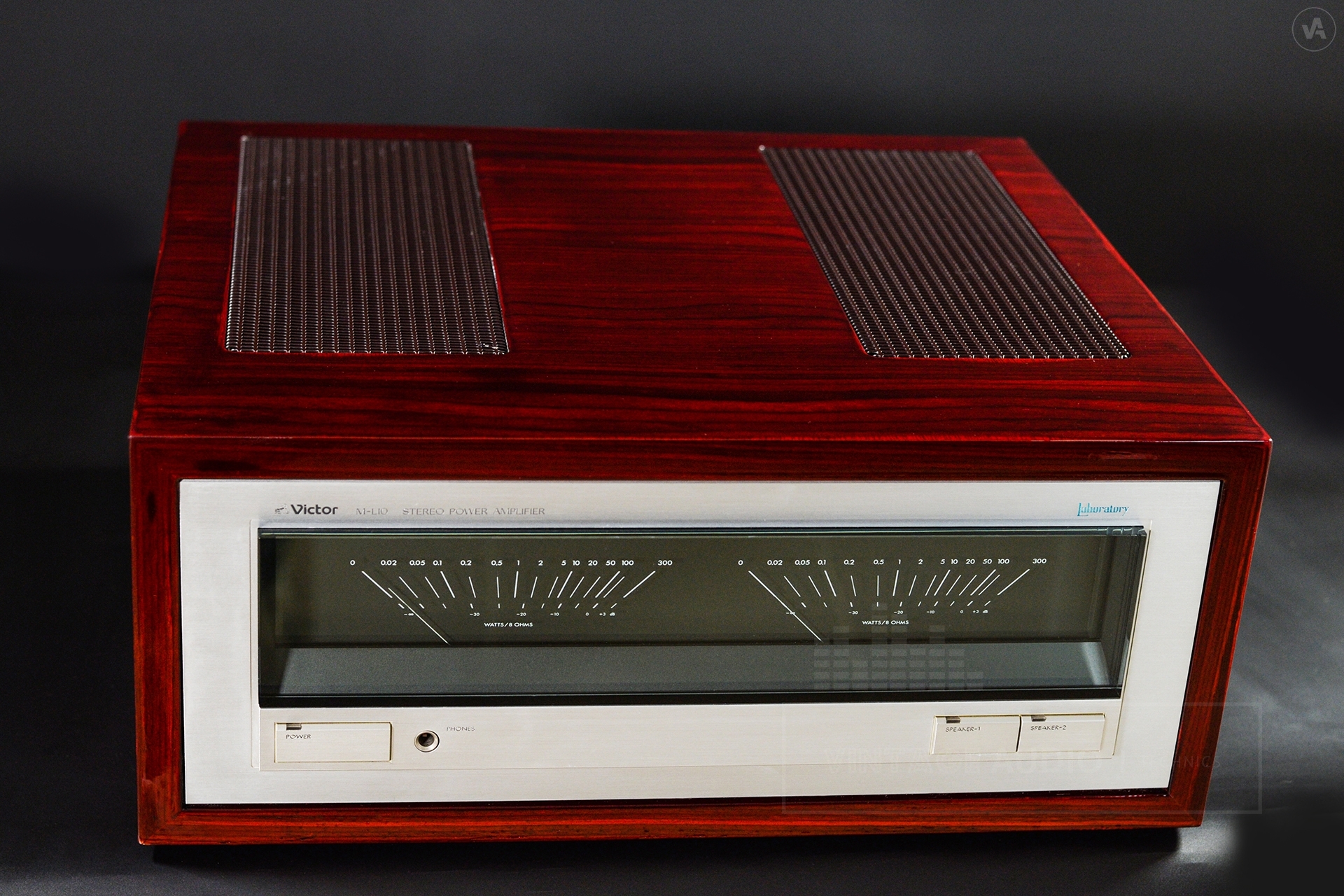

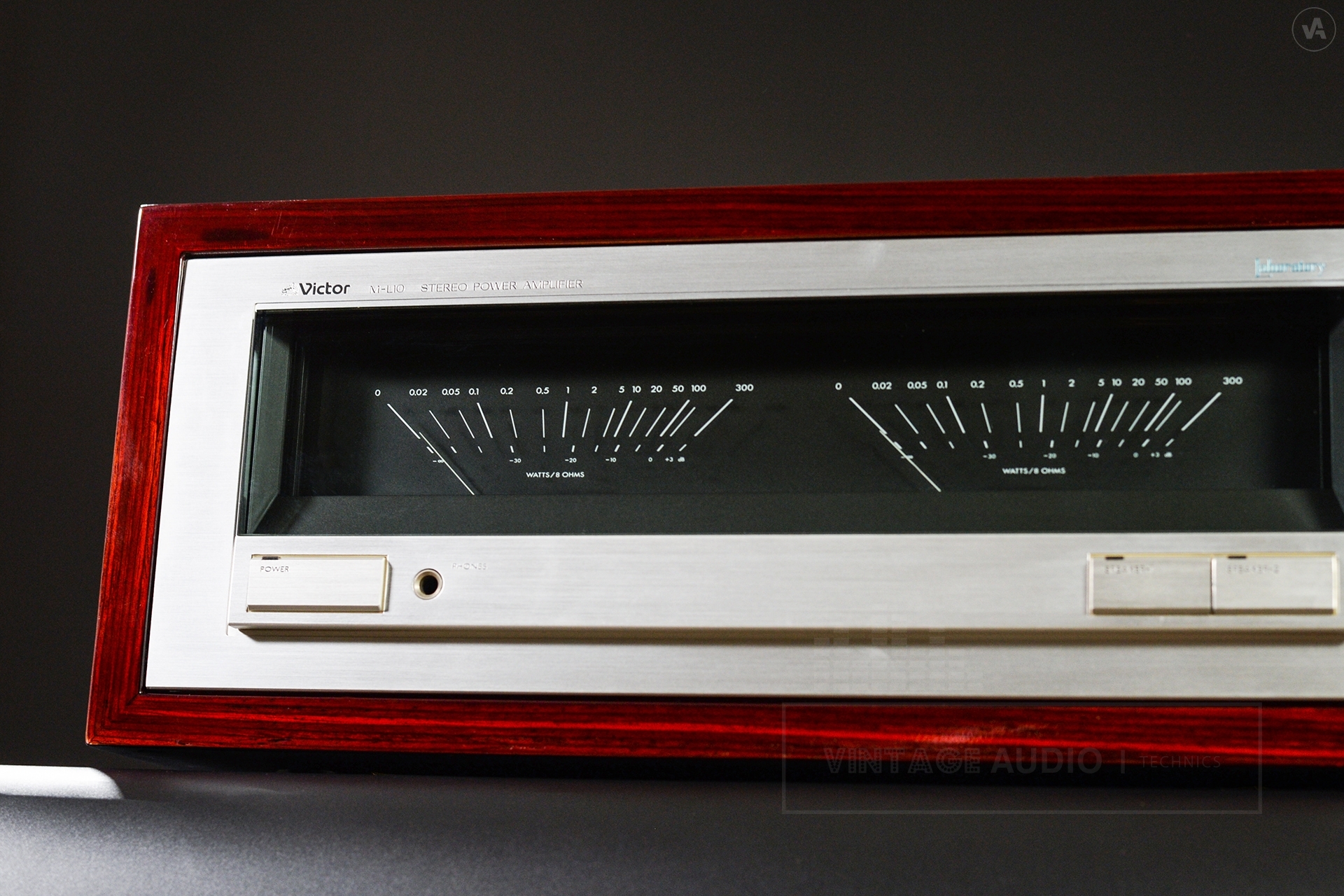

VICTOR M-L10
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Stereo Power Amplifier |
Circuit method: | All stages cascode, super A, complete DC power amplifier |
Effective output: | 160W + 160W (8Ω, 20Hz to 20kHz, THD 0.002%) |
Total harmonic distortion: | 0.002% (At effective output, 20Hz to 20kHz, 8Ω) |
Switching distortion: | 0 |
TIM distortion: | 0 (LPF fc = 100 kHz) |
Output bandwidth: | 5Hz to 100kHz (IHF, 8Ω, THD 0.02%) |
Frequency characteristic: | DC to 300kHz, +0 -3dB (Direct input, 8Ω) |
Damping factor: | 200 (1kHz, 8Ω) |
Input sensitivity / impedance: | 1V / 100kΩ |
Signal-to-noise ratio of over: | 120dB (IHF-A network, short circuited) 100dB (IHF A-202) 75dB (DIN) |
Subsonic filter: | 16Hz, -6dB / oct. |
Power outlet: | Power switch not linked - 1 system |
Power supply voltage: | AC 100V, 50 / 60Hz |
Rated power consumption: | 350W (Electrics Control Act) |
Intermodulation distortion rate: | 0.002% (60Hz: 7kHz = 4: 1, 8Ω at effective output) |
Dimensions (W x H x D): | 460 x 204 x 418mm |
Weight: | 28kg |
Year: | 1981 |
