Type: | Stereo power amplifier |
Output power: | 240W+240W (4ohms, 20Hz - 20kHz, 0.005%) 200W+200W (6ohms, 20Hz - 20kHz, 0.005%) 170W+170W (8ohms, 20Hz - 20kHz, 0.005%) |
Frequency characteristic: | 20Hz-20kHz (+0 -0.1dB) 0.8Hz-150kHz (+0 -3dB) |
Signal to noise ratio: | 93dB (EIAJ) 120dB (IHF'66) |
Total harmonic distortion: | 0.005% |
Damping factor: | 120 |
Speaker load impedance: | 4Ω to 16Ω |
Input sensitivity/impedance: | Normal/DC: 1.2V/47kohm Balance: 1.2V/600 ohm |

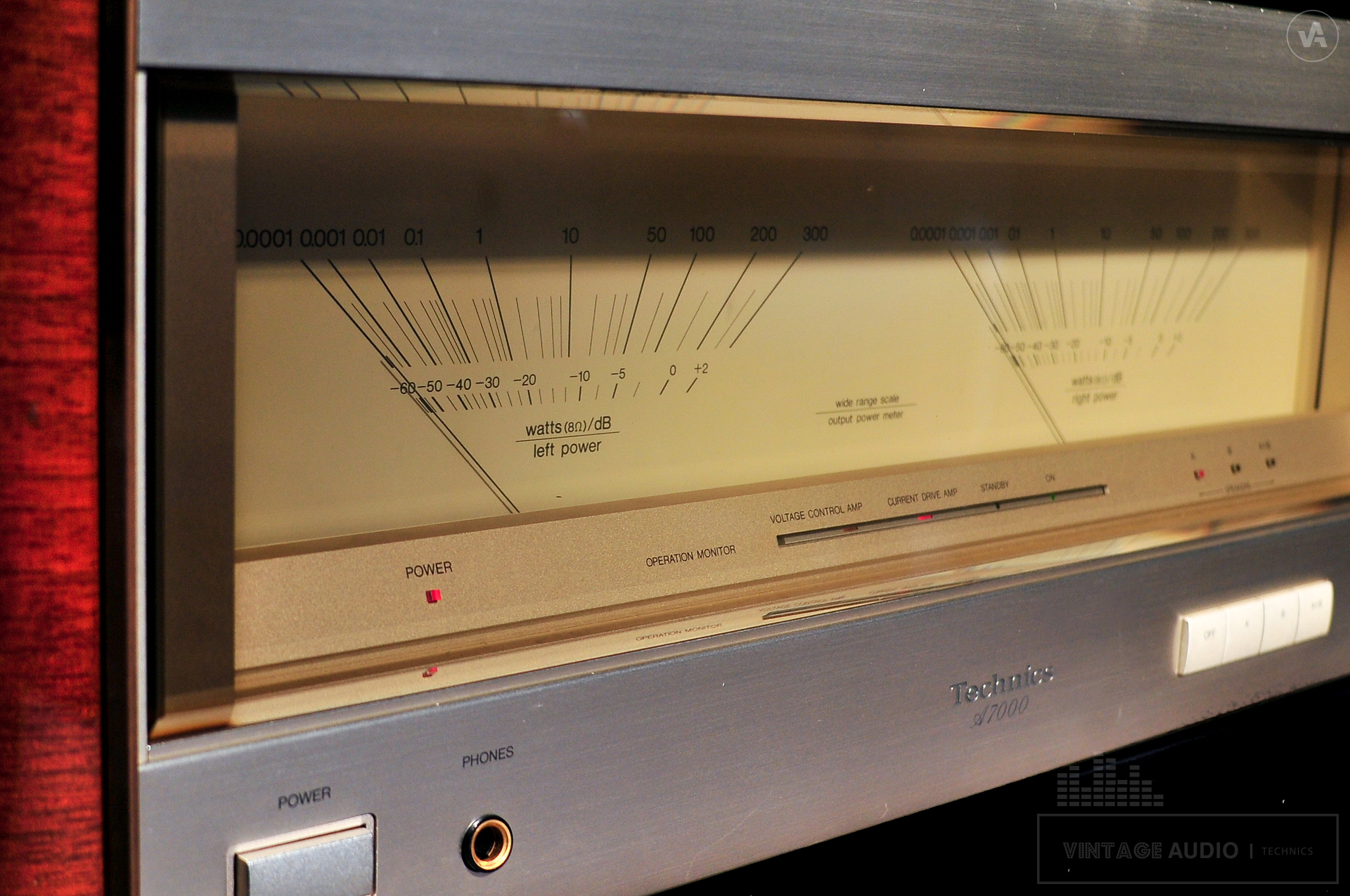

Meter indicating range: | 0.0001W-300W (8ohms) |
Power source: | AC100V, 50Hz/60Hz |
Power consumption: | 420W |
Dimensions (W x H x D): | 483 x 208 x 473mm |
Weight: | 38kg |
Year: | 1992 |
