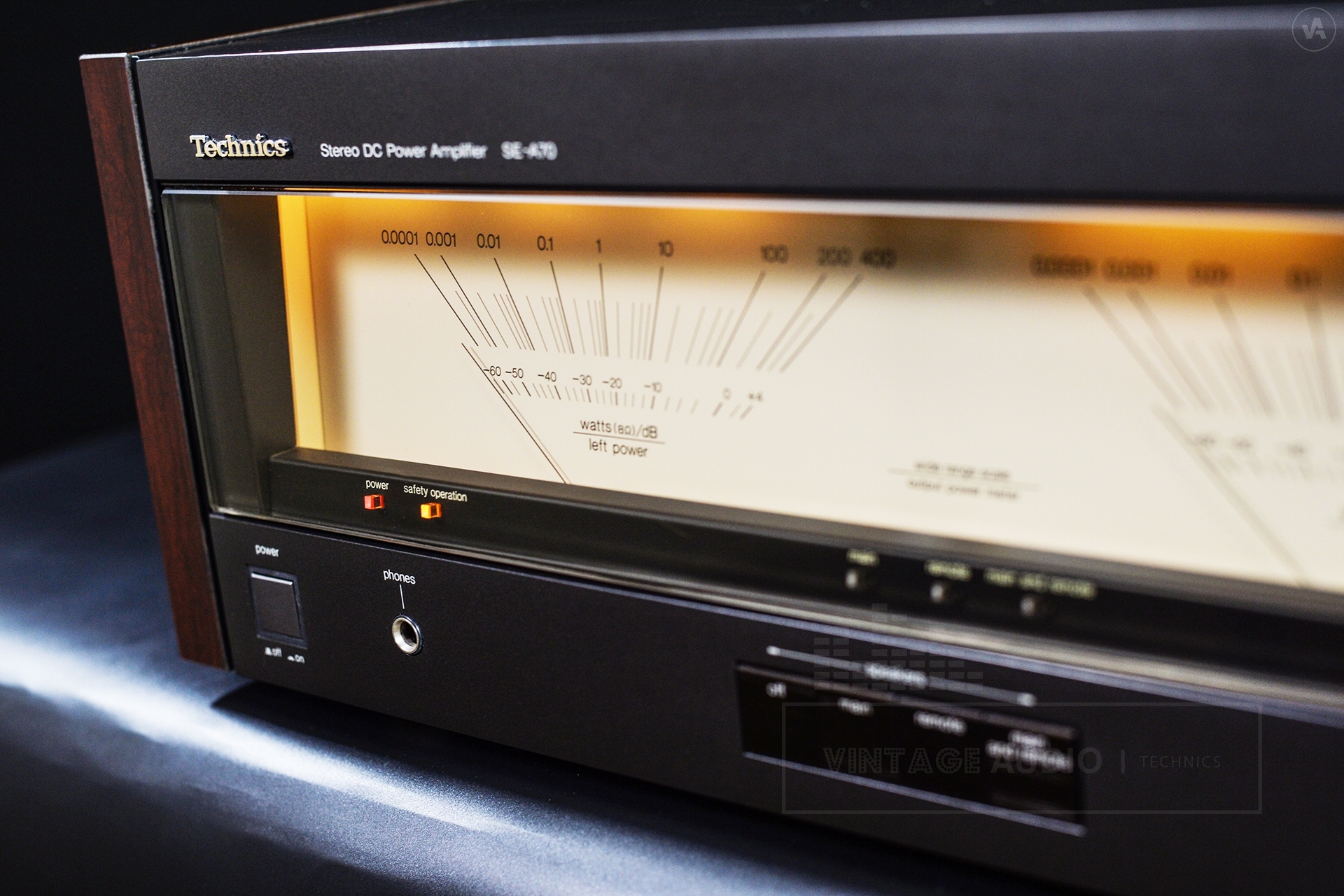

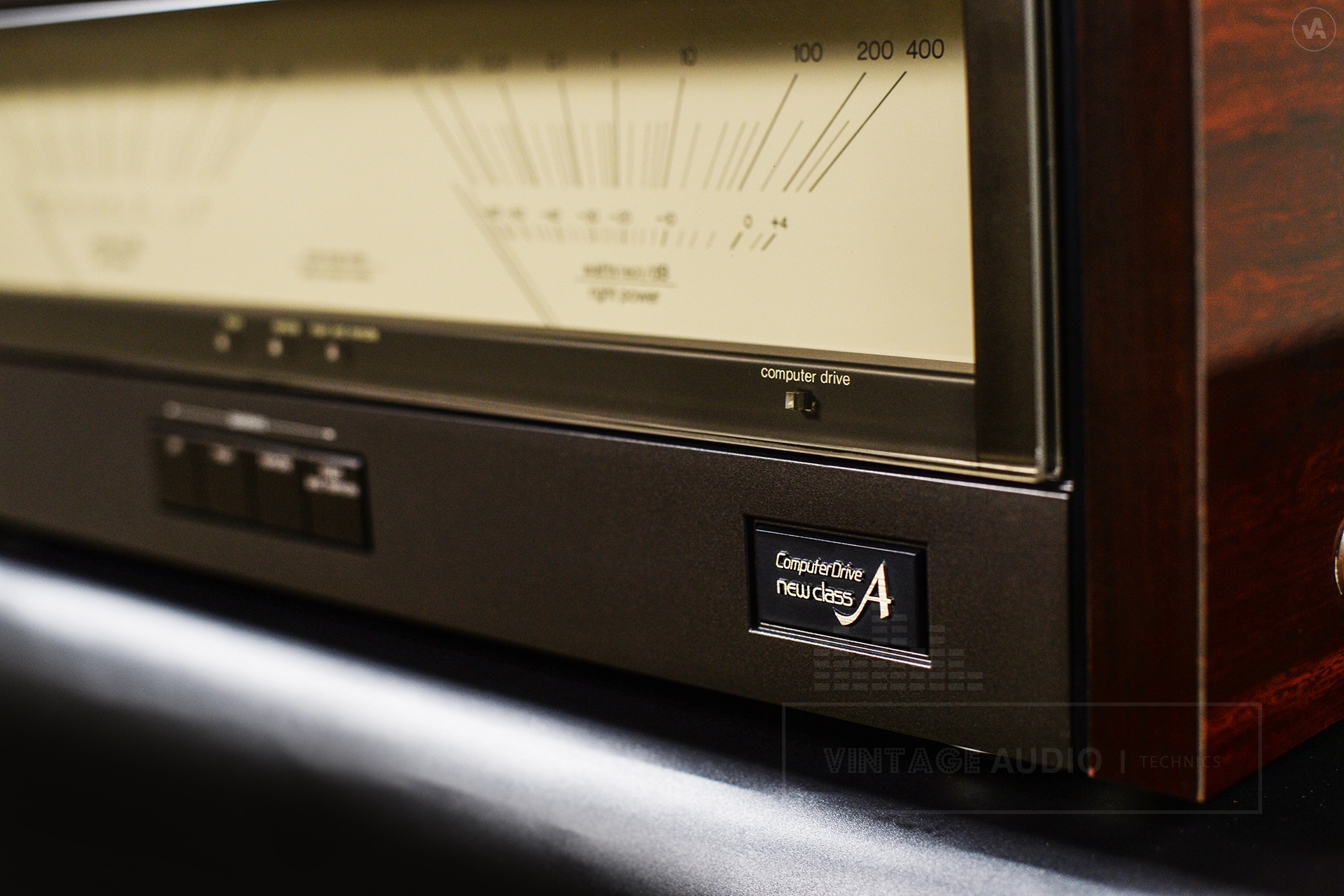

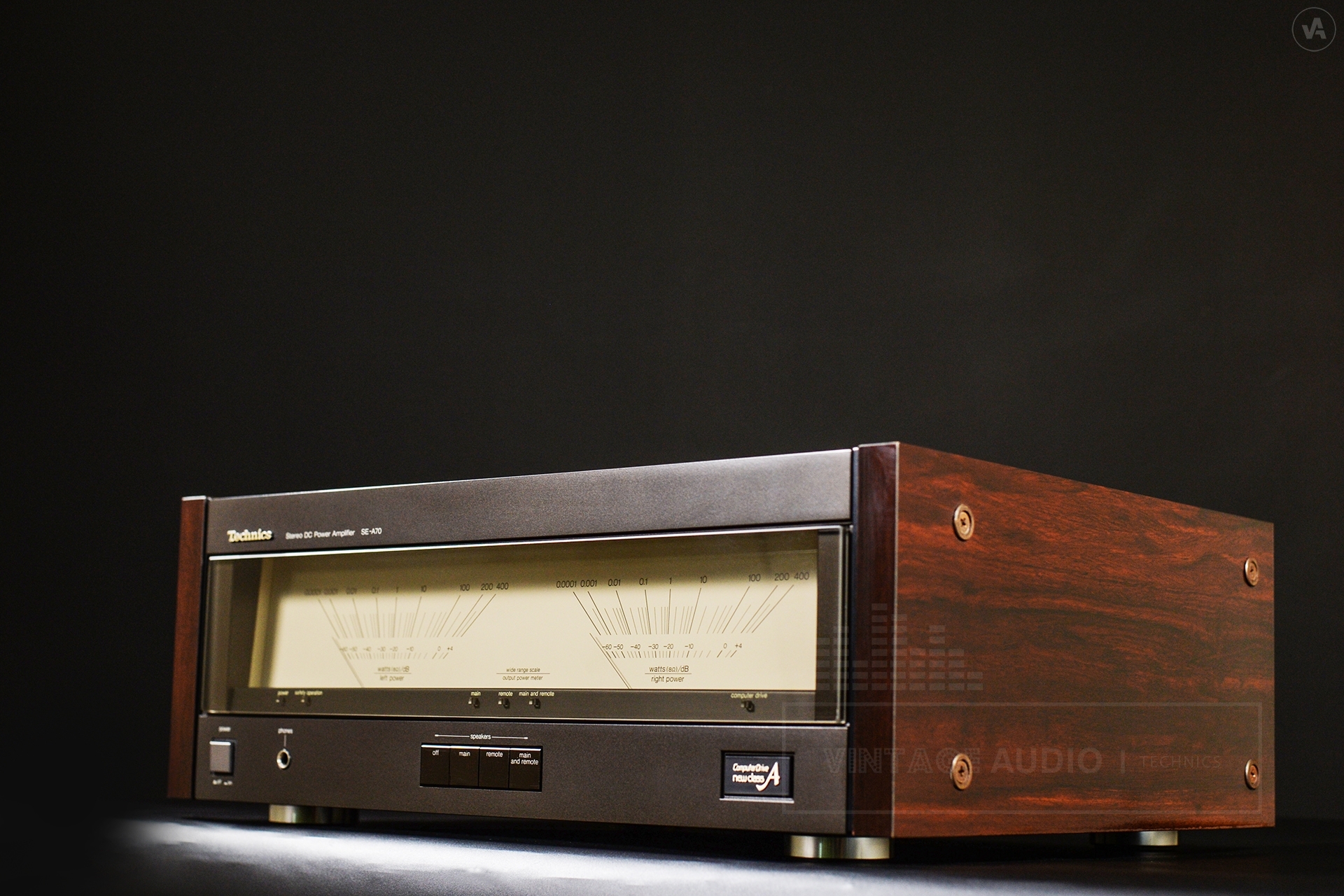

Technics SE-A70
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Stereo DC Power Amplifier |
Rated minimum RMS Power output: | 160 watts per channel into 8Ω (20Hz – 20kHz, THD 0.002%, stereo) |
Total harmonic distortion: | Rated Power - 0.002% (8 ohms / 4 ohms, at 20Hz to 20kHz) Half Power - 0.001% (8 ohms, at 20Hz to 20kHz) Half Power at 1kHz - 0.0005% (8 ohms) |
Power bandwidth both channels driven: | 5Hz – 100kHz (8 ohms, -3dB, THD 0.01%) |
SMPTE Intermodulation distortion: | 0.002% (8 ohms) |
Frequency response: | DC - 20kHz (+0dB -0.1dB) DC - 150kHz (+0dB -3dB) |
Input sensitivity: | 90mV (1V, INF ’66) |
Signal to noise ratio: | 102dB (121dB, INF ’66) |
Residual hum and noice: | 0.13mV |
Input impedance: | 47 kohms |
Low frequency damping factor: | 100 (8 ohms) 50 (4 ohms) |
Speaker load impedance: | MAIN or REMOTE - 4Ω to 16Ω MAIN and REMOTE - 8Ω to 16Ω |
Meter reading range: | 0.0001W – 400W -60dB - +4dB (logarithmic compression) |
Power supply: | AC 110V / 120V / 220V / 240V, 50Hz / 60Hz |
Power consumption: | 980W |
Dimensions (W x H x D): | 476 x 178 x 416mm |
Weight: | 20.4kg (44.88 lbs) |
Year: | 1987 |
