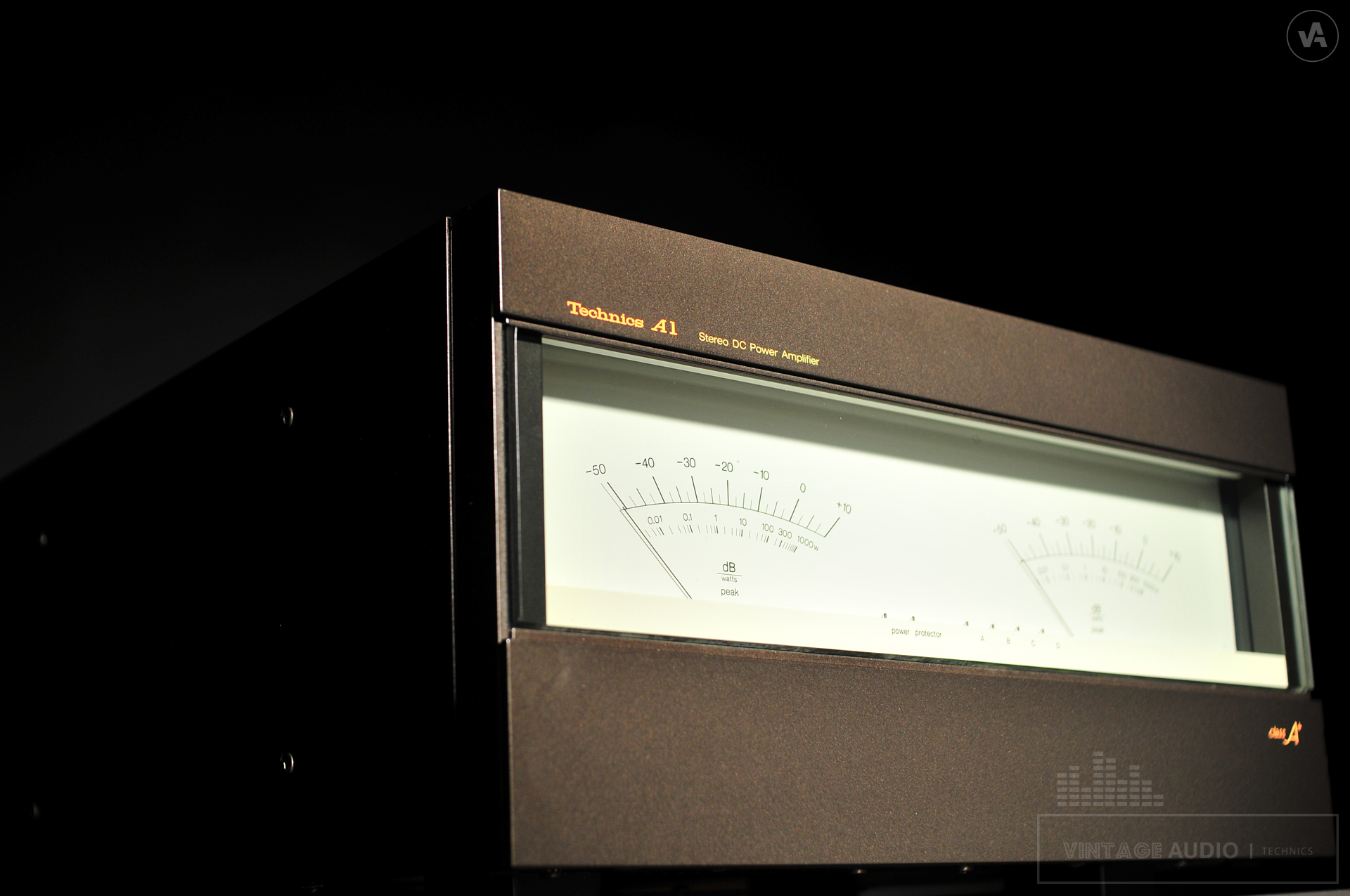

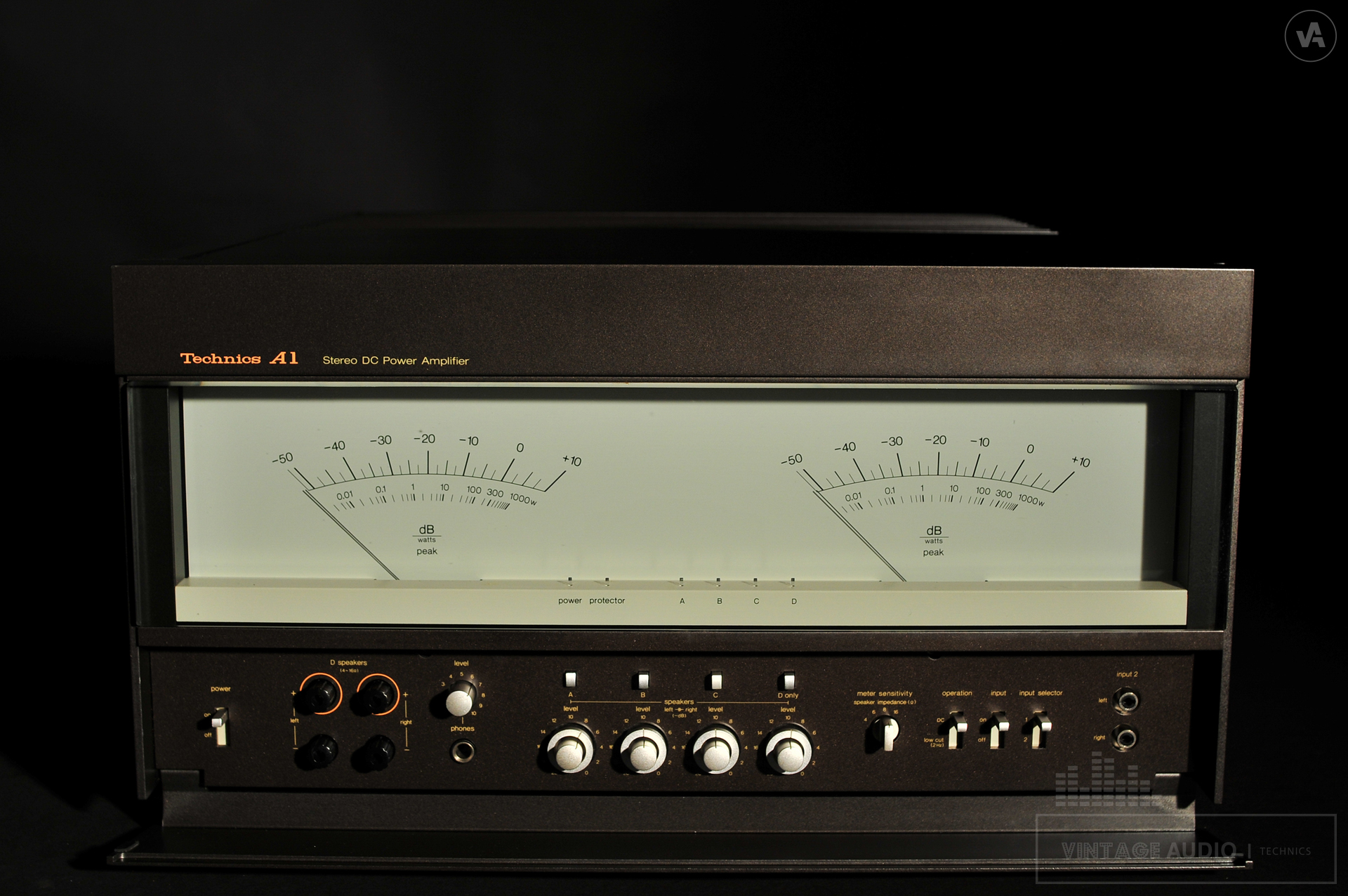

Type: | Stereo power amplifier DC power |
Effective output (both channels): | 350W + 350W (4 Ω, 20Hz - 20kHz) 350W + 350W (8 Ω, 20Hz - 20kHz) |
THD: | 0.003% (during the output power of 20Hz - 20kHz) Impossible measurement (at the output power of 1kHz) 0.01% (175W, output power-3dB, 100kHz) |
The output bandwidth: | 5Hz - 100kHz (8Ω, both channels, 0.01%) |
Frequency response: | 20Hz-20kHz (+ 0 -0.05dB) DC-200kHz (+ 0 -1dB) |
The S/N (IHF-A) ratio: | 120dB |
There is a noise: | 500mkV (150 mkV, IHF-A) |
The reset factor: | 100 (8Ω) |
Rise rate more than: | 70V / microsec |
Input sensitivity / impedance: | 1V-10V (variable sequence) / 47kohm |

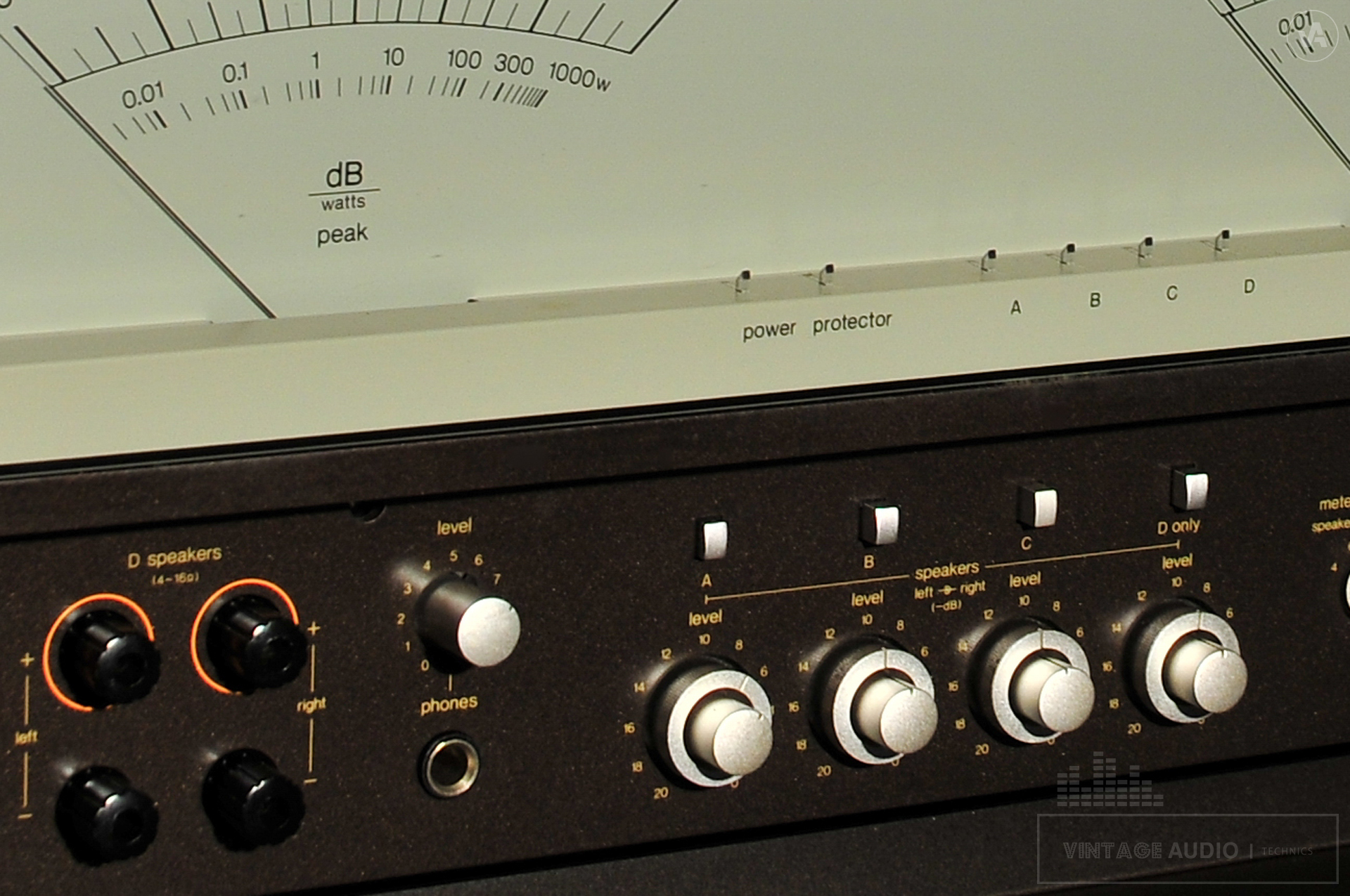

Load resistance: | A or B or C or D - 4Ω-16Ω A + B or B + C or A + C - 8Ω-16Ω A + B + C - 16Ω |

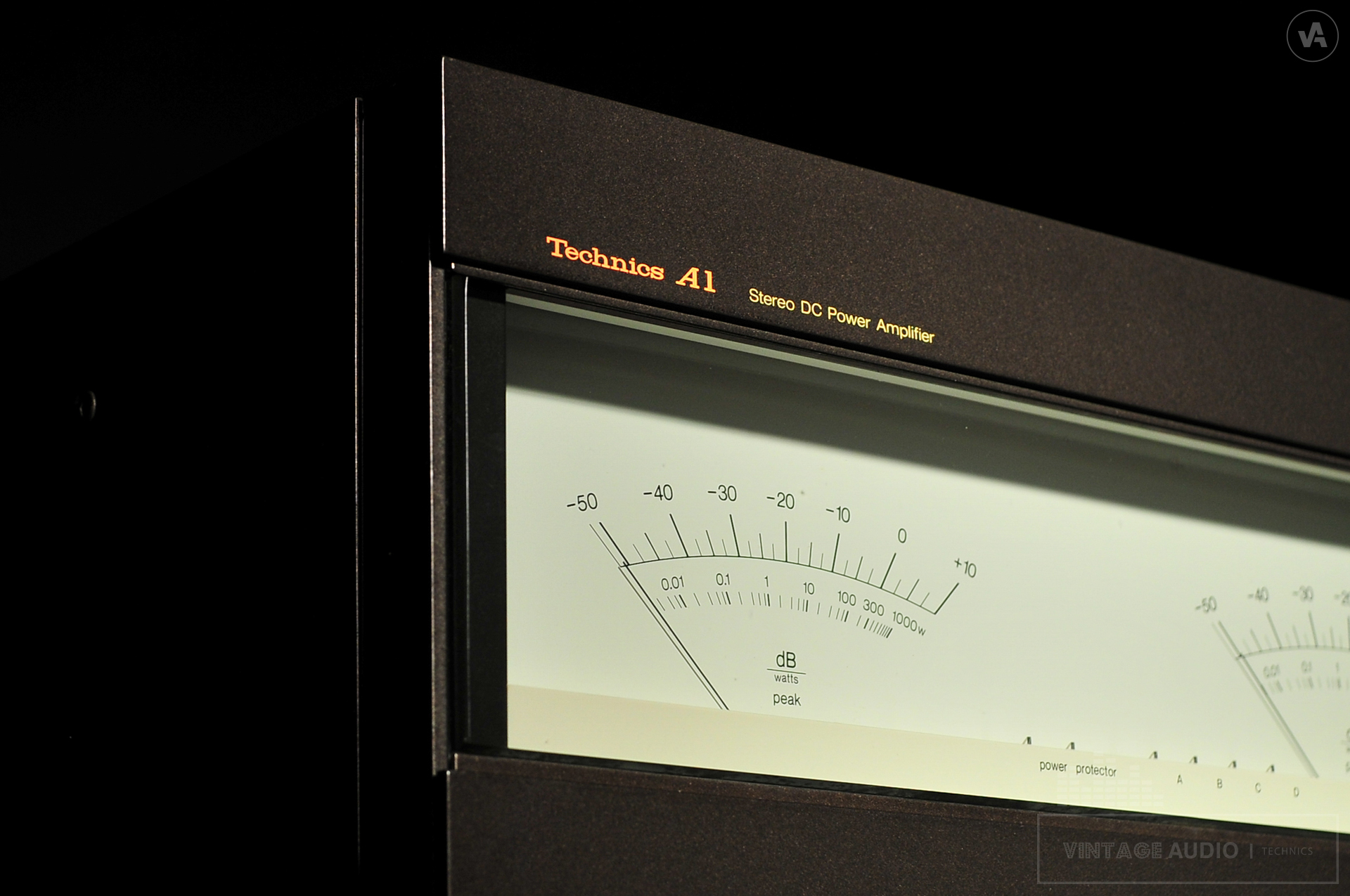

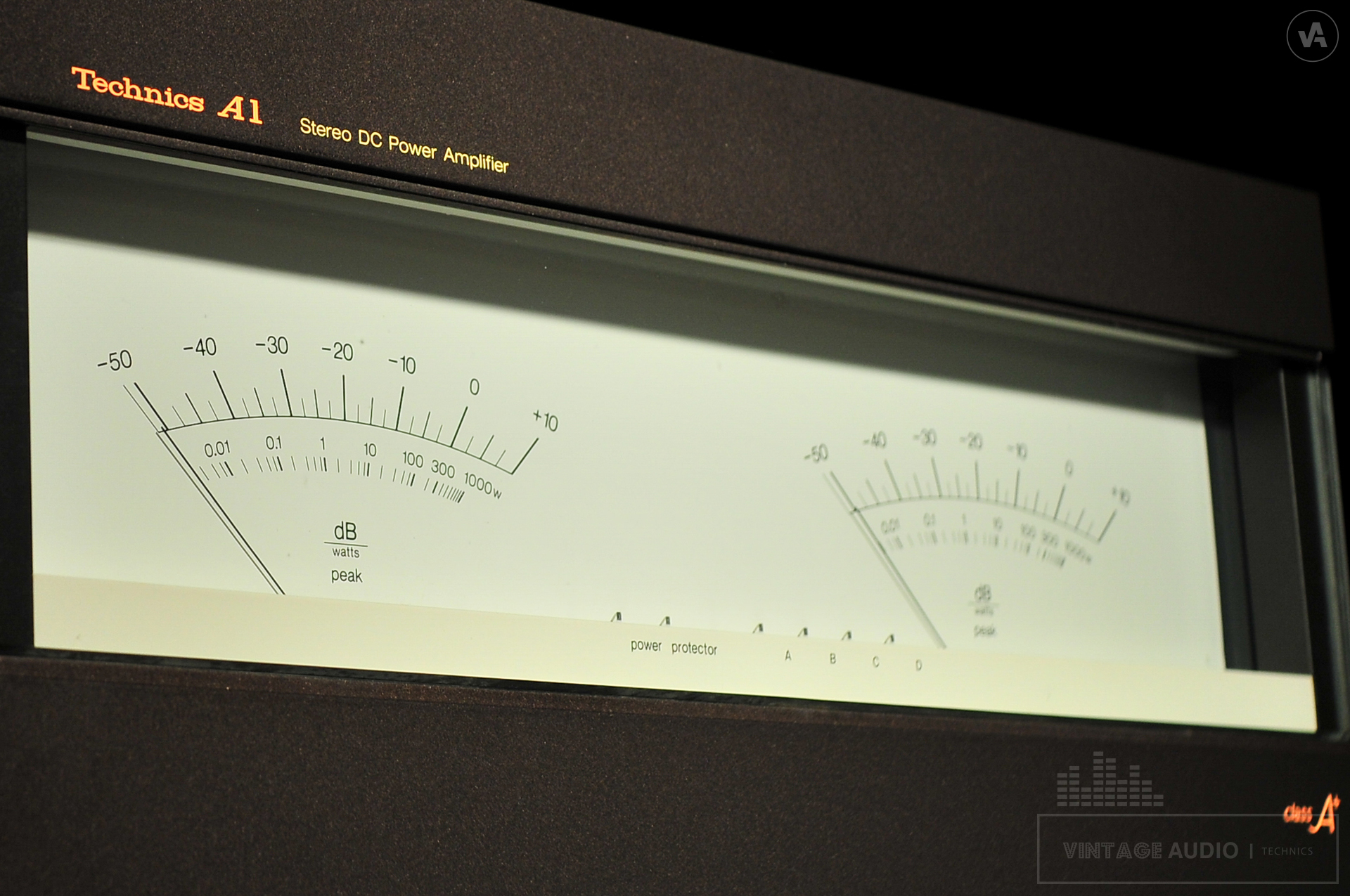

Display range: | -50dB - +10dB (tick at regular intervals) |
Frequency response (indication accuracy): | 10Hz-20kHz ± 1dB (at the time of display +10dB -40dB) 10Hz-10kHz ±3dB (during reading less than -40dB) |
Attack Time: | 50microsec |
Recovery time: | 750ms (0 dB -> 20dB) |
Power supply: | AC 100V, 50Hz / 60Hz |
Power consumption: | 1kW |
Dimensions (W x H x D): | 450 x 249 x 550mm |
Weight: | width 450x height 249x depth 550mm |
Year: | 1977 |
