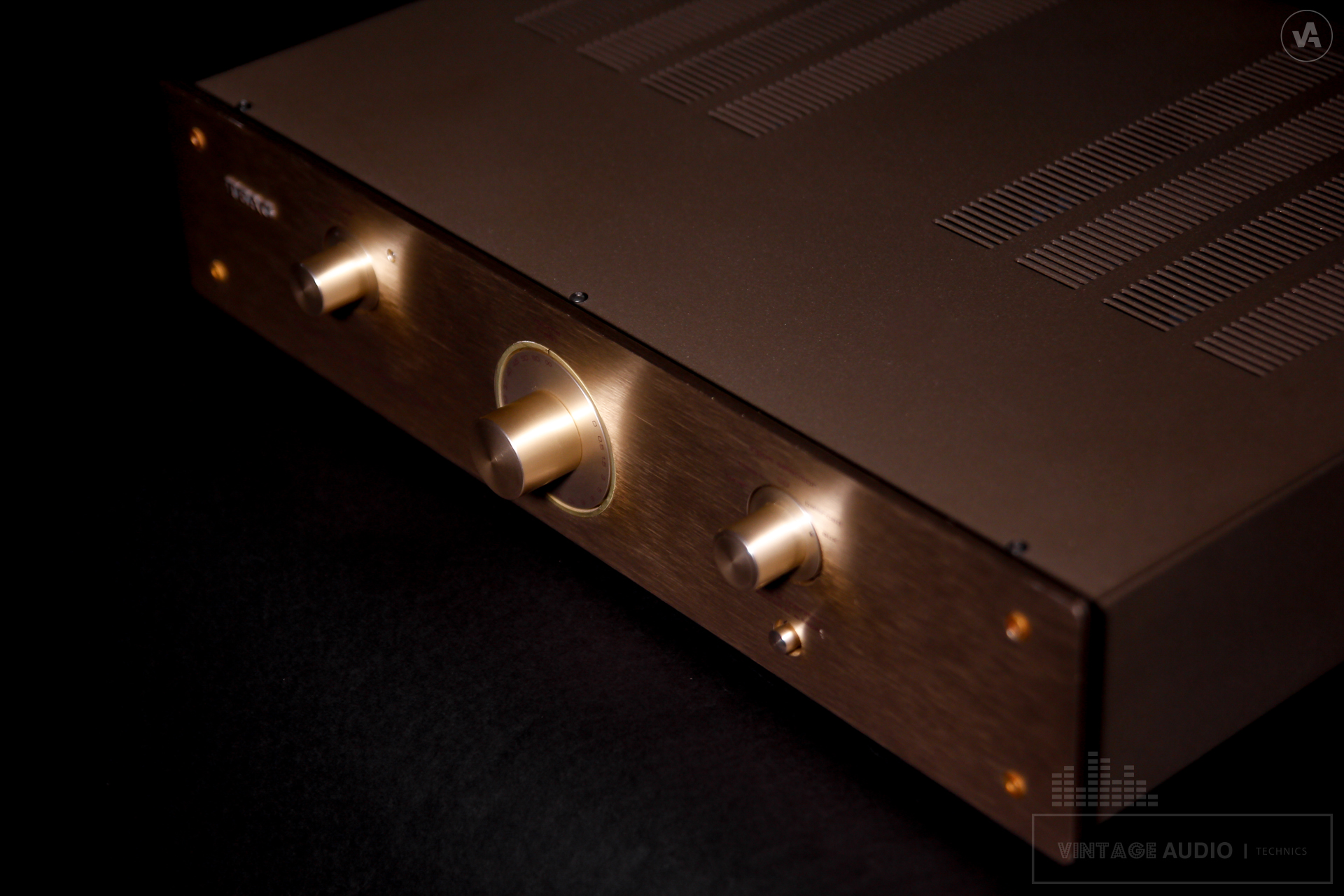

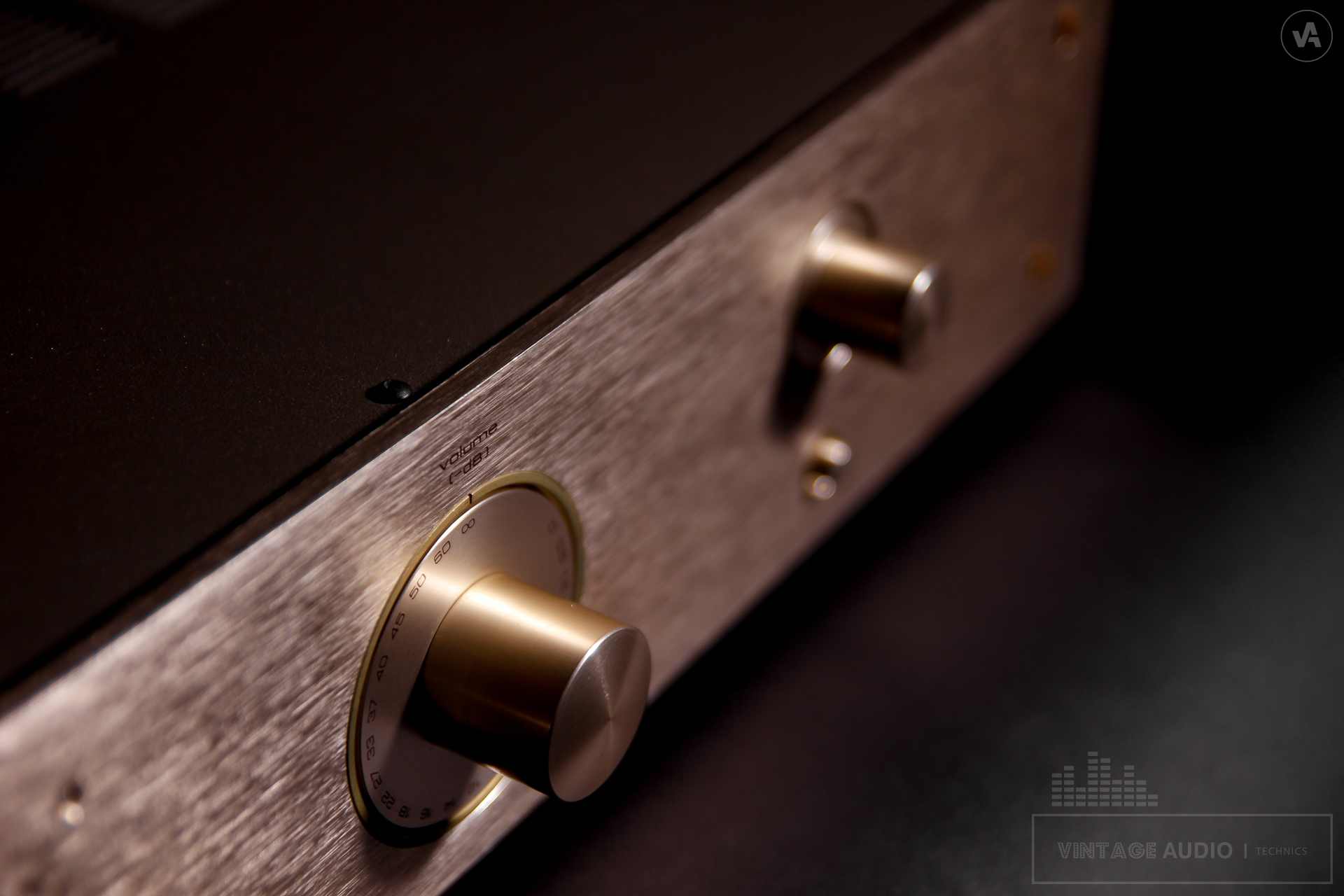

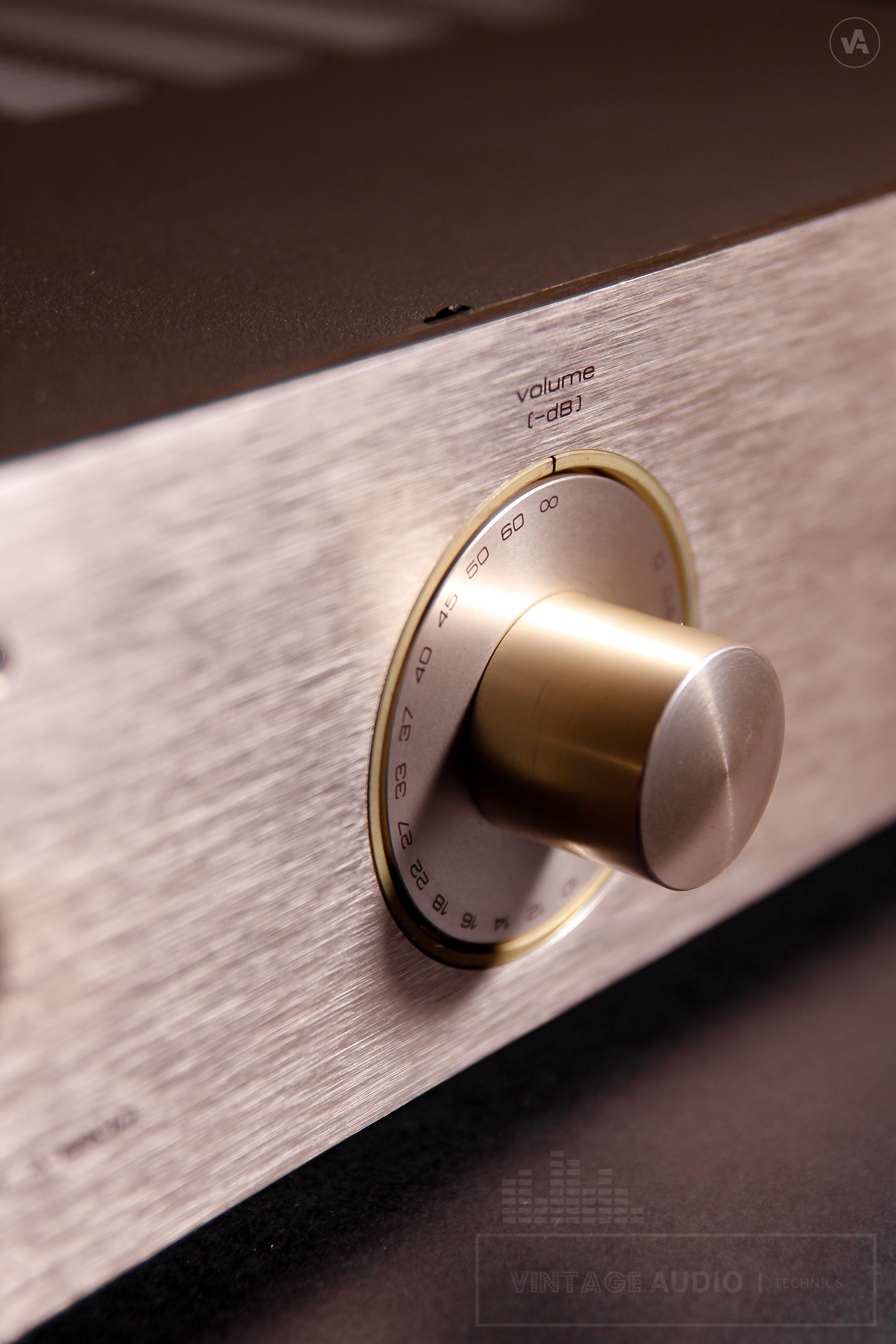

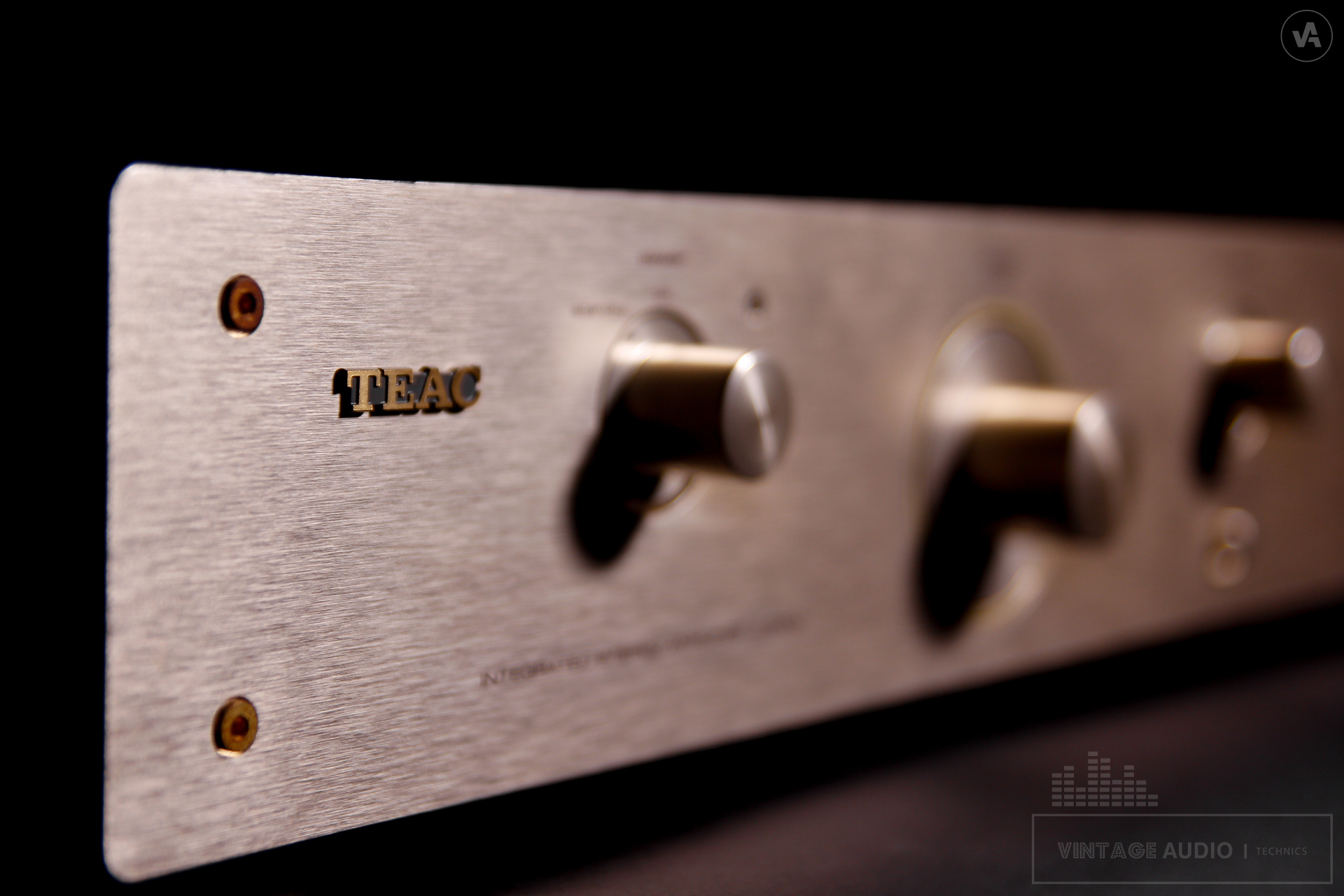

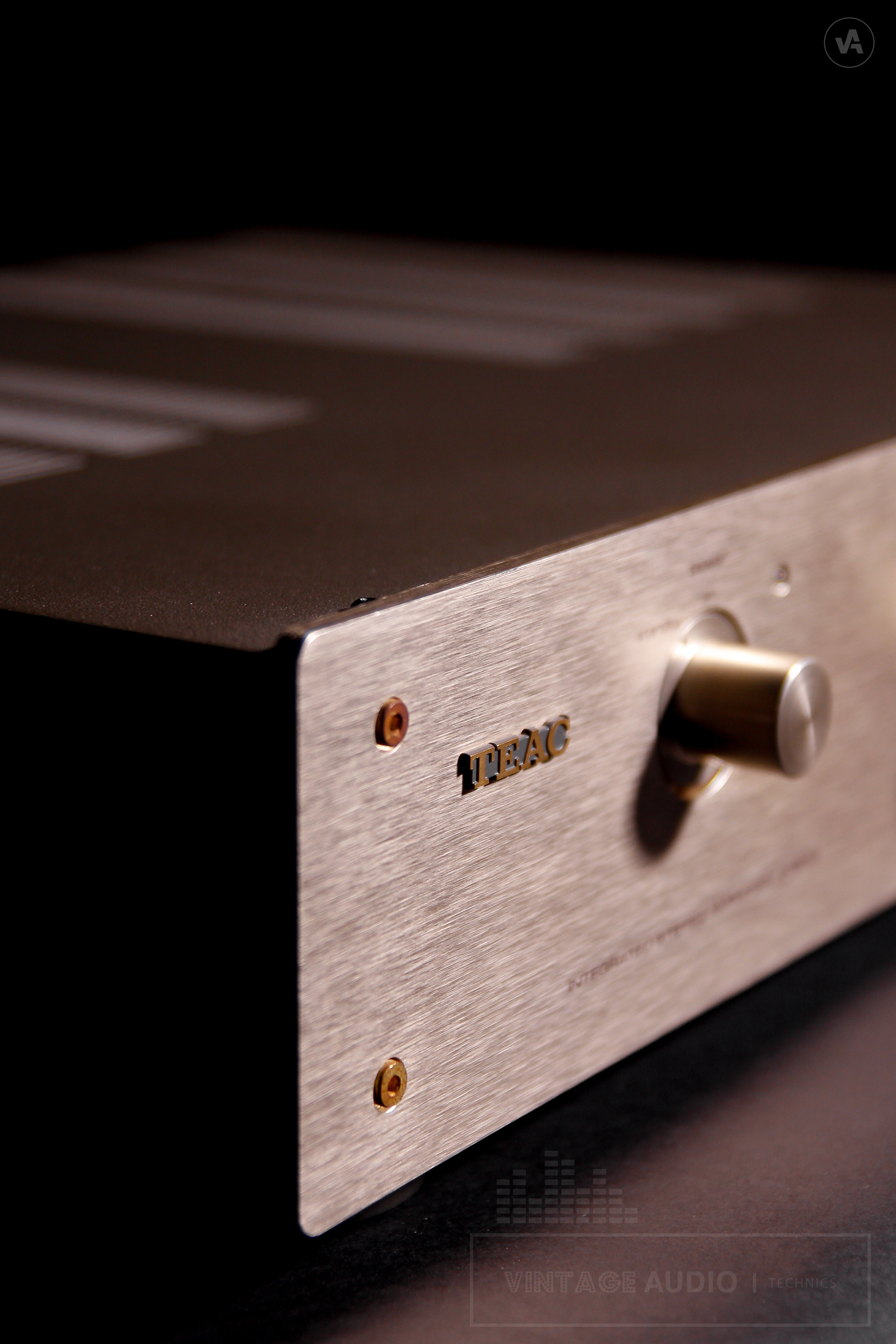

Type: | Stereo Integrated Amplifier |
Continuous Power Output (RMS): | 100W + 100W at 8ohms (20 - 20,000Hz) 160W + 160W at 4ohms (20 - 20,000Hz) |
Dynamic Power Output: | 120W + 120W at 8ohms 220W + 220W at 4ohms |
Frequency Response: | Balanced (XLR): 20 – 40 000Hz -1dB CD, Aux: 20 – 40 000Hz, -1dB Tuner, Tape: 20 – 40 000Hz, -1dB |
Total Harmonic Distortion (Continuous rated Output Power): | 0,04% at 8ohms (20 – 20 000Hz, -1dB) 0,06% at 4ohms (20 – 20 000Hz, -1db) |
Input Sensitivity/Impedance: | Balanced (XLR): 1V/20kΩ CD, Aux: 300mV/20kΩ Tuner, Tape: 300mV/20kΩ |
Output Level/Impedance: | Tape 1, Tape 2: 300mV/100Ω |
Signal-to-Noise Ratio (IHF-A): | 106dB |
Dimensions (W x H x D): | 443 x 103 x 381mm |
Weight: | 11,8kg |
Year: | 1995 |
