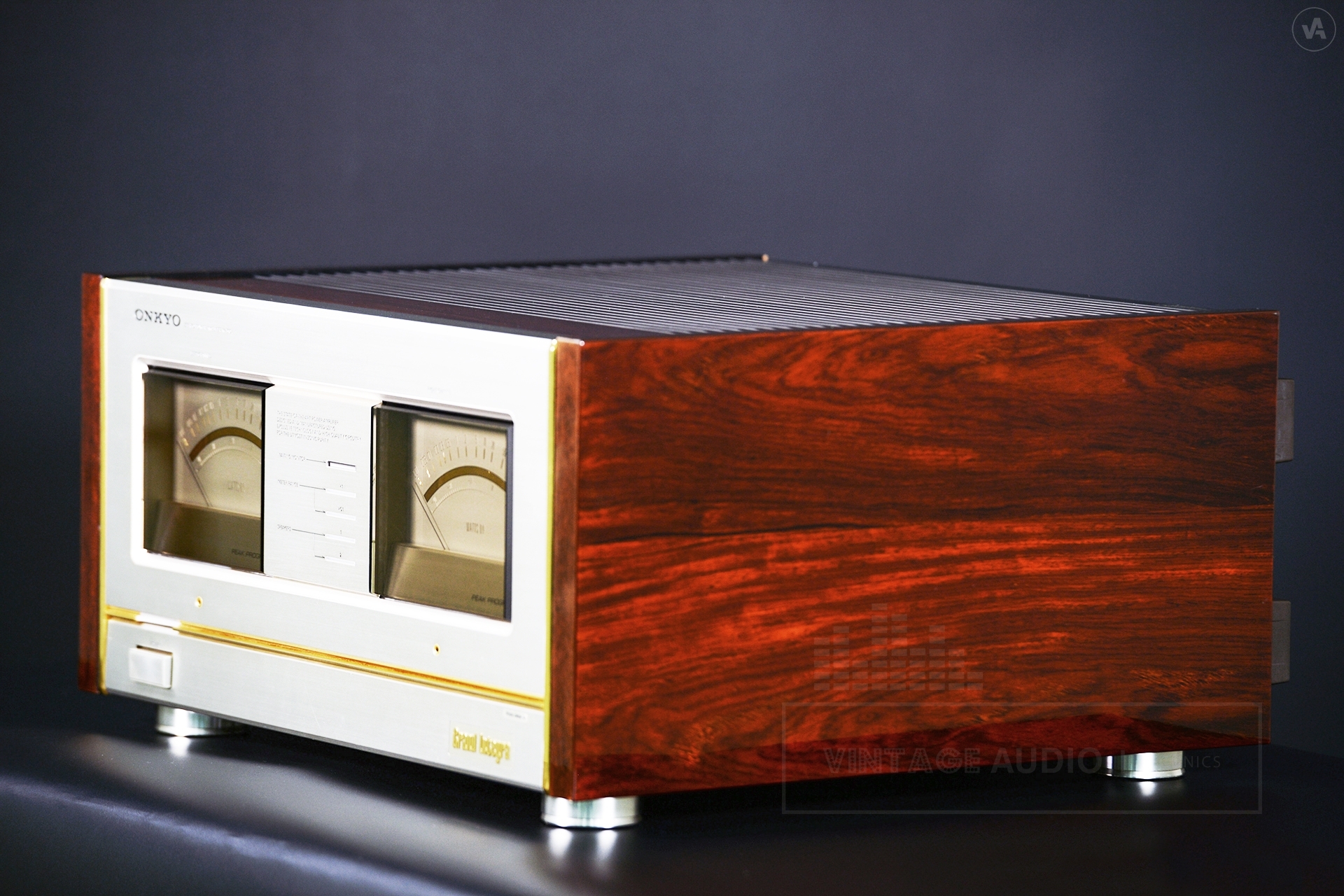

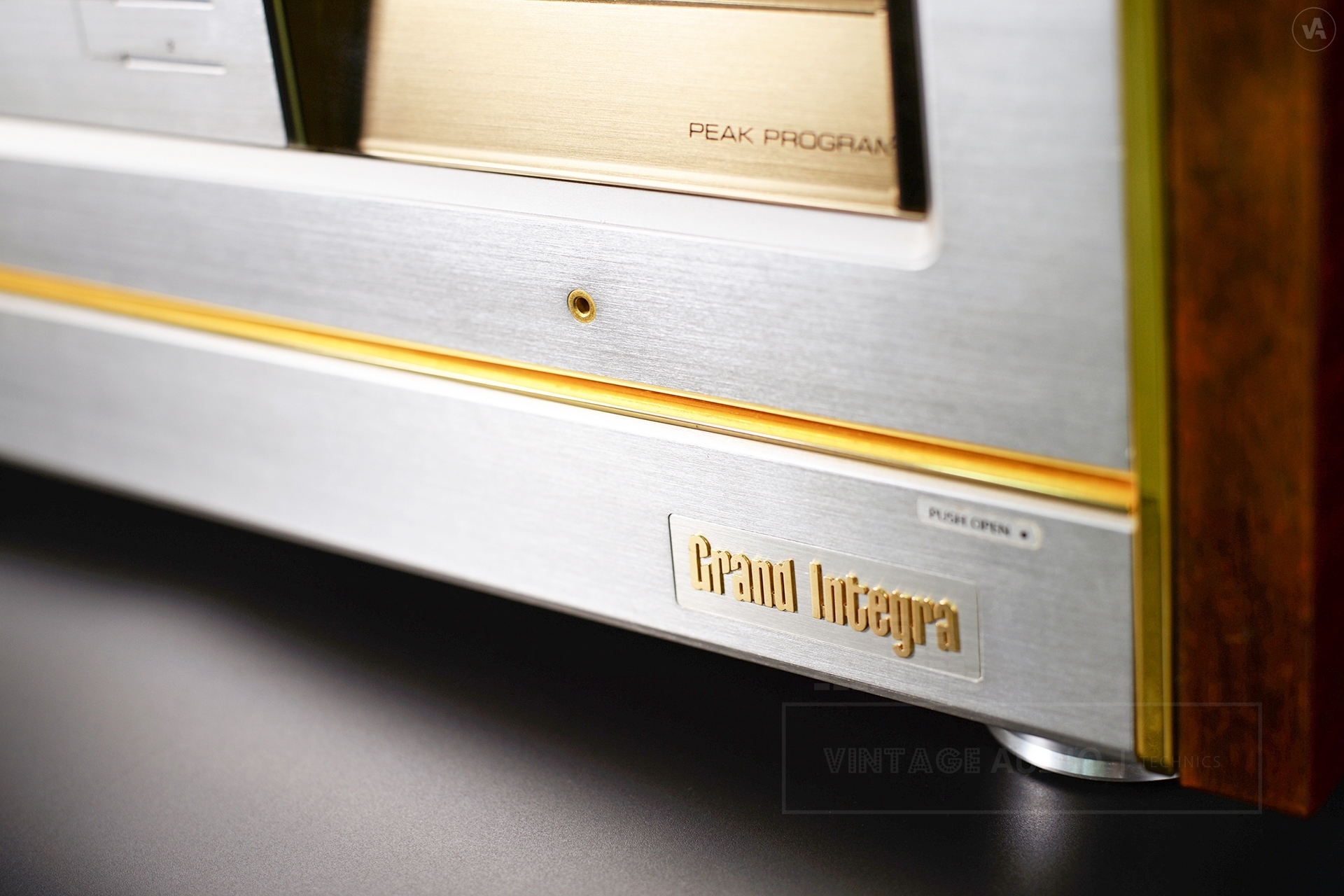

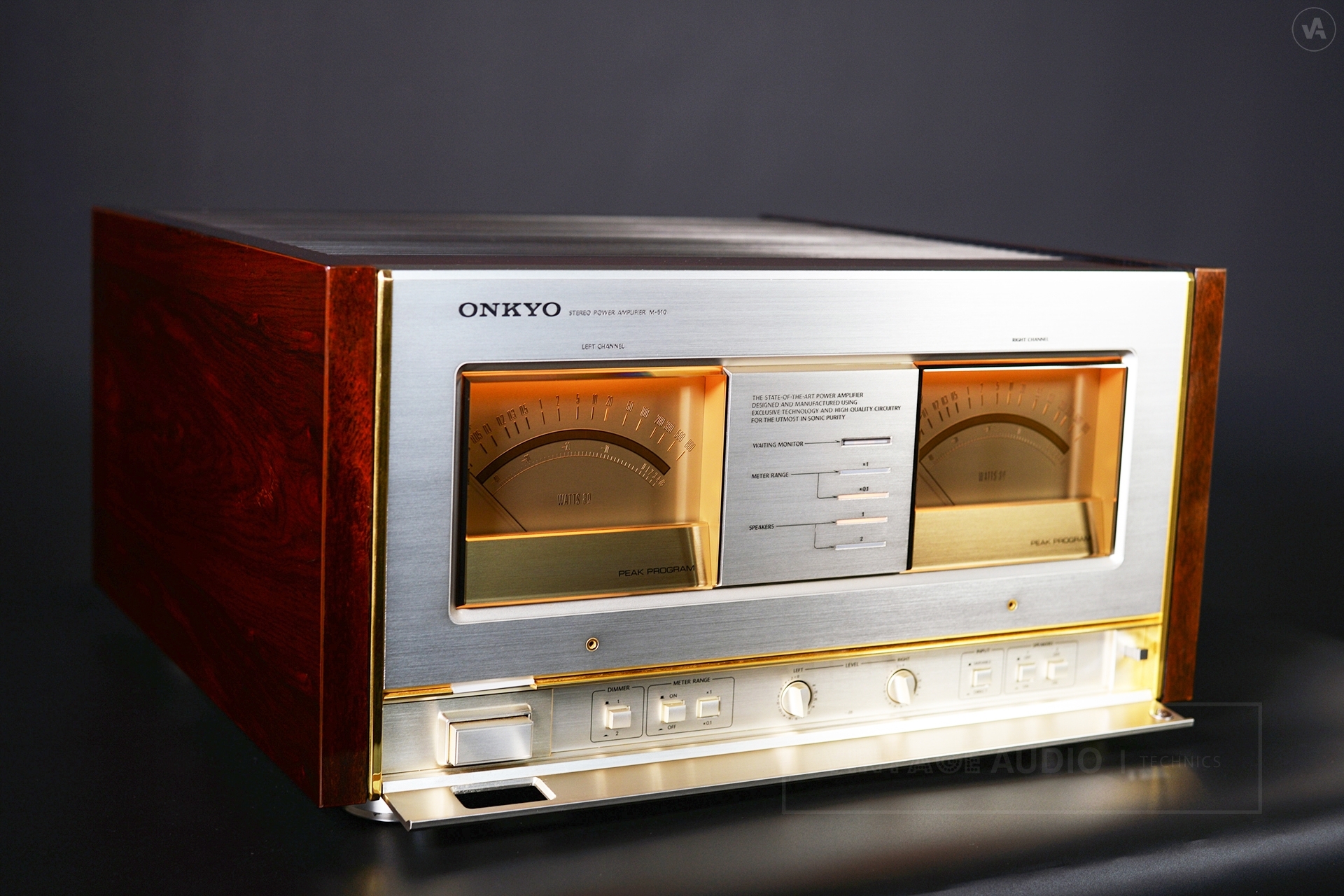

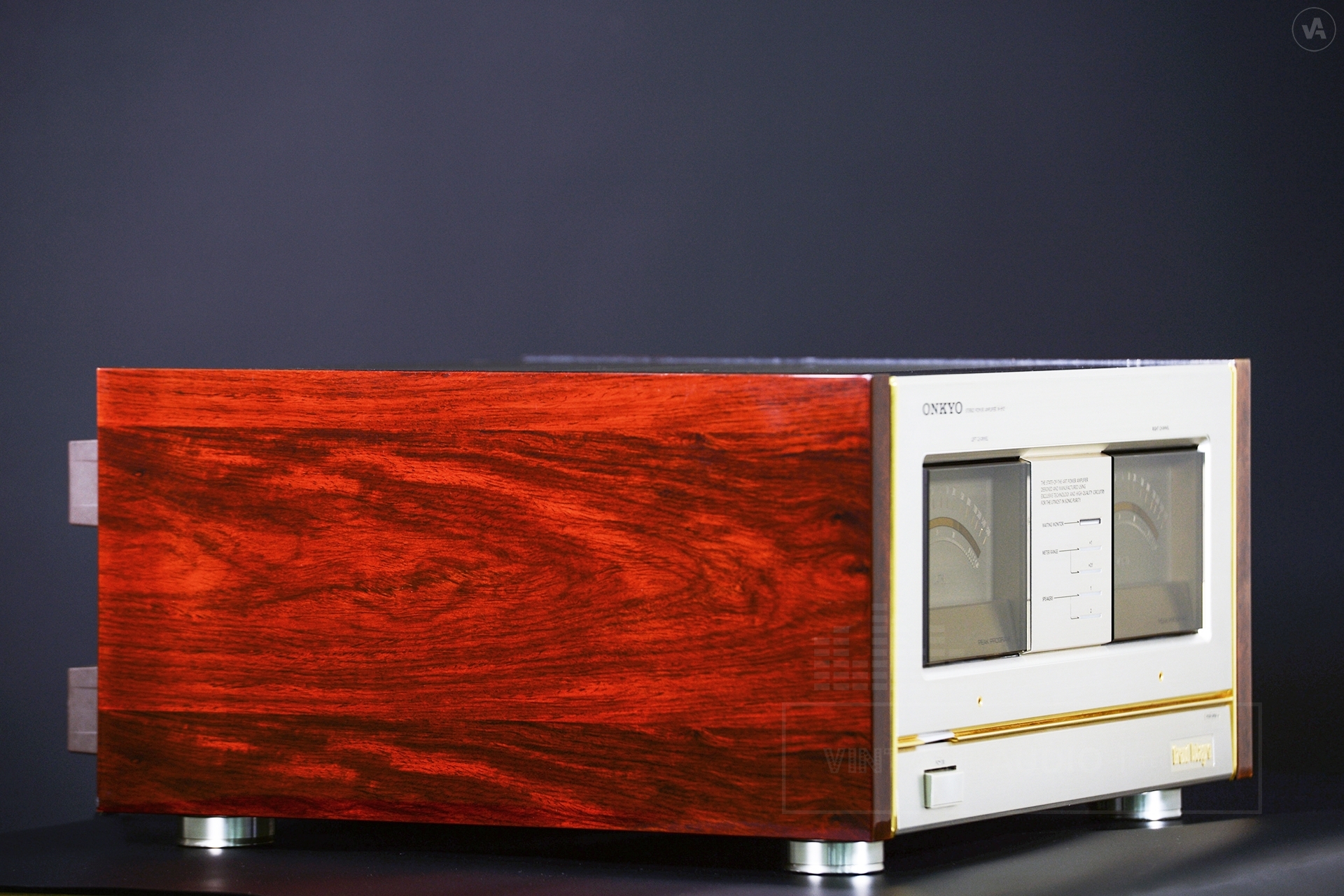

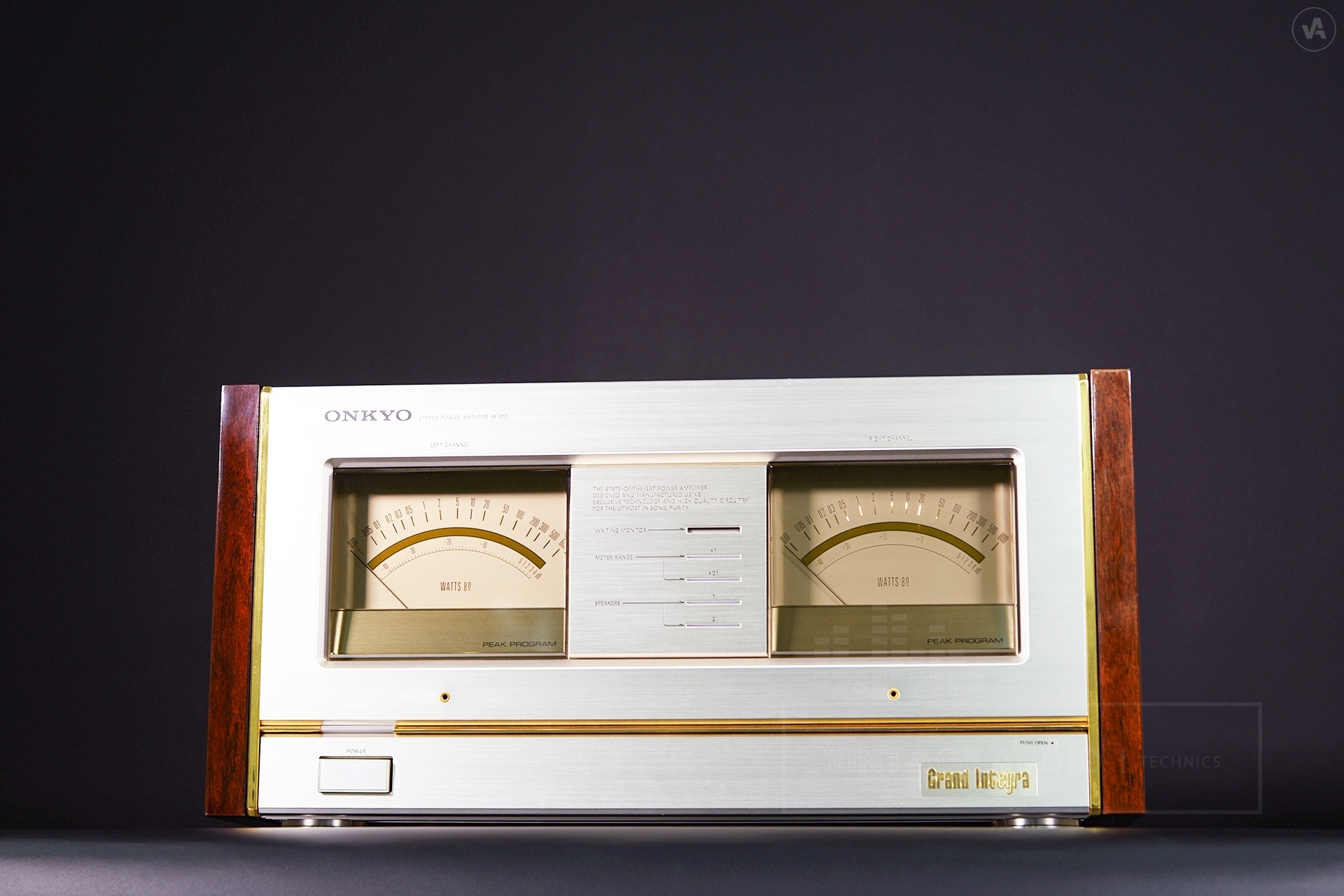

Onkyo Grand Integra M-510
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Stereo Power Amplifier |
[Amplifier part] | |
Output power (20Hz to 20kHz, both channel drive): | 300W + 300W (8Ω) 370W + 370W (6Ω) 500W + 500W (4Ω) 800W + 800W (2Ω) |
IHF Dynamic Power Output: | >400W per channel (8Ω) >750W per channel (4Ω) >1.3kW per channel (2Ω) >2.1kW per channel (1Ω) |
Total Harmonic Distortion (20Hz to 20kHz): | Less than 0.005% (At the time of an Output power) |
Cross modulation distortion (70Hz: 7kHz=4: 1): | Less than 0.003% (At the time of an Output power) |
Power bandwidth (IHF-3dB, THD 0.2%): | 5Hz to 100kHz |
Gain: | 33.8dB |
Frequency characteristic: | 1Hz to 100kHz, +0 -1.5dB |
Input sensitivity: | 1V (At the time of an Output power) 0.058V (At the time of 1W output) |
Input impedance: | 20kΩ (Direct inputs) |
S / N ratio (A correction, input short-circuit): | 120dB (At the time of an Output power) |
Load impedance: | 1Ω to 16Ω (Nominal speaker impedance) 4Ω to 16Ω (EIAJ specification) |
Dumping factor: | 300 (8Ω, 50Hz) |
Input terminal: | Variable - One line Direct - One line |
Output-terminal: | Speaker - Two lines |
[Meter part] | |
Range switching: | x 1 (0dB=300W) x 0.1 (0dB=30W) |
Indicating range: | x 1 range (0.01W-800W) x 0.1 range (1W-80W) - 40-+4dB |
Indication precision: | 0 ±1dB -10 ±2dB -20 ±3dB |
Response speed: | 100 μsec. (-∞ → 0dB) |
Recovery speed: | 1 sec. (-0dB → -20dB) |
Power source: | AC 100V, 50 / 60Hz (Japan model) AC 120V, 60Hz (U.S.A. model) |
Power consumption: | 720W (Electrical Appliance and Material Control Law specification) 160W (At the time of a non-signal) |
Dimensions (W x H x D): | 507 x 264 x 512mm |
Weight: | 63kg (Net) 72kg (Shipping) |
Year: | 1984 |
