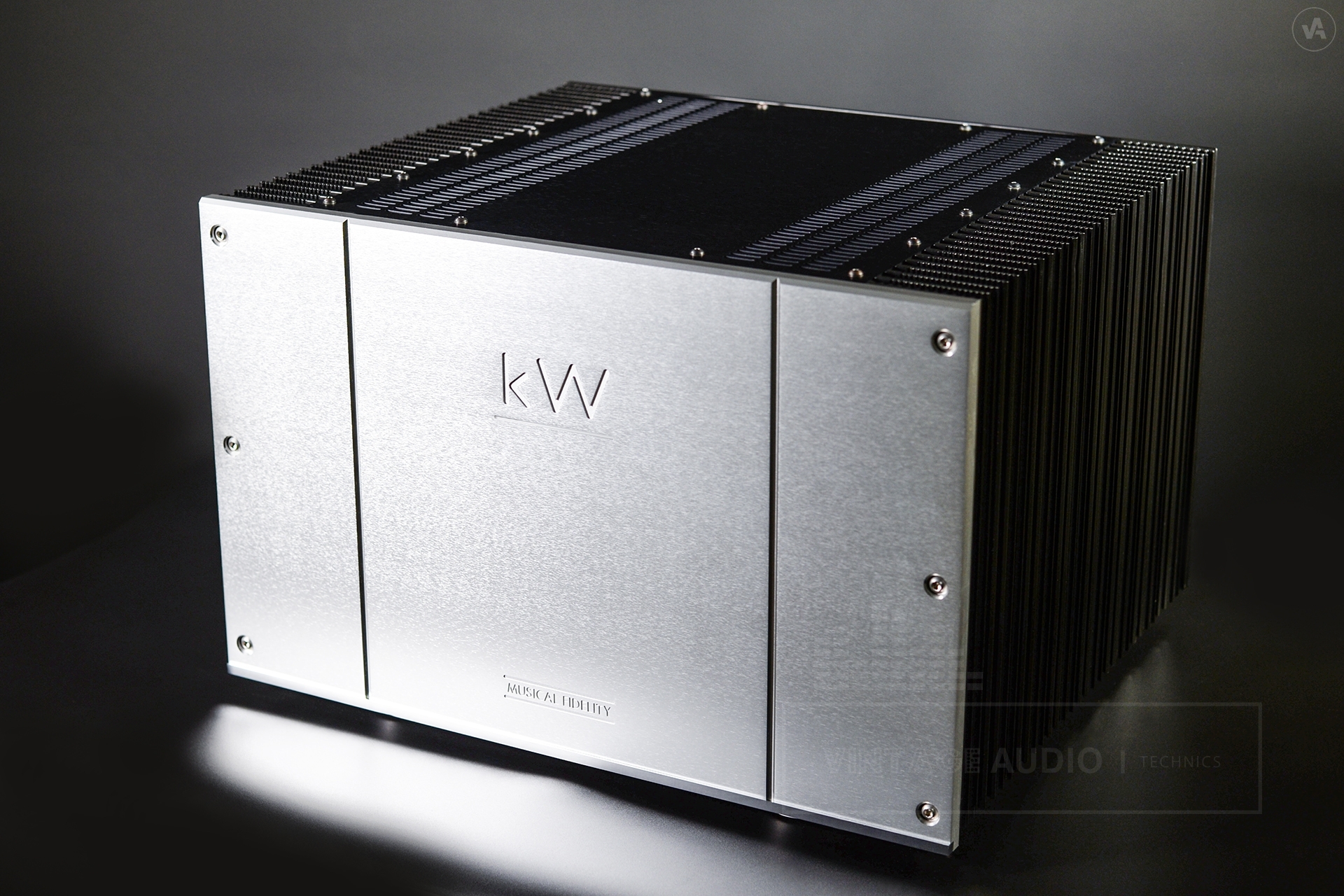

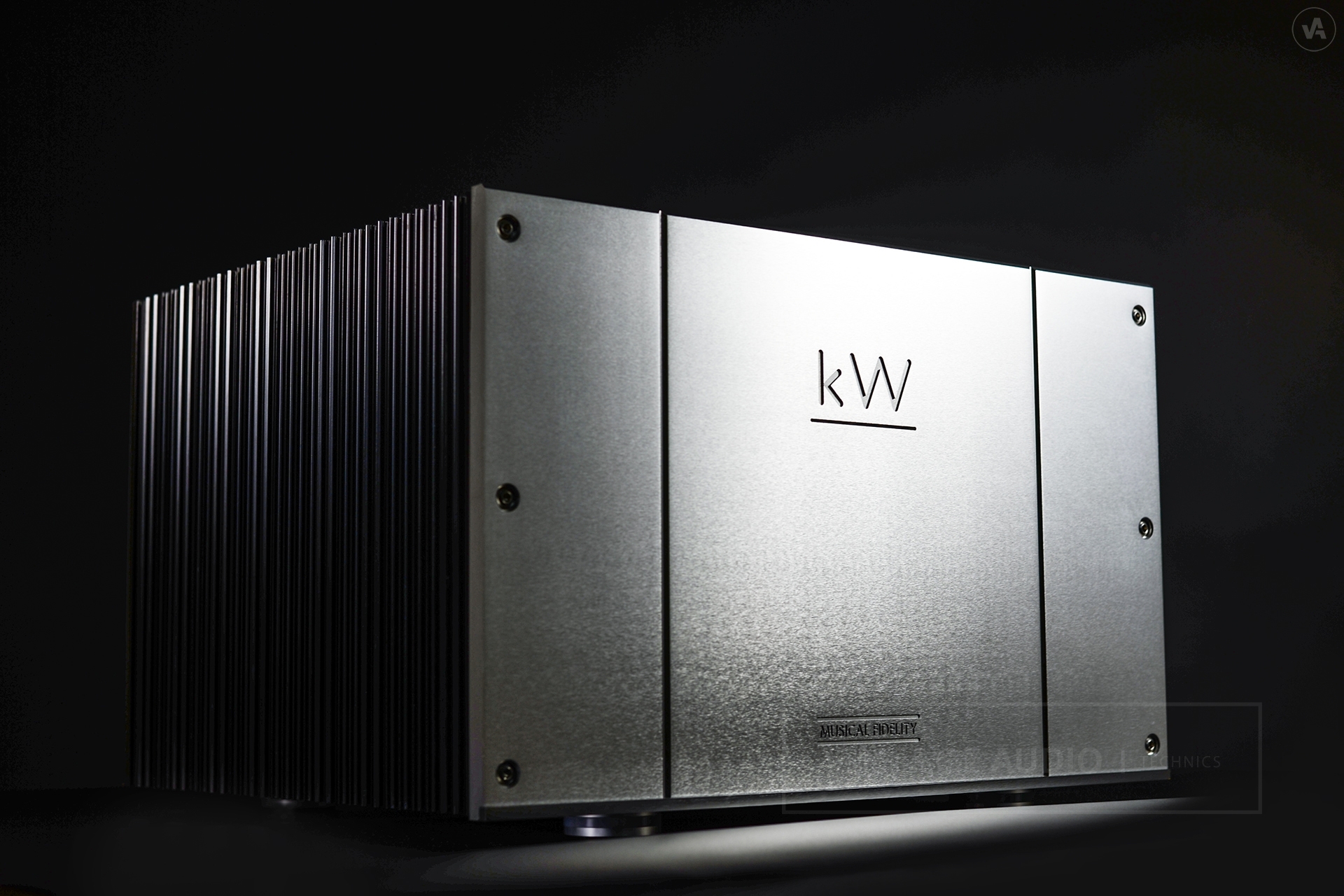

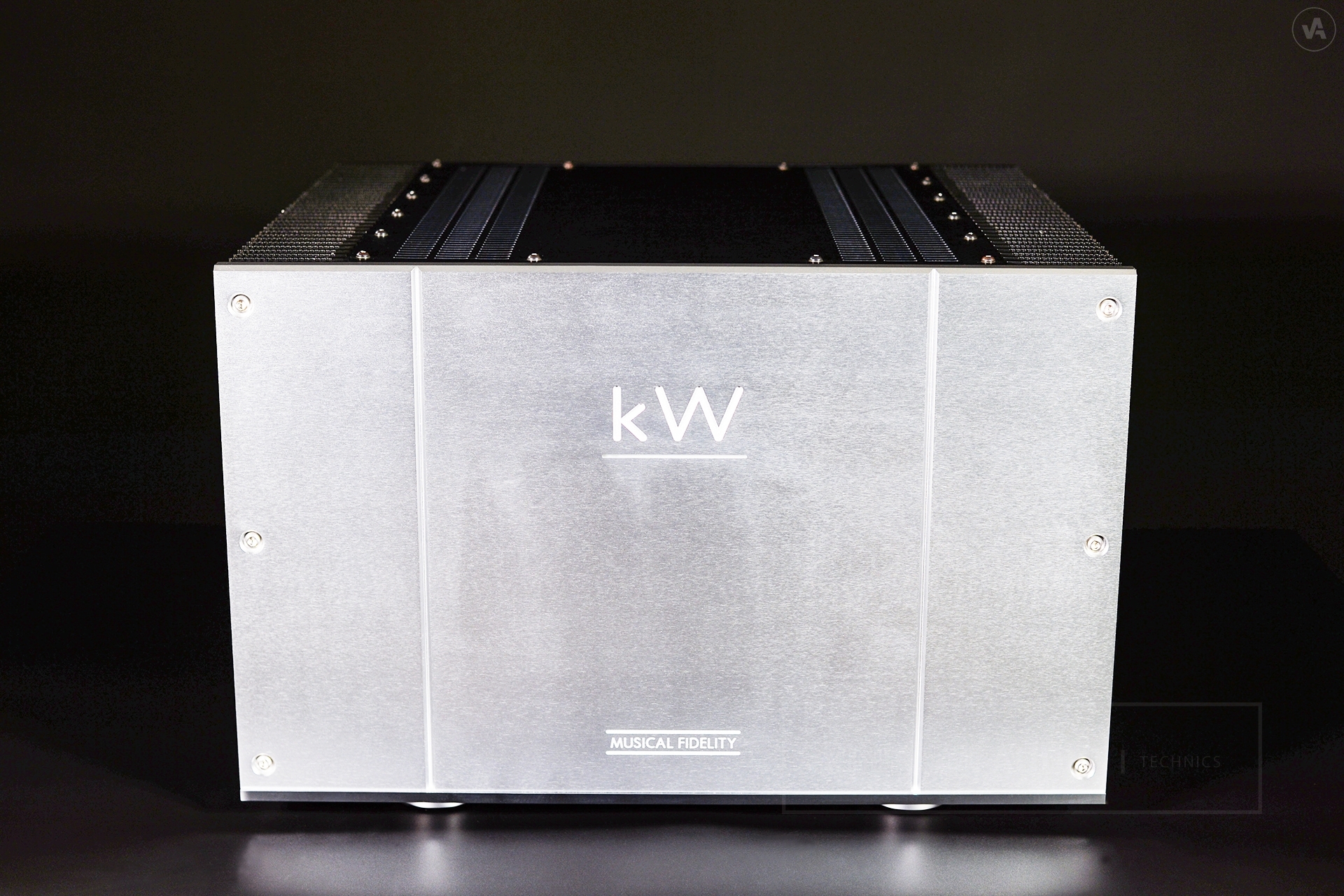

Musical Fidelity TRI-VISTA kW

Technic details

Specifications

Type:	Monoblock power amplifier
Power output, single or both channels driven:	1000W per channel into 8 Ohms (24dBW) 1800W per channel into 4 Ohms 3000W per channel into 2 Ohms
[Output voltage]	RMS: 92V (20Hz to 20kHz) Peak: 130V
Peak output current:	±200A
Damping factor:	205

Output devices per channel:	40
Total Harmonic Distortion + noise:	0.005% at 1kHz up to 80% power, into 8 Ohms < 0.005% at 20Hz to 20kHz at 12.5W into 8 Ohms
Intermodulation distortion:	0.002% at 12.5W into 8 Ohms
Frequency response:	20Hz to 20kHz, ±0dB 10Hz to 100kHz, +0 -1dB
Audio gain:	30dB (31.5 times) nominal
Input impedance:	31K Ohm
Input sensitivity for full power output into 8 Ohms:	2.92V
Signal / noise ratio, reference full power output:	>124dB “A”- weighted
Input:	1 RCA connector
Outputs:	2 monobloc channels via 3 pairs of speaker binding posts per channel
[Standard accessories]	IEC mains leads - 16 Amp type: Two, 2.4 metres each Switched mains interconnection leads: Two, 1.2 metres, and 0.7 metres Low voltage interconnection leads: Two, 1.2 metres, and 0.7 metres Control interconnection leads: Two, 1.2 metres, and 0.7 metres Loudspeaker leads: Two, twin conductors, 3 metres each
Power requirements:	AC 230V, 50/60Hz
Power consumption:	3000W maximum (With 8 Ohms load) 160W (Idle per channel)
