Type: | Tube Mono Amplifier |
Effective output: | 200W |
Frequency Response: | 20Hz at 20kHz (+0 -0.2dB) |
Distortion: | 1% |
Output impedance: | 4, 8, 16.5, 25, 66, 100 and 600 ohms (600 ohms output is balanced to ground. All low impedance outputs can be isolated from ground) |
Output voltages: | 25, 57.5, 70.7, 115, and 141.4V |
Damping factor: | 10 |
Input impedance: | 250kohms |
Input sensitivity: | 0.5V |
Line voltage adjustment: | For 108, 117 or 125V |
Input Transformers: | M-107 or M107A - 50, 250 or 600 ohms (-14dBm) M-108 - 20kohms bridging (12dBm) M-180 - 250 or 600ohms (-24dBm) |

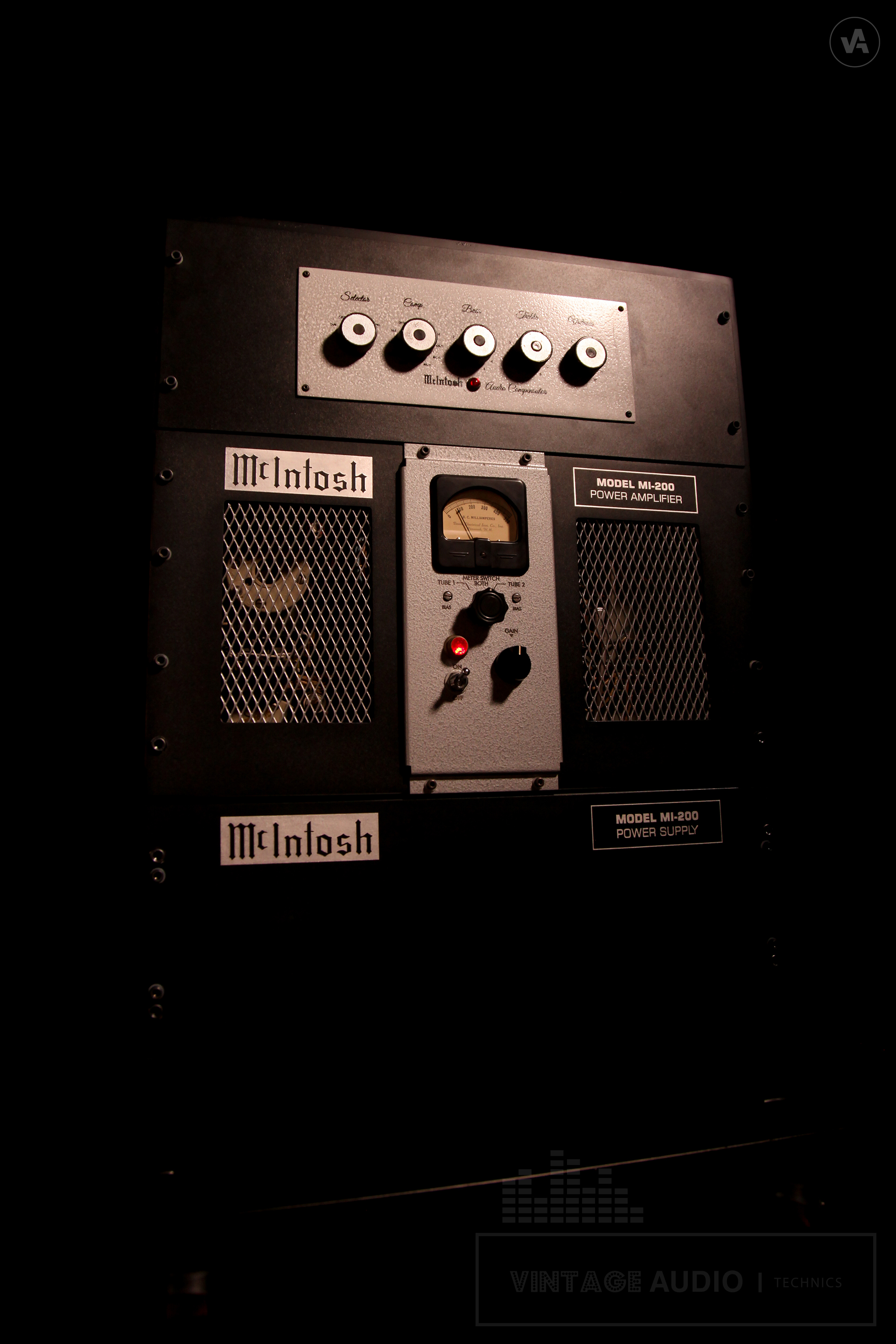

Mechanical: | Grey hammertone chassis Separate amplifier and power supply chassis |
Power Supply model: | K-107 |
Line voltage switch: | 117 or 125V |

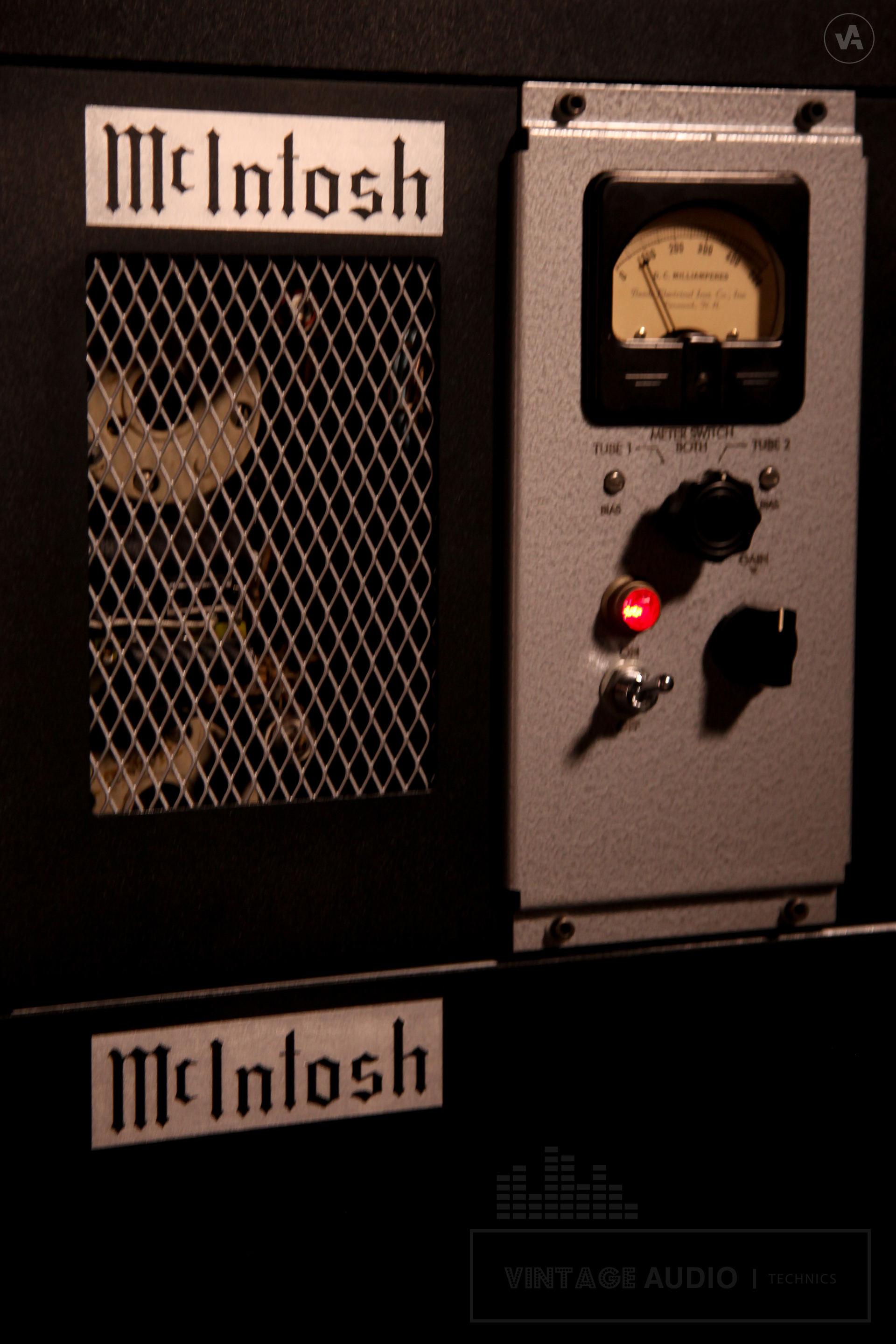

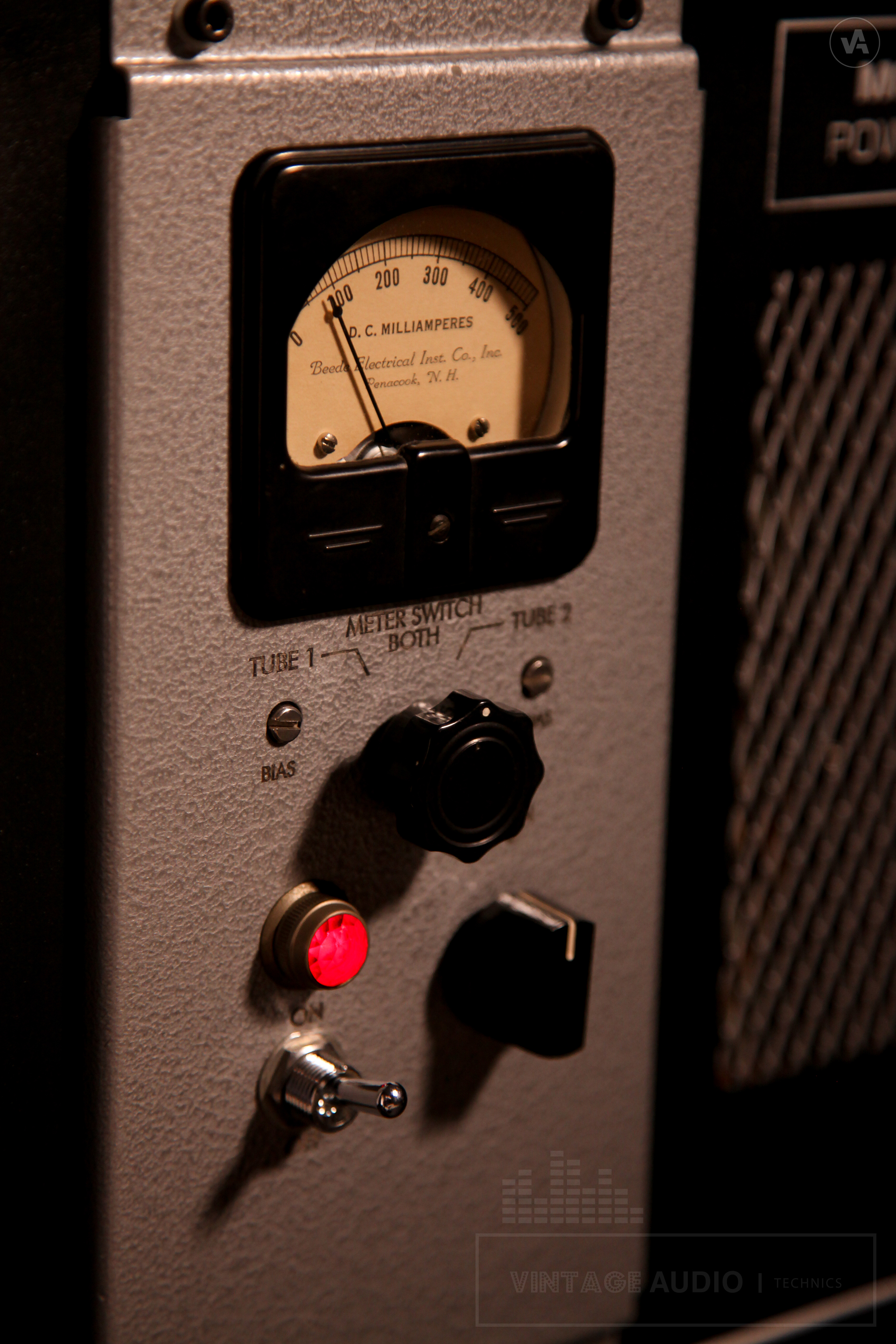

Amplifier Front Panel: | Gain control |
Power switch: | On or off |

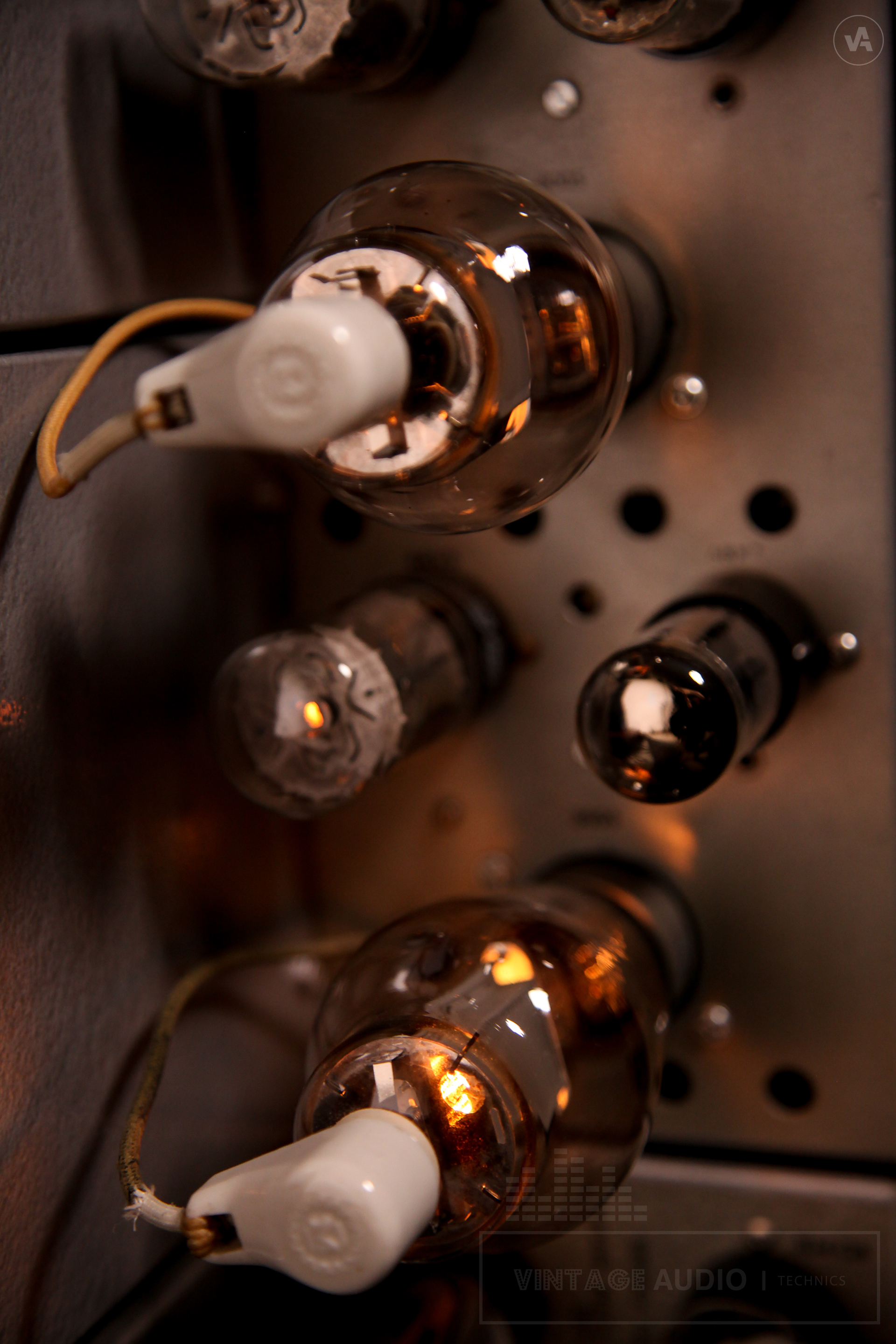

Tubes: | 2 x 8005 output, 2 x 6BX7, 2 x 6AV5, 12AU7, 12AX7, 2 x 5Y3, 4 x 5U4 |
Amplifier dimensions (H x W x D): | 279 x 483 (for rack mounting) x 229mm |
Power supply dimensions (H x W x D): | 178 x 483 (for rack mounting) x 229mm |
Weight: | 63,5kg |
