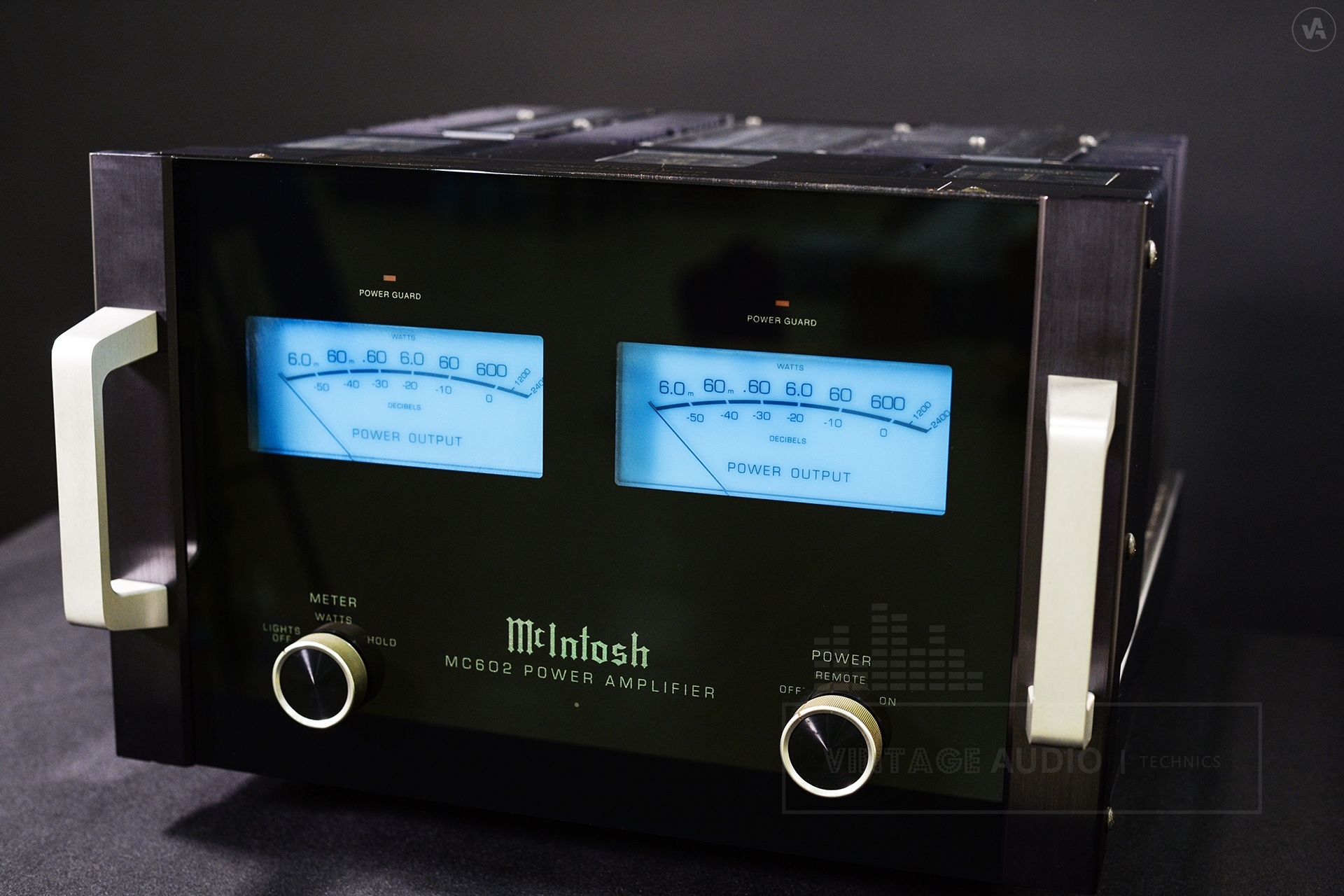

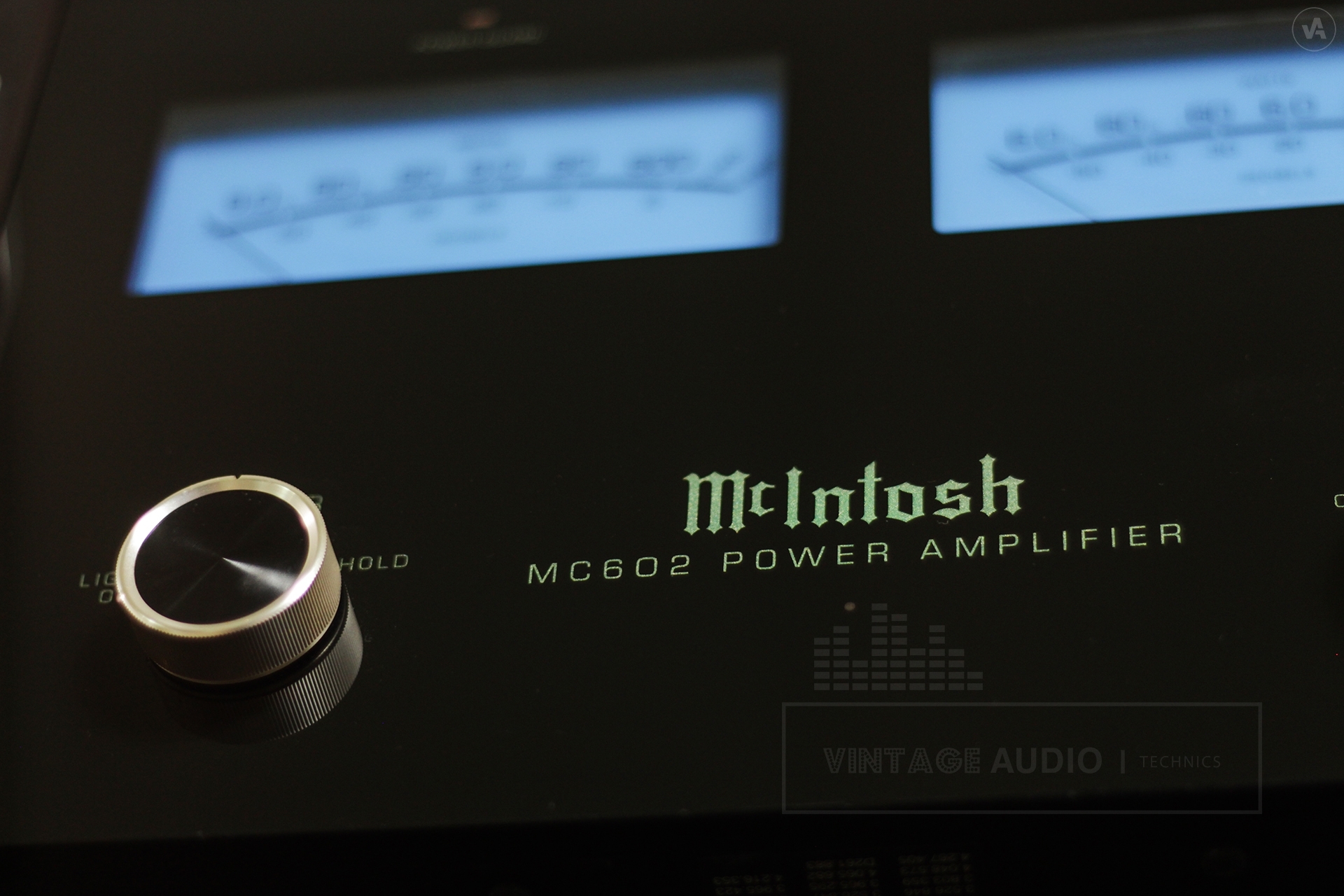

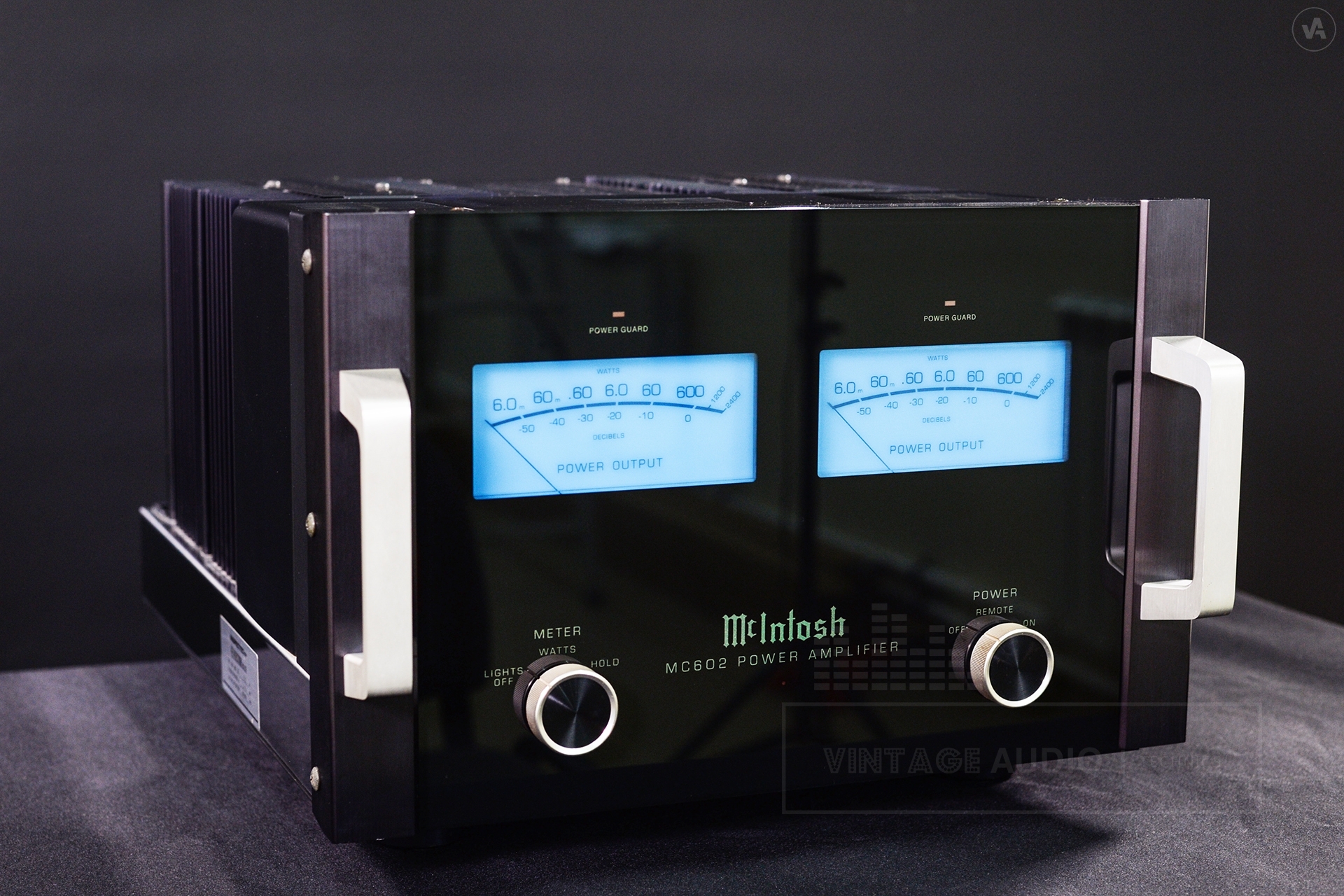

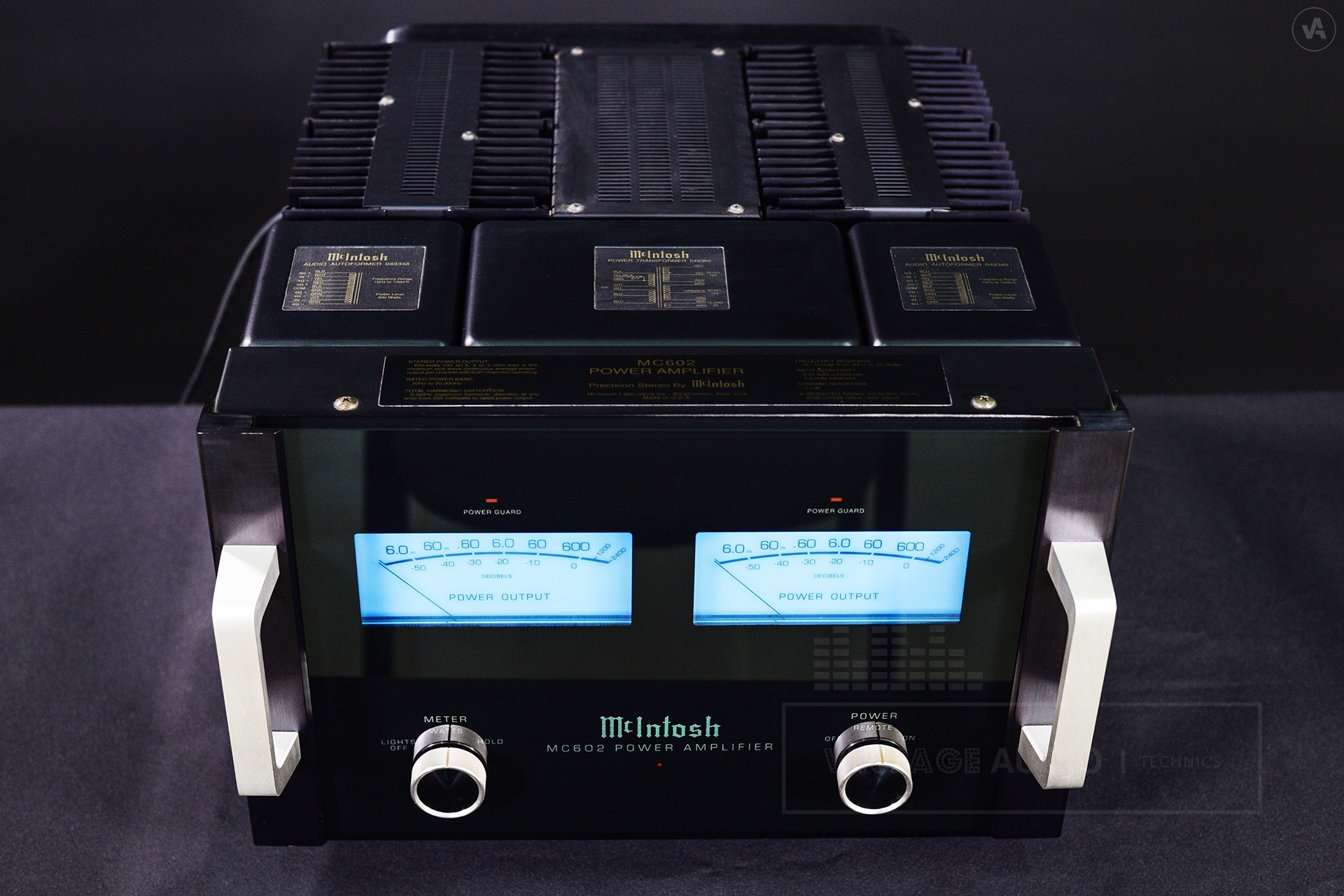

McIntosh MC602
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Stereo Power Amplifier |
Rated output: | 600W + 600W (2Ω, 4Ω, 8Ω load, 20Hz to 20kHz, sine wave) |
Output voltage (RMS): | 34.6V (2V) 49V (4Ω) 69.3V (8Ω) |
Rated output bandwidth: | 20Hz to 20kHz |
Total harmonic distortion: | 0.005% or less (250mW to rated power output per channel from 20Hz to 20kHz with both channel operating) |
Dynamic headroom: | 2.1dB |
Frequency characteristics: | 20Hz to 20kHz, +0 -0.25dB 10Hz to 100kHz, +0 -3dB |
Output load impedance stereo: | 2Ω 4Ω 8Ω |
Peak output current: | More than 150A |
[Input sensitivity] | Unbalance: 2.45V Balance: 4.9V |
Input impedance: | 10kΩ |
[S / N ratio (A weight)] | Unbalance: 93dB (120dB or less than rated output) Balance: 97dB (124dB below rated output) |
Cross modulation distortion (SMPTE): | 0.005% max (Instantaneous peak power output ≤ rated output x 2) |
Wideband damping factor: | 100 (8Ω output) |
Power guard: | Clipping prevention |
Power supply: | AC 100V, 50 / 60Hz, 18A (Japan) AC 120V, 60Hz, 15A (US and Canada) |
External dimensions (W x H x D): | 445 x 310 x 537mm |
Weight: | 70.3kg (Net) 81.6kg (Shipped) |
Year: | Around 2000 |
