Type: | Monophonic Power Amplifier |
RMS Power Output (2 / 4 / 8ohms): | 1,000W minimum sine wave continuous average power output from 20Hz to 20kHz |
Output Load Impedance: | 2, 4, 8ohms |
Rated Power Band: | 20Hz - 20kHz |
Peak Output Current: | > 160A |
THD (20Hz - 20kHz): | 0.005% or less (at the time of 250mW - 1,000W output) |
Intermodulation Distortion (20Hz - 20kHz): | 0.005% or less (less than twice of an Output Power Rating) |
Frequency Response: | 20Hz-20kHz, +0 / -0.25dB 10Hz-100kHz, +0 / -3dB |
Input Sensitivity: | 2.5V |
Weighted S/N ratio: | Balanced – 90dB (120dB below rated output) Unbalanced – 85dB (115db below rated output) |
Dynamic Headroom: | 2.1dB |
Wide Band Dumping Factor: | 200 (8ohms) |
Input Impedance: | 10kohms |

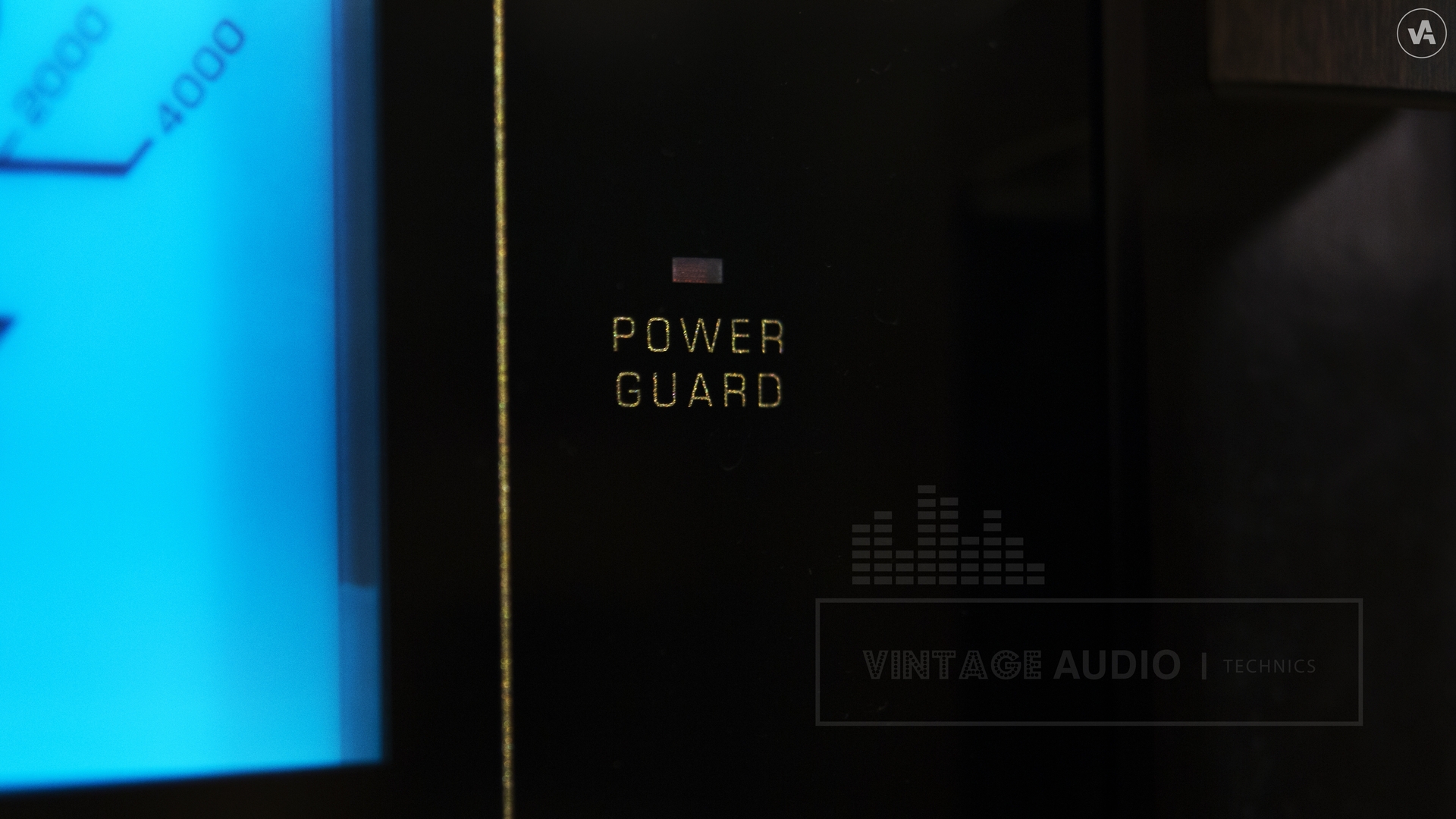

Power Guard®: | It is less than THD2% to over-drive 14dB at 1kHz |
Power Requirements: | AC 120V, 50Hz/60 Hz 12A, 1,440W (Underwriters Laboratories/CSA) |
Dimensions (W x H x D): | 438 x 264 x 511mm |
Weight: | 47.6kg |
