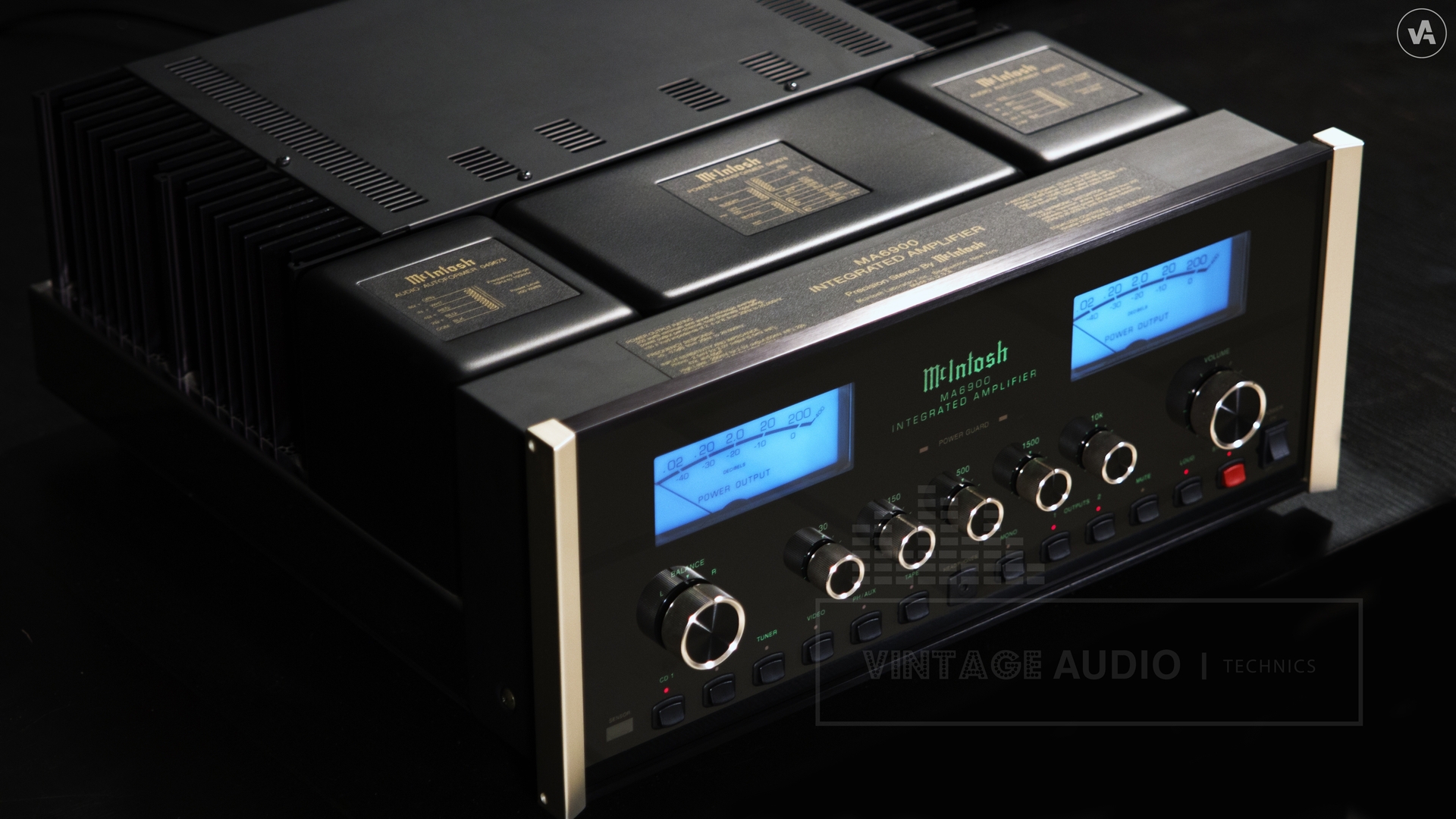

Type: | Integrated Stereo Amplifier |
Rated output (at both channel operation): | 200W + 200W (2Ω, 4Ω, 8Ω, sine wave continuous output) |
Load impedance: | 2Ω, 4Ω, 8Ω (independent terminal) |
Output frequency bandwidth: | 20Hz to 20kHz |
Total Harmonic Distortion Ratio: | 0.005% or Less (20Hz to 20kHz, 250mW to 150W, in Operation on Both Channels) |
Intermodulation distortion ratio (at both channel operation): | maximum 0.005% or less (250mW to 200W when arbitrary combination of 20Hz to 20kHz) |
* When the instantaneous peak output does not exceed the rated output of 400W | |
Frequency response: | 20Hz to 20kHz, + 0 - 0.5dB |
Preamplifier section Maximum output voltage: | 8V (20Hz to 20kHz) |
Input sensitivity: | Phono - 2.5mV (2.5V rated output, 0.5mV IHF) High Level - 250mV (2.5V rated output, 50mV IHF) Power amp in - 2.5V (rated output) |
S/N ratio (IHF-A network): | Phono - 90dB (84dB IHF at input 10 mV or less) High Level - 100dB (90dB IHF at rated output or less) Power amp - 110dB (when rated output is below) |
IHF dynamic head room: | 2.4dB (2Ω, 4Ω, 8Ω) |
Damping factor: | 100 or more (8Ω) |
Voltage gain: | High Level → tape - 0dB High Level → main - 20dB |
Equalizer control: | 50Hz, 150Hz, 500Hz, 1.5kHz, 10kHz ± 12dB |
Power supply: | AC 100V, 50Hz / 60Hz, 4.0A |
External dimensions (W x H x D): | 444.5 x 181.0 x 419.1mm |
Weight: | 33.8kg |
Year: | 2001 |
