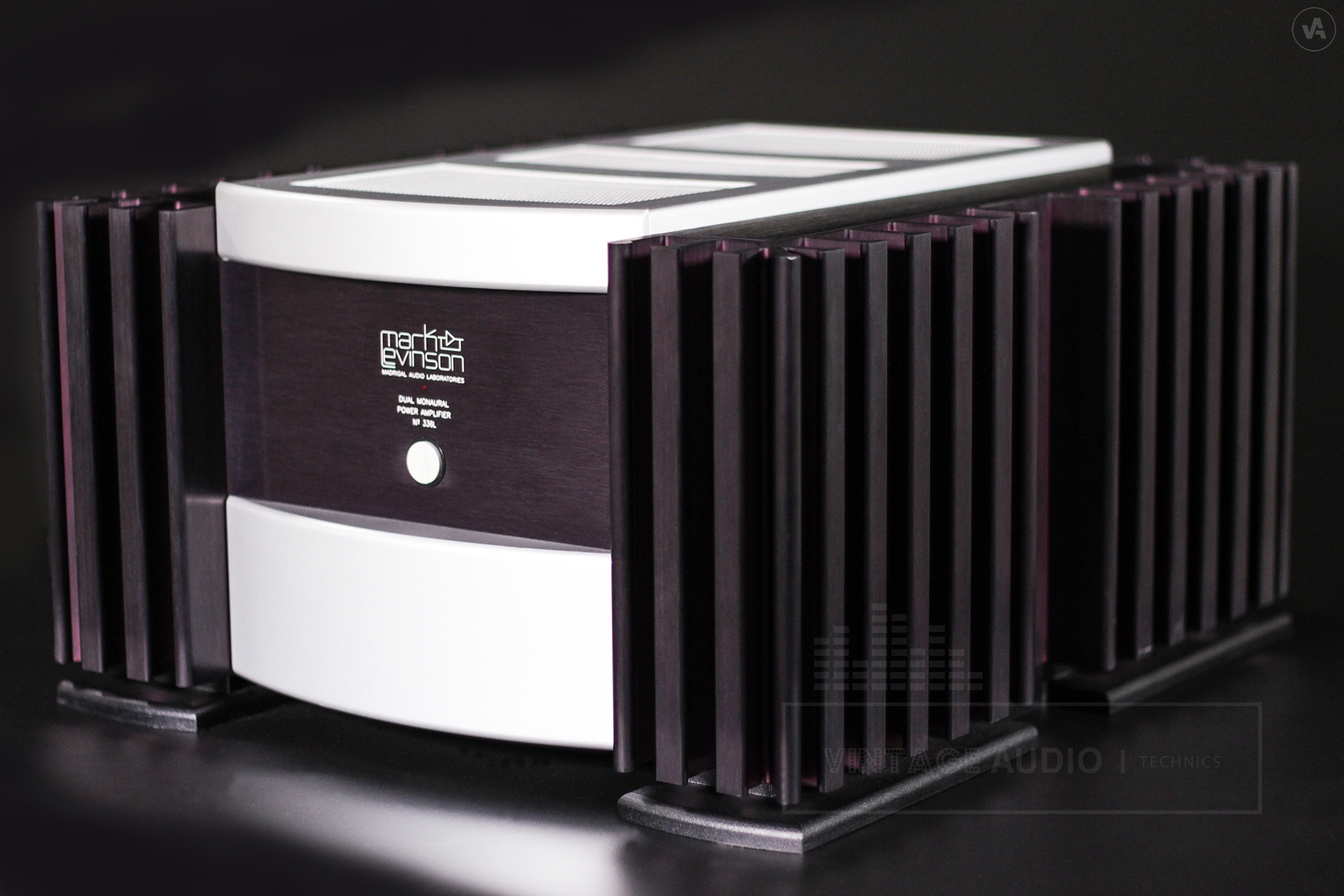

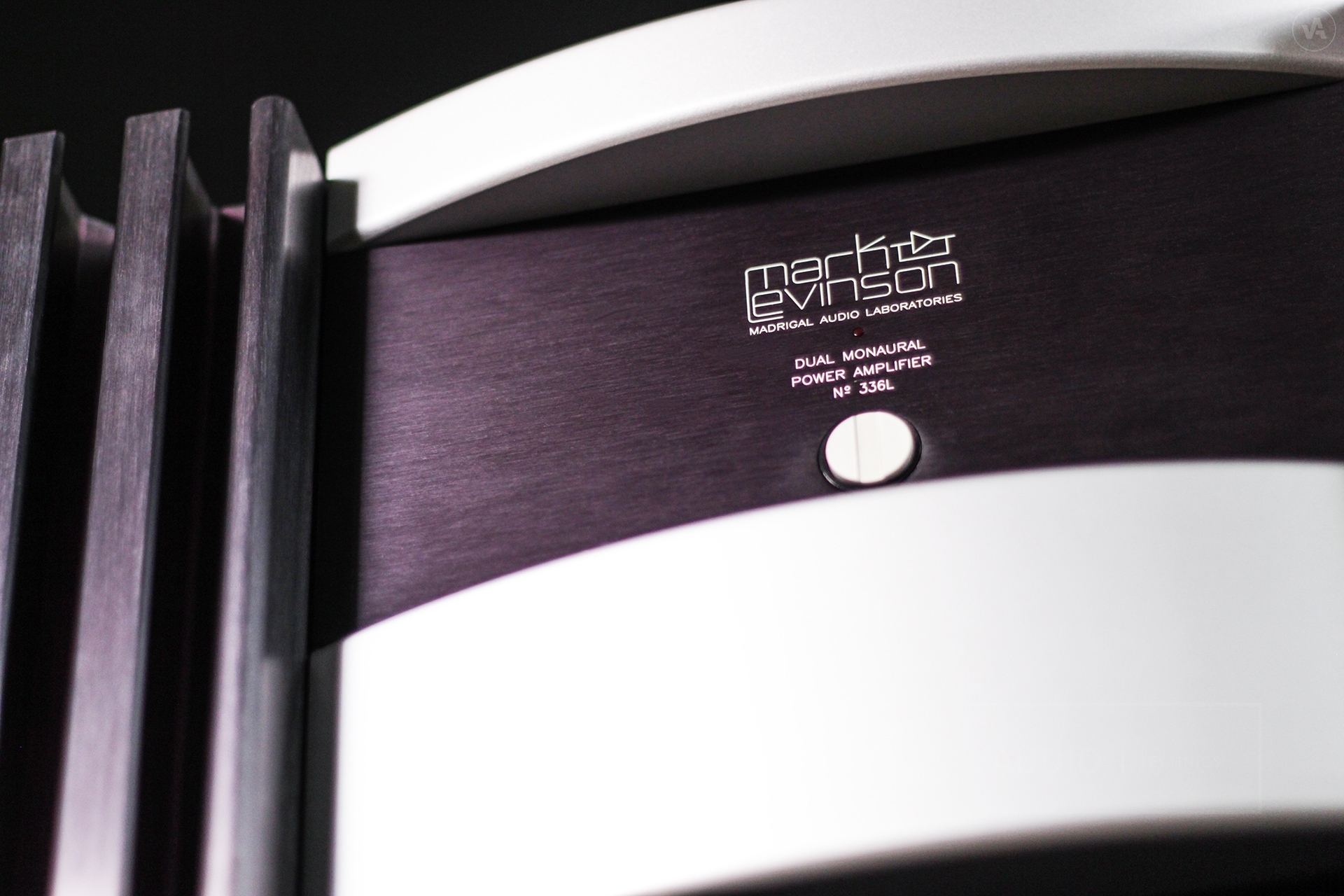

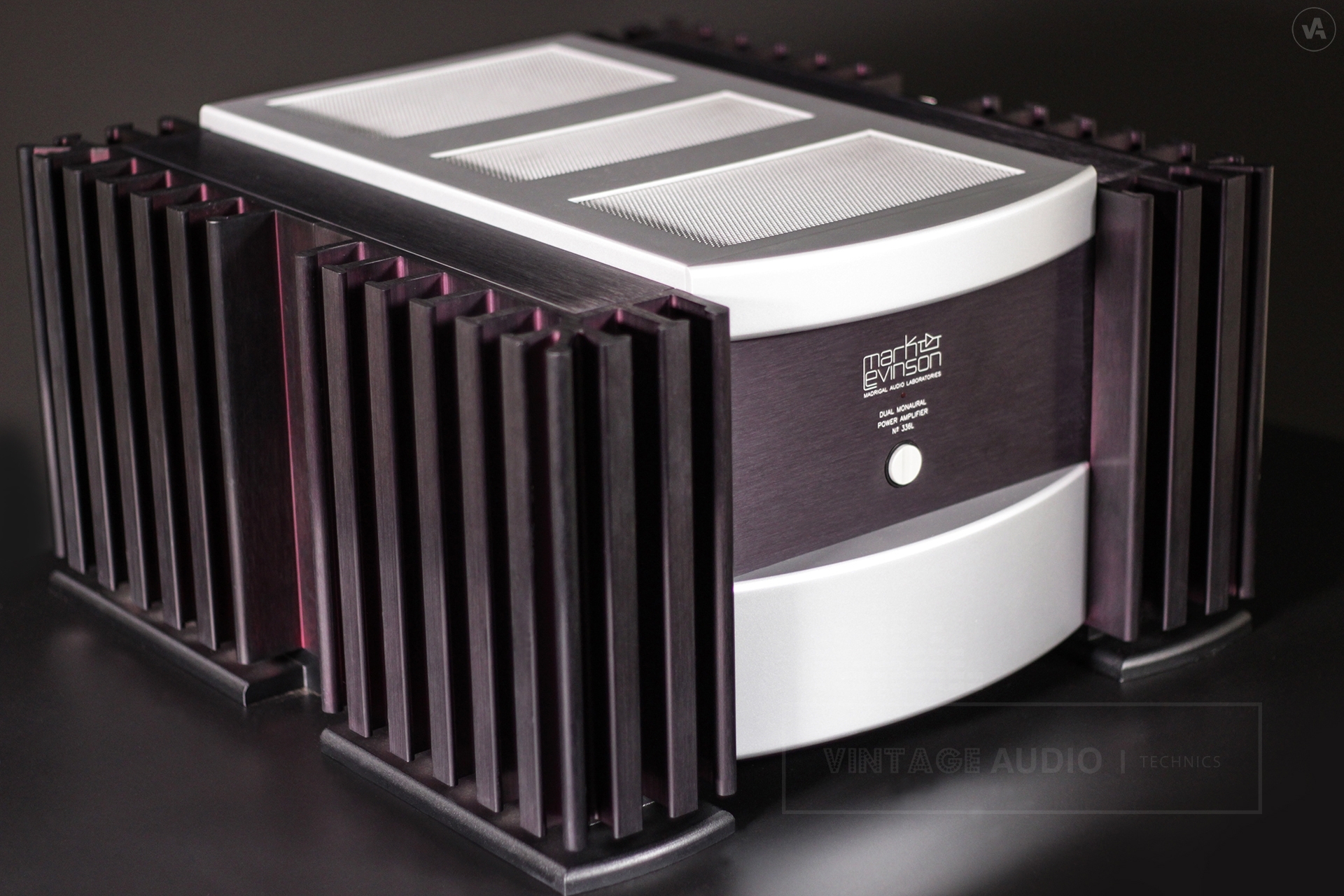

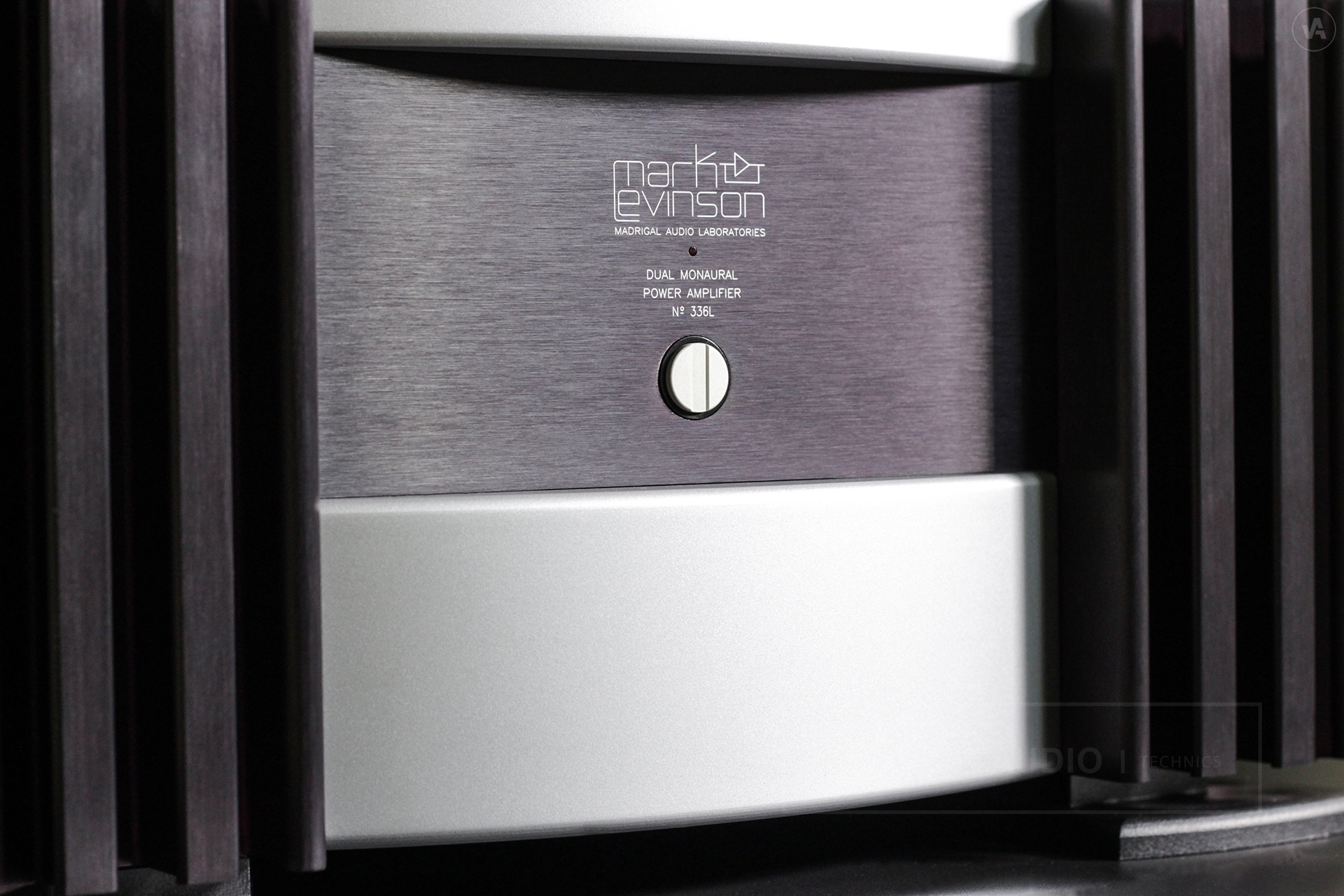

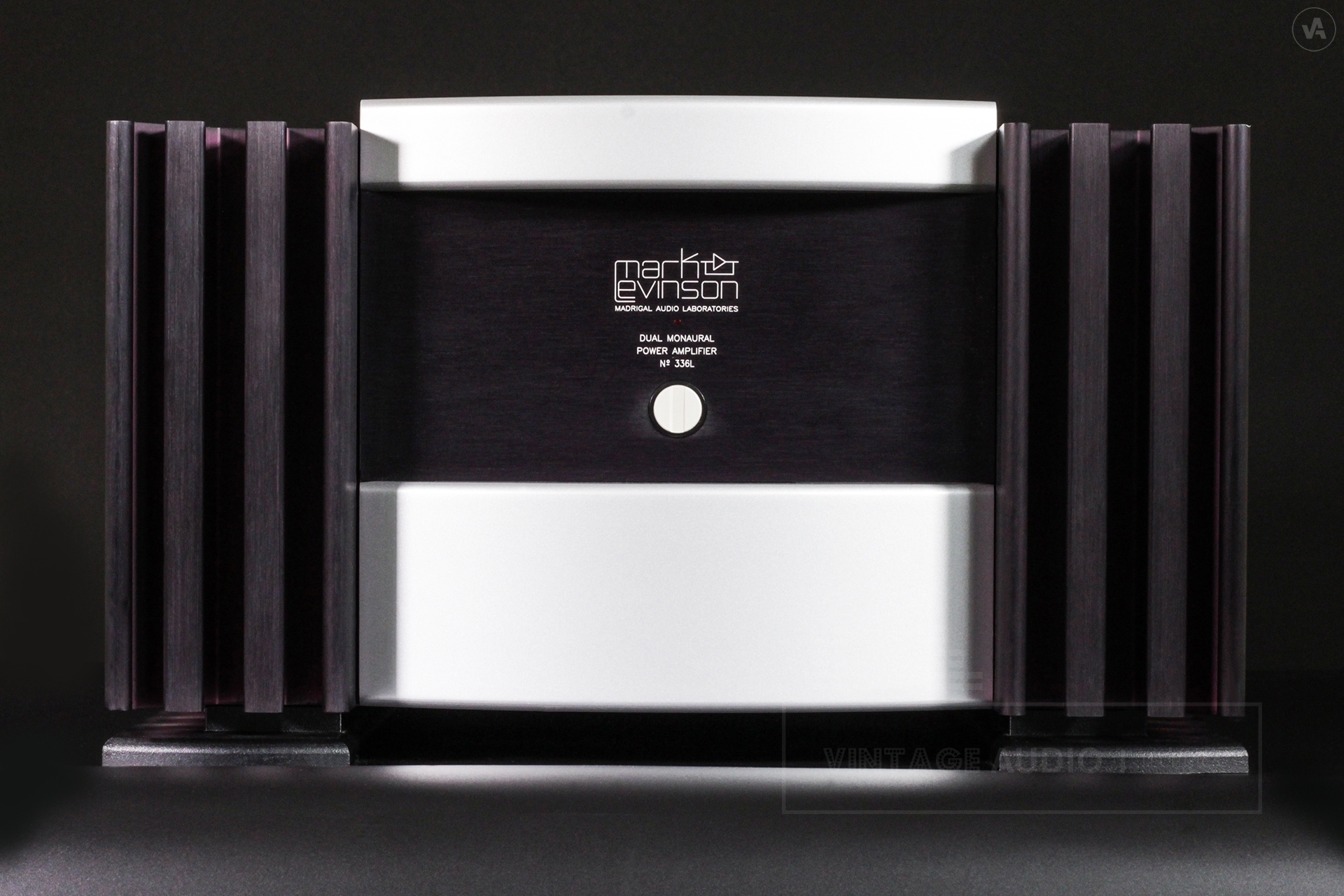

Mark Levinson № 336
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Dual Monaural Power Amplifier |
Rated power output: | 350W per channel continuous rms power into 8Ω 700W per channel continuous rms power into 4Ω 1400W per channel continuous rms power into 2Ω *All above power ratings from 20Hz to 20kHz at <0.5% THD (Assuming that the AC mains can deliver adequate current, without its own voltage sagging) |
Frequency response: | Within 0.1dB from 20Hz to 20kHz |
S / Noise ratio (Main outputs): | Better than 80dB (Ref. 1 w) |
Speaker load impedance: | 2Ω (Minimum) |
Input impedance: | 100kΩ (Balanced) 50kΩ (Single-ended) |
Voltage gain: | 26.8dB |
Input sensitivity (2.83V output): | 130mV |
Input sensitivity (Full output): | 2.419V |
Output impedance: | Less than 0.05Ω from 20Hz to 20kHz |
Damping factor: | Greater than 800, 20Hz to 20kHz @ 8Ω |
Connector complement: | Four custom binding posts per channel One 3-pin XLR balanced input connector per channel One RCA input connector per channel Two 1⁄8" mini-jacks for remote turn-on Two Mark Levinson communications ports Two PHAST® communications ports One captive high current AC mains cord |
Power supply: | AC 100V, 50 / 60Hz |
Power consumption: | 350W (±5%) (At idle) 200W (±5%) (In standby) |
Overall dimensions (W x H x D): | 446 x 261.6 x 478.3mm |
Shipping weight: | 68.2kg |
Year: | 1998 |
