Type: | Monoblock power amplifier with separated power supply |
Power output: | 160Wpc at 1kHz for 0.6% THD into 1, 4, 8, and 16 ohms (22dBW, 19dBW, 16dBW, 13dBW, respectively) |
Input sensitivity: | 775 mV |
Input impedance: | 1 MOhm |
Closed-circuit current setting: | Automatic |
Bandwidth: | 20Hz - 30kHz |
Output impedance: | 2, 4 - 8, 16 ohms (internally switchable) |

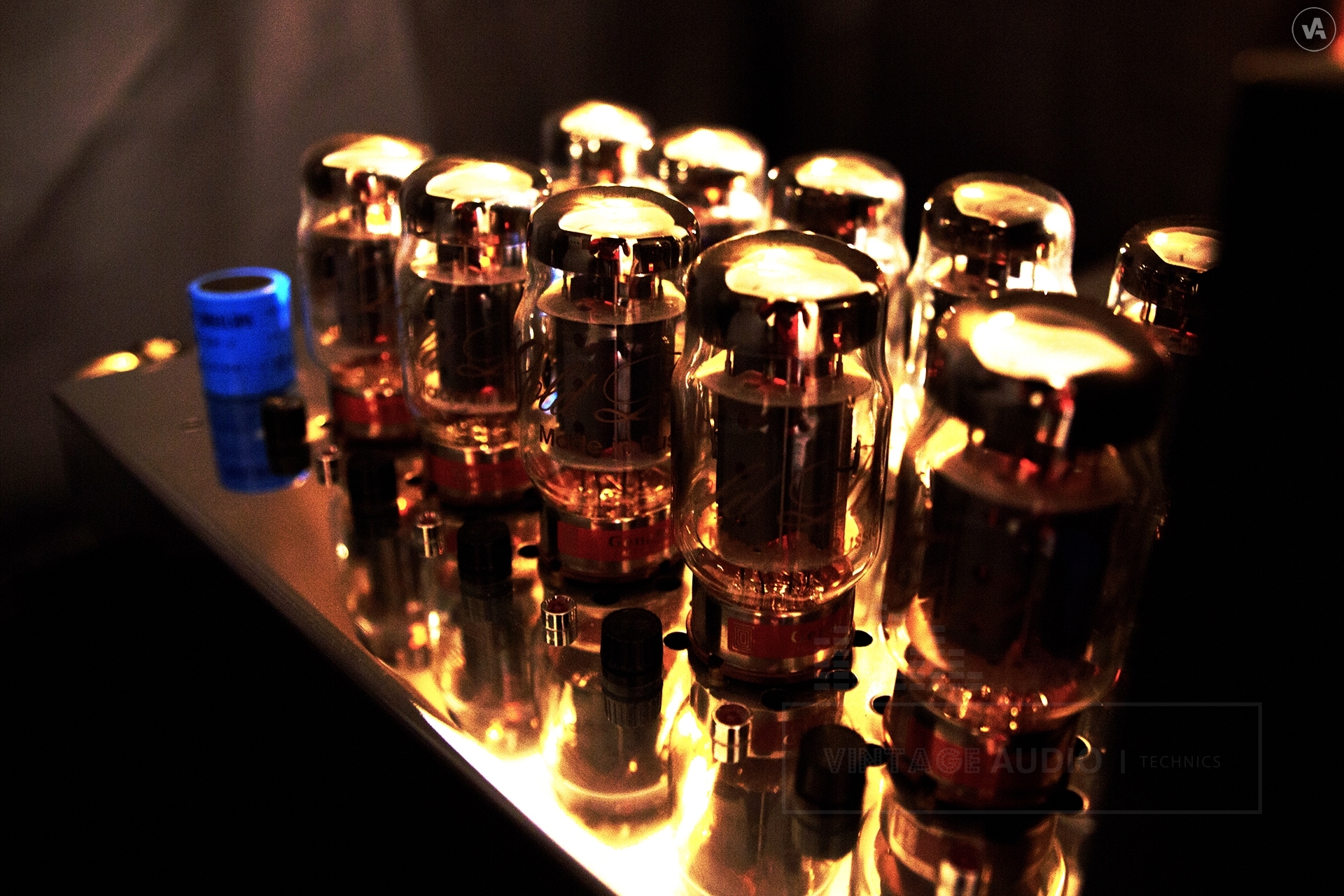

Tubes: | 20x 6CA7, 4x ECC83, 2x ECC82 |
Power supply: | AC 230V |
Power consumption: | 440W / channel |
Dimensions (WxHxD): | 4 chassis of 26 x 23 x 58 cm |
Weight: | Approx. 60 kg / channel |
