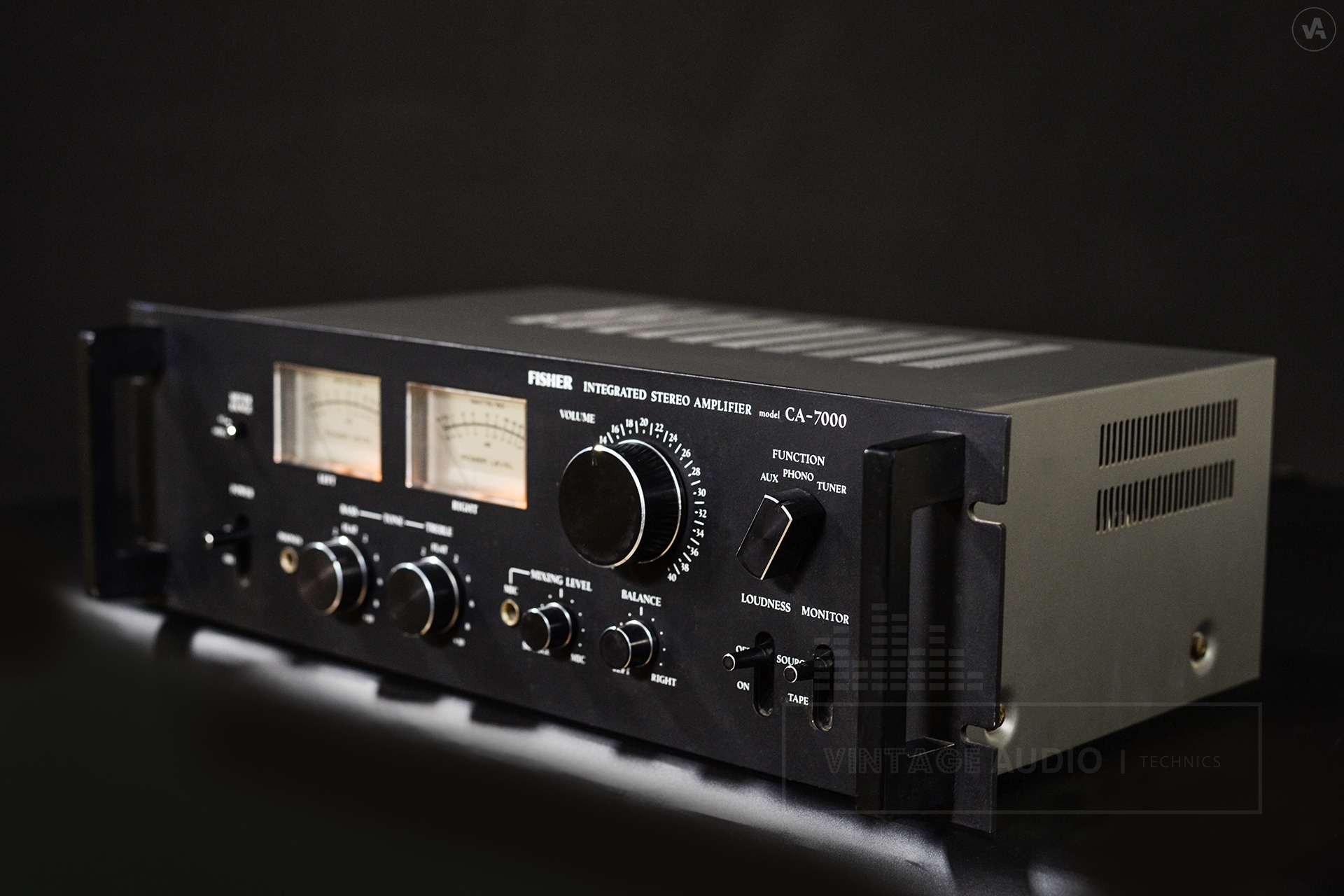

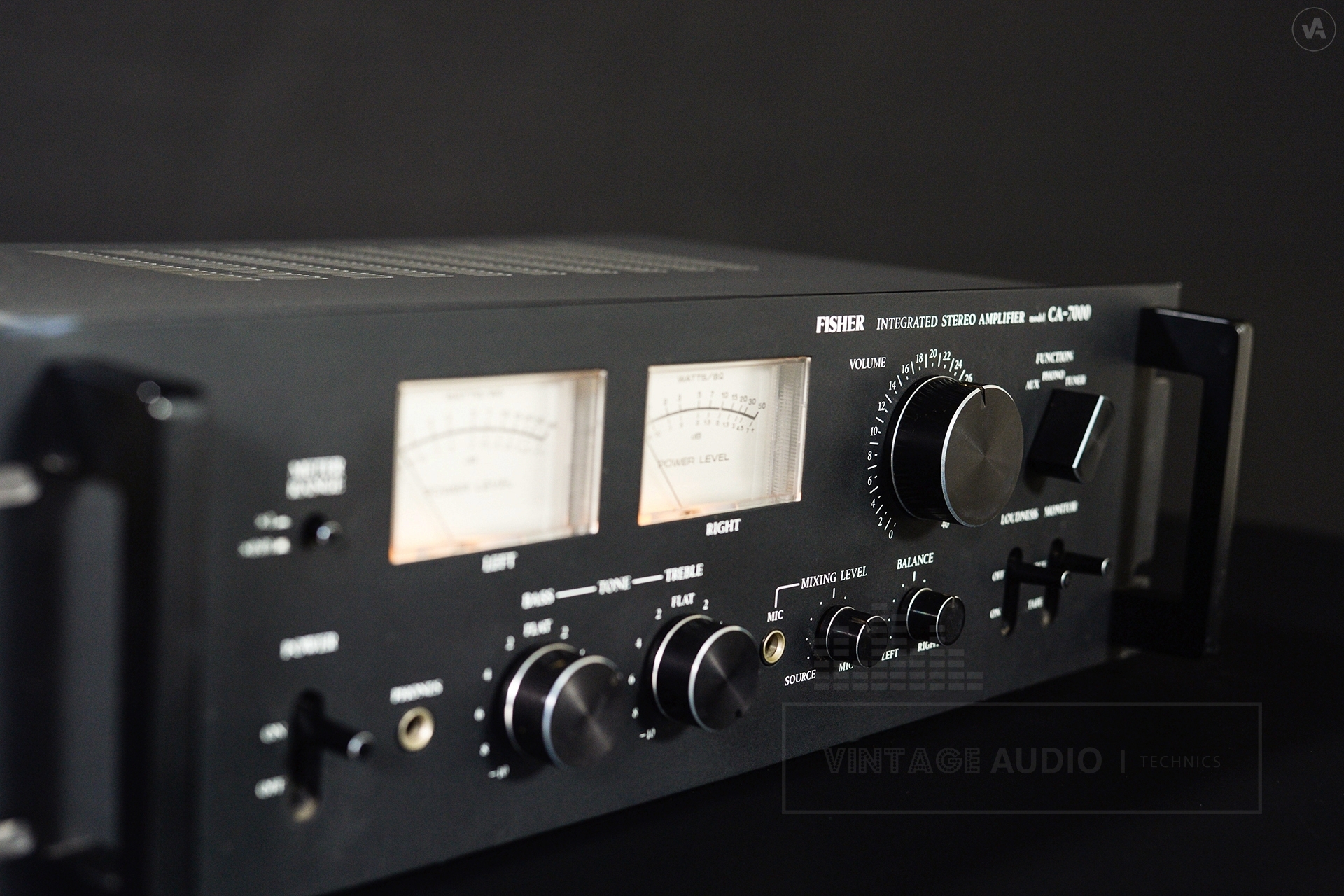

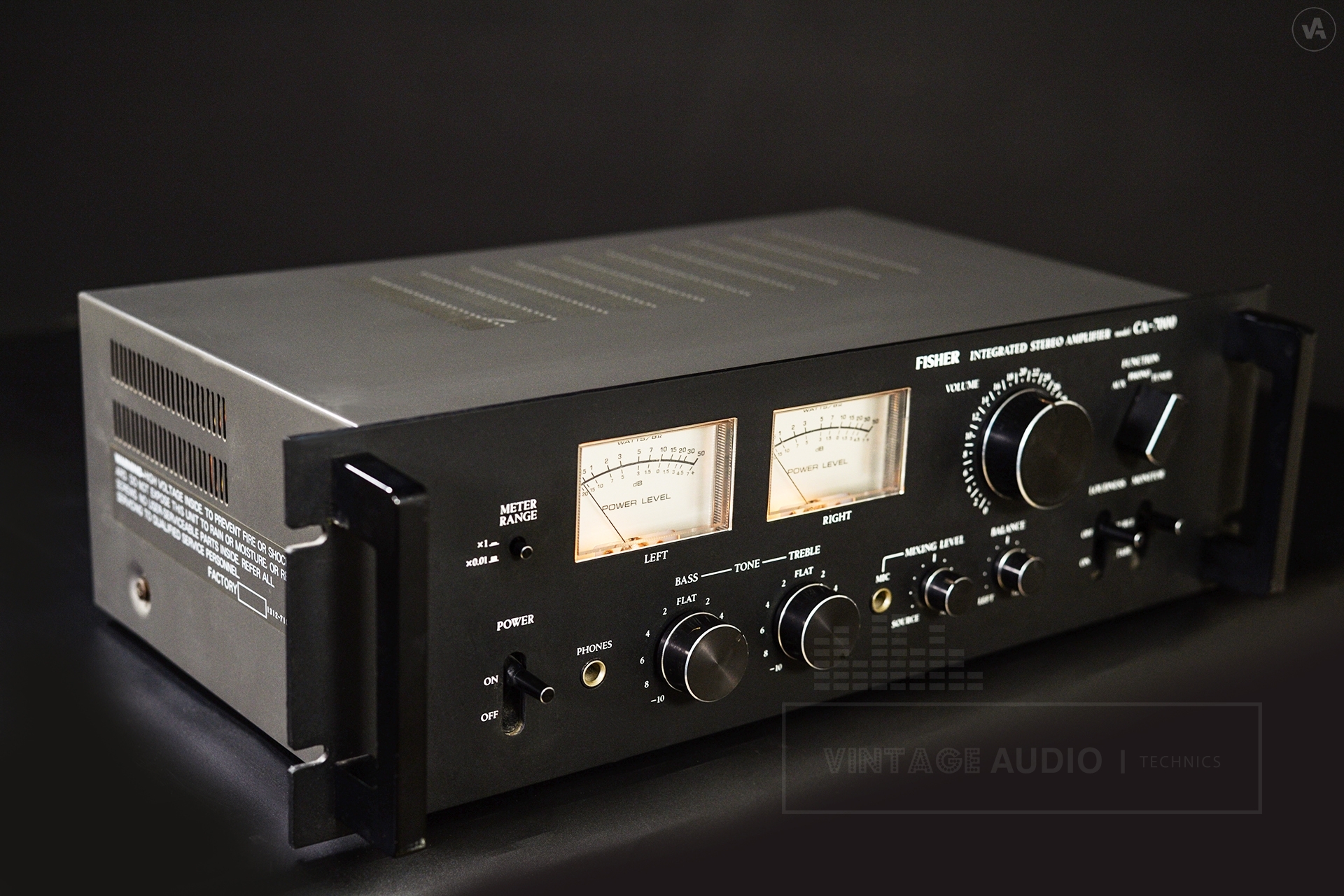

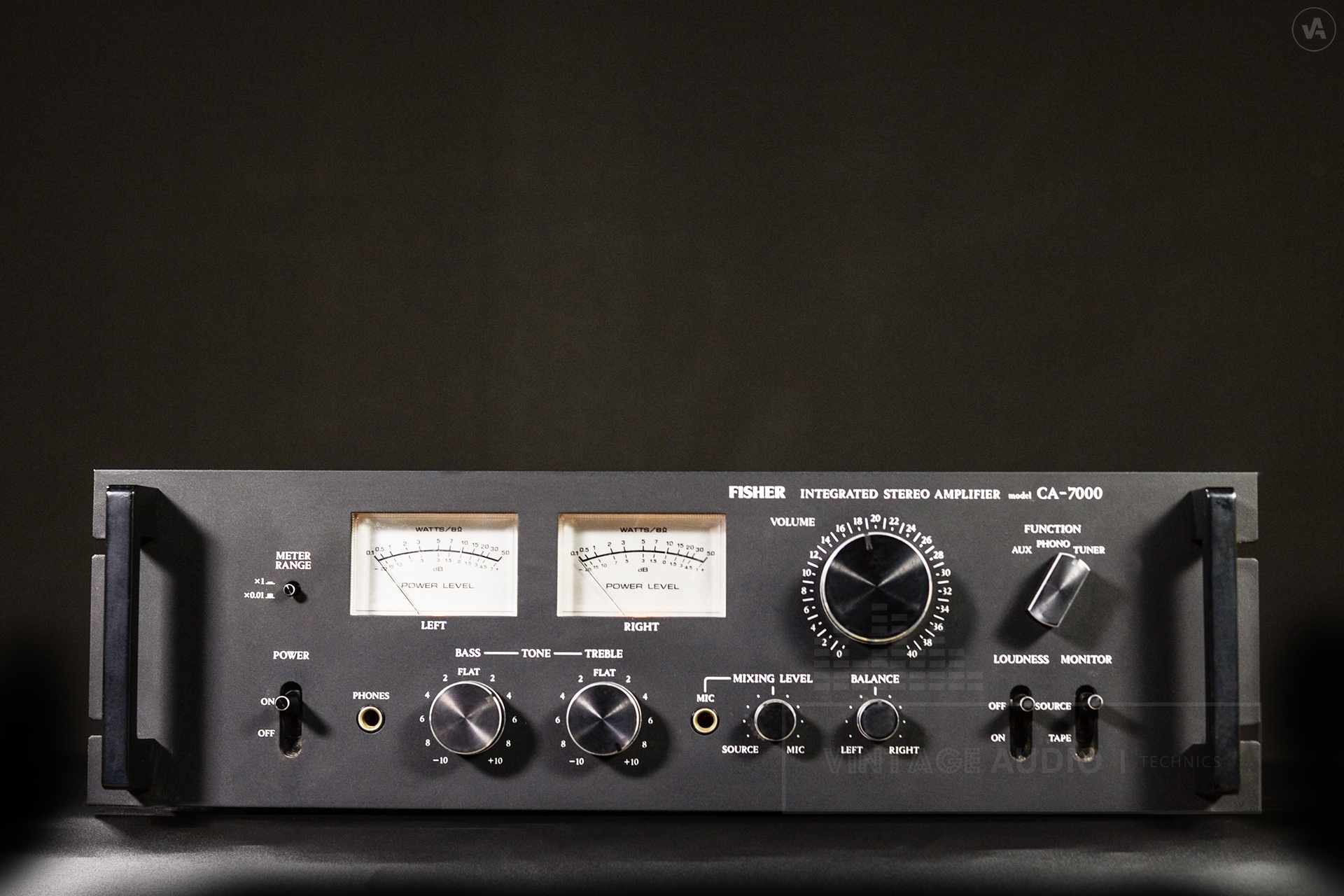

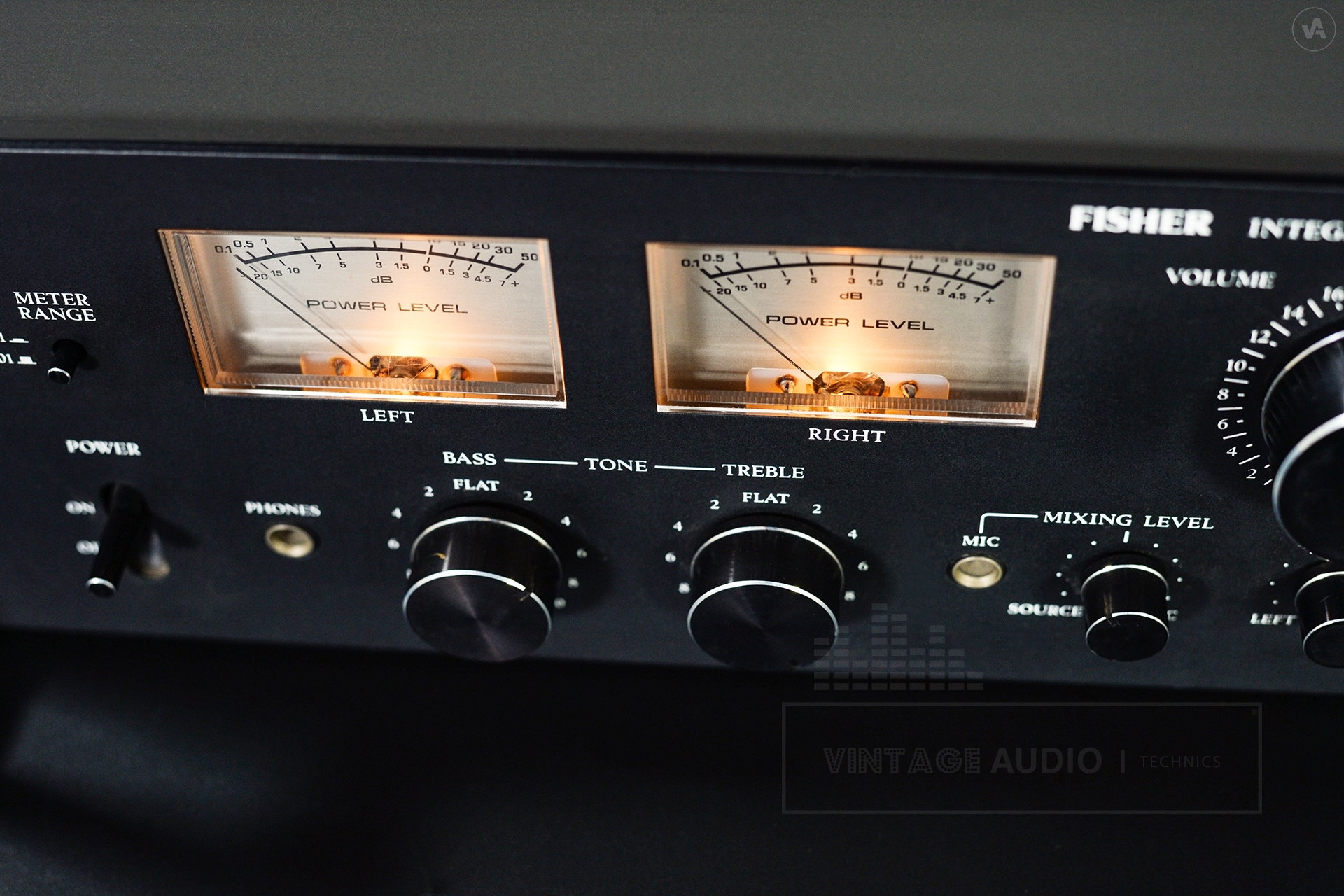

Fisher CA-7000
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Integrated Stereo Amplifier |
[Power Amplifier Section] | |
Power output: | 42W per channel into 8Ω (Stereo) |
Power bandwidth: | 15Hz to 40kHz |
Total harmonic distortion: | 0.3% (At effective output) 0.03% (At 10W output) |
Damping factor: | 40 (8Ω) |
[Pre Amplifier Section] | |
Frequency response: | 20Hz to 20kHz, +0dB -2dB |
Input sensitivity / Impedance: | 2.5mV / 50kΩ (Phono) 150mV / 70kΩ (Tape monitor) 150mV / 35kΩ (Tuner) 150mV / 35kΩ (AUX) 2.5mV / 6kΩ (Mic.) 150mV / 35kΩ (Tape PB) |
Output level: | 150mV (At tape Rec.) |
RIAA deviation: | ±0.5dB |
Signal to noise ratio: | 75dB (Phono, IHF A network) 85dB (Tuner, IHF A network) 85dB (AUX, IHF A network) |
Tone control: | Bass - ±10dB, 50Hz Treble - ±10dB, 20kHz |
Loudness Contour: | 100Hz - +8dB 10kHz - +4dB |
Power source: | AC 110 / 220V, 50Hz |
Power consumption: | 170W |
Dimensions (W x H x D): | 450 x 135 x 295mm |
Weight: Approx. | 6.8kg |
Year: | 1978 |
