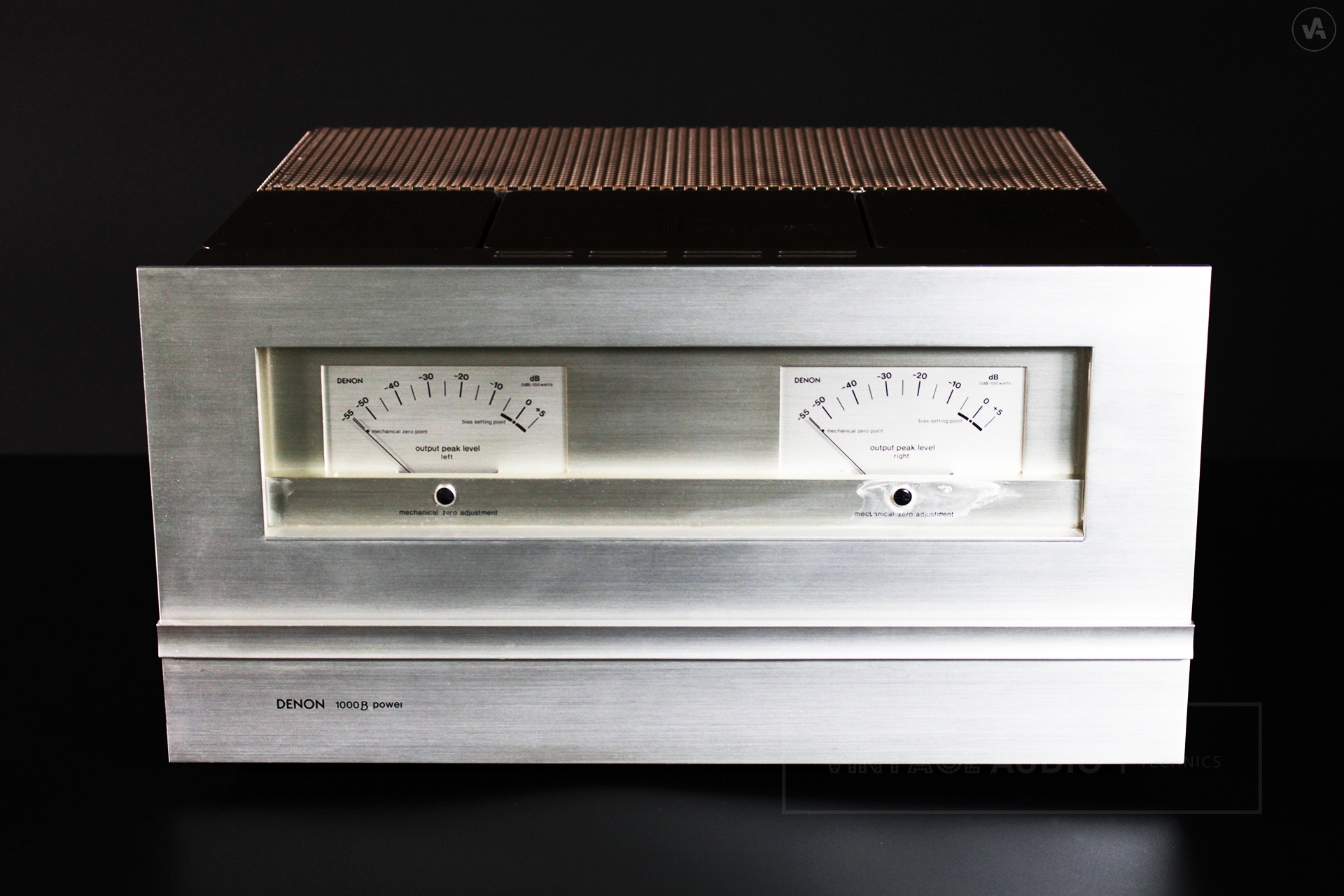

DENON POA-1000B
Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco
Type: | Tube bulb power amplifier |
Rated output (Sine wave continuous output): | 110W + 110W (1KHz, Both channel drive) 100W + 100W (20Hz to 20KHz, Both channel drive) |
Total harmonic distortion rate: | 0.2% or less (1KHz, at rated output) 0.5% or less (20Hz to 20KHz, at rated output) |
Intermodulation distortion factor: | 0.8% or less |
Output bandwidth (IHF, both channel driven): | 8Hz to 40KHz (THD 0.5%) |
Transmission frequency characteristic: | 5Hz to 150KHz (Within +0 / -0.5dB) |
Output impedance: | 0.16Ω or less |
Residual noise: | 0.1mV rms |
Input sensitivity / input impedance: | 1V rms / 250KΩ |
Filter (Low cut filter): | 18Hz (-18dB / oct.) |

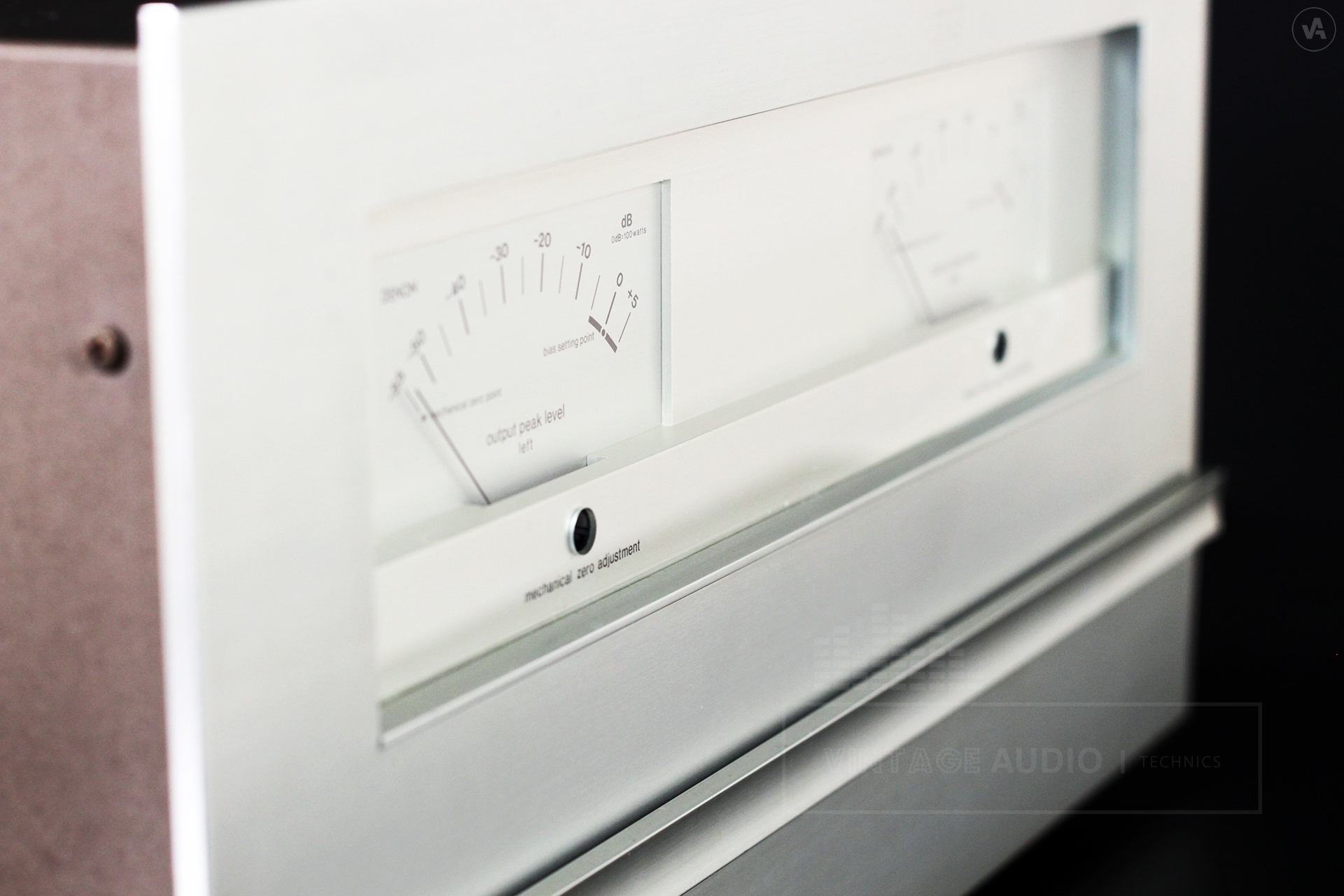

Large level meter: | Instruction range - -55dB to + 5dB (Equal interval scale from maximum output to 1mW) DC Balance - With check meter |
Power supply: | AC 100V, 50 / 60Hz |
Power consumption: | 320W |
Dimensions (W x H x D): | 410 x x217 x 386mm |
Weight: | 34kg |
Year: | 1975 |
