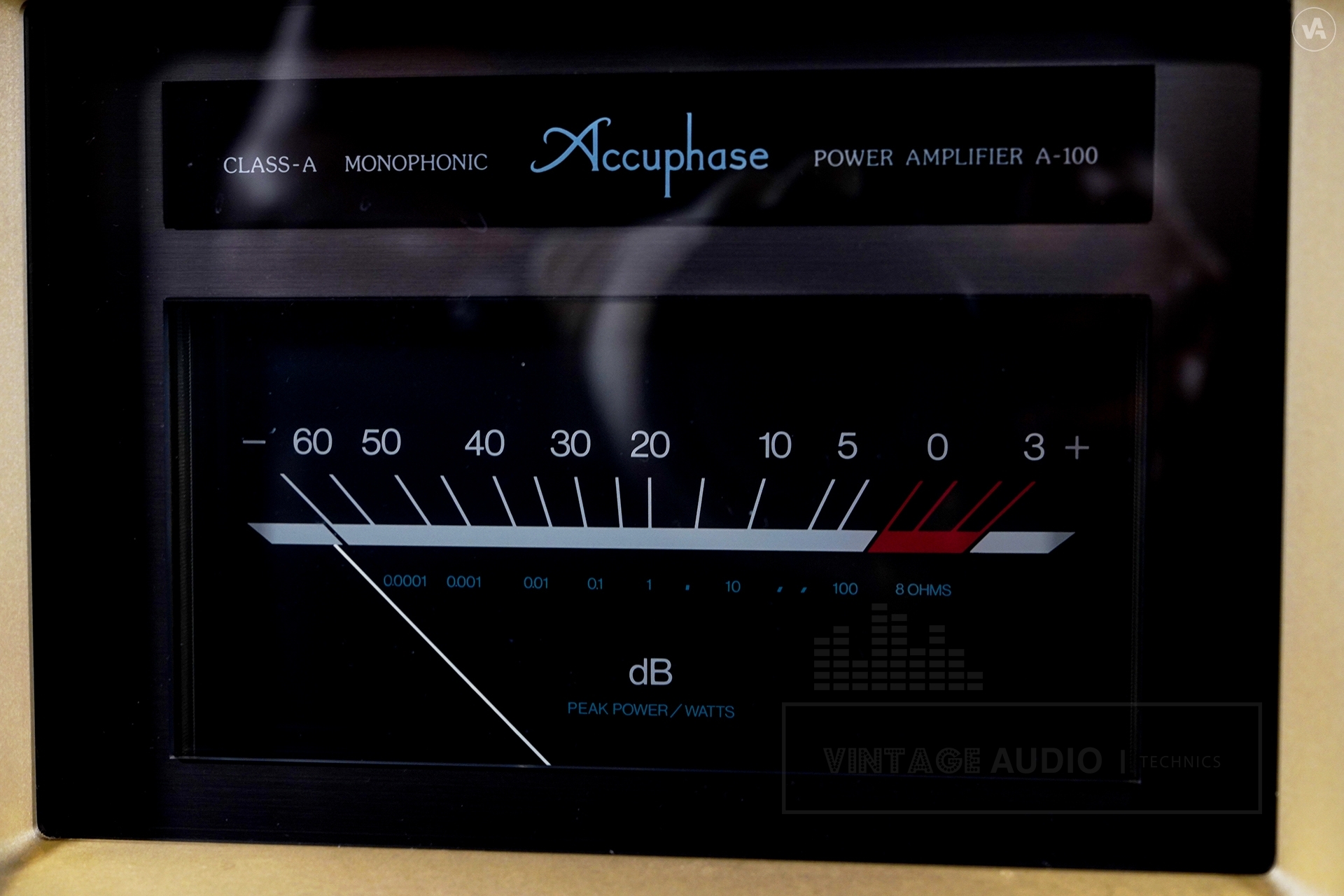

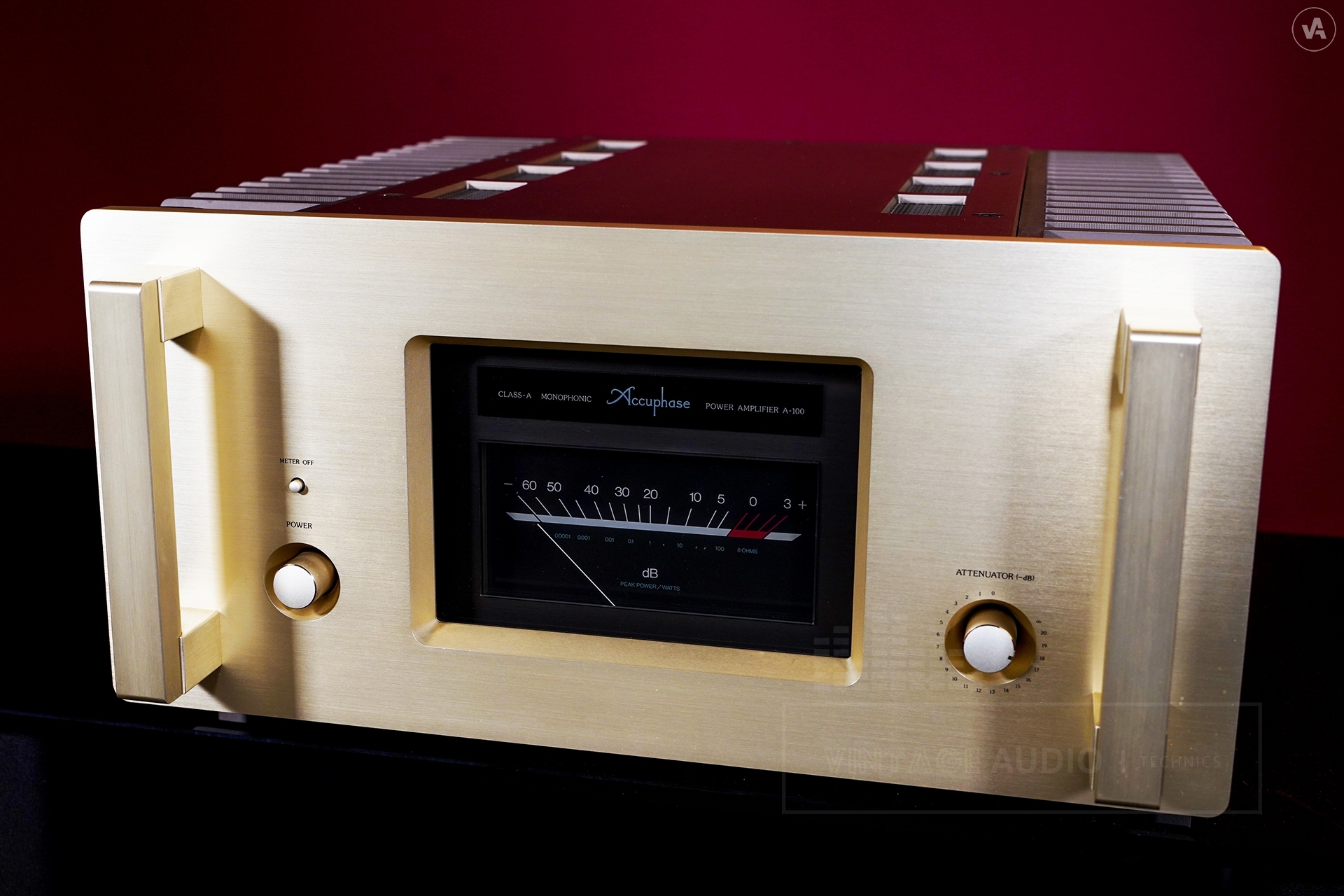

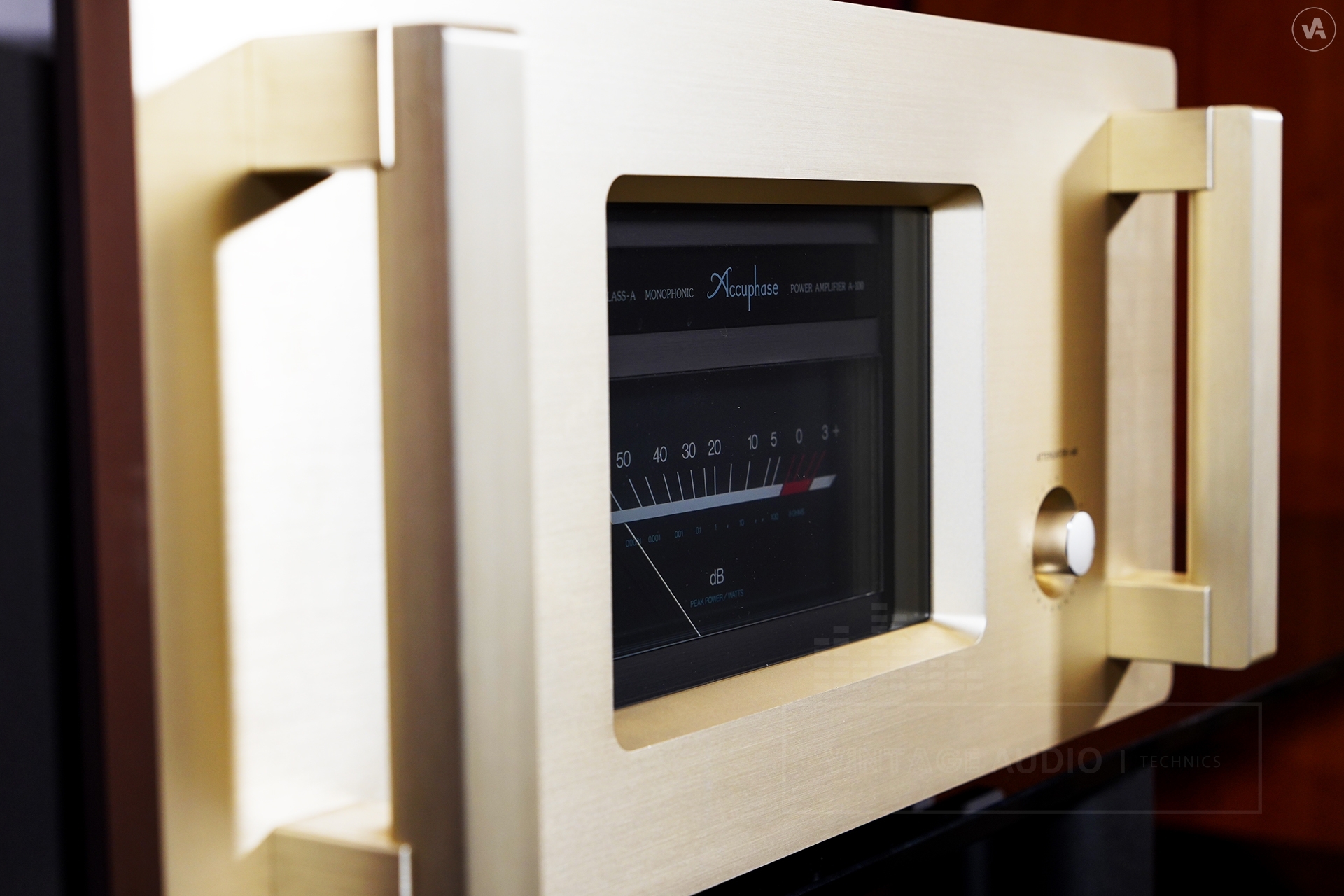

Type: | Monophonic power amplifier |
[Continuation average output] | |
2ohm load: | 400W (For 20Hz - 20kHz) |
4ohm load: | 200W (For 20Hz - 20kHz) |
8ohm load: | 100W (For 20Hz - 20kHz) |
16ohm load: | 50W (For 20Hz - 20kHz) |
[THD] | |
2ohm load: | 0.02% |
4-16ohm load: | 0.01% |
IM distortion: | 0.003% |
Frequency response: | 20Hz - 20000Hz, 0dB 0.5Hz - 150000Hz, +0 -3.0 dB 0.5Hz - 80000Hz, +0 -3.0 dB |
Gain (profit): | 28dB |
Load impedance: | 2-16ohm |
Dumping factor: | 250 (8-ohm load, 50Hz) |
Input sensitivity (8-ohm load): | At the time of a continuation average output - 1.13V At the time of 1W output - 0.12V |
[Input impedance] | |
Unbalance: | 20kohm |
Balance: | 40kohm |
S / N ratio: | 120dB |
The semiconductor used: | 16Tr, 44FET, 10IC, 44Di |
Power source: | AC 100V, 117V, 220V, 240V, 50Hz/60Hz |
Power consumption: | At the time of no inputting - 350W Electrical Appliance and Material Control Law - 480W At the time of an 8ohm load Output power - 350W |
Dimensions (W x H x D): | 475 x 240 x 553mm (handle) |
Weight: | 57kg |
Year: | 1991 |
